Name: Asus PRIME A520M-K Motherboard PC base AMD AM4 Form factor (details) Micro-ATX Motherboard chipset AMD® A520
Brand: Asus
SKU: 2344726
Availability: InStock

ASUS motherboard with a black PCB, white line patterns, multiple expansion slots and connectors. Mainboard for computer hardware.

A black computer motherboard circuit board with multiple slots, connectors, and electronic components mounted on it.

The image shows an ASUS PRIME A520M-K motherboard with various expansion slots and connectors, suitable for PC builds and upgrades.

Motherboard with multiple connection points, including USB and Ethernet ports, along with a CPU socket and RAM slots for hardware integration.

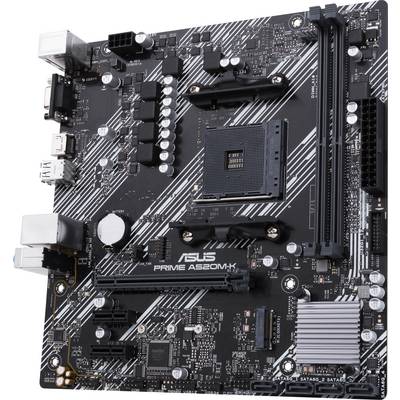

A black motherboard with white lines, multiple expansion slots and connectors. Central socket for the CPU. Model: ASUS PRIME A520M-K.

1/6

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

47 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 85.99 / piece)

€ 85.99

incl. VAT

14-day return policy included

Report legal concerns

Pre-contractual information under the EU Data Act

Highlights & Details

Asus PRIME A520M-K Motherboard

AMD processors for socket AM4
AMD®-Ryzen™ processors of the 3. Generation
2x DDR4 SDRAM slots up to 4600 MHz / max. 64 GB
Internal connections: 4x SATA III, 1x M.2
I/O Panel: 4x USB 3.0, 2x USB 2.0, HDMI™, VGA, PS/2

Technical specifications

Product type: Motherboard

Chipset: AMD® A520

: AMD AM4

Form factor: Micro-ATX

Processor/type: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7

RAM type: DDR4 RAM

Clock speed: 2133 MHz
2400 MHz
2666 MHz
2800 MHz
2933 MHz
3000 MHz
3200 MHz
3333 MHz
3400 MHz
3466 MHz
3600 MHz
3733 MHz
3866 MHz
4000 MHz
4133 MHz
4200 MHz
4266 MHz
4333 MHz
4400 MHz
4466 MHz
4600 MHz
4866 MHz
Show more

RAM / Max. upgrade: 64 GB

Interfaces: USB A (USB 3.2 1st gen)
USB A (USB 2.0)
HDMI™
VGA
PS/2
Gigabit LAN (1 Gbps)
Audio 7.1 (3.5 mm jack)

No. of DDR4 slots: 2 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x1: 2 x

No. of USB 2.0 ports: 2 x

No. of USB type A 3.0 ports: 4 x

No. of SATA III ports: 4 x

Onboard audio: 7.1

No. of PS/2 ports: 1 x

Factory colour: Multicolour

Depth: 300 mm

Height: 100 mm

Width: 300 mm

Screen size diagonal (inches): 0 inch

Weight: 5

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2344726 Asus PRIME A520M-K Motherboard PC base AMD AM4 Form factor (details) Micro-ATX Motherboard chipset AMD® A520

Description

ASUS Prime A520M-K mainboard socket AM4 (AMD Ryzen, micro-ATX, M.2, 1Gbit/s Ethernet, SATA 6Gbit/s, USB 3.2 Gen 2 type A)

This text is machine translated.

Features

AMD-AM4 socket: Ready for the AMD-Ryzen processors of the 3. Generation with and without Radeon graphics processors
comprehensive cooling: PCH cooler and fan Xpert
ultra-fast connectivity: M.2-support, 1Gbit/s-Ethernet, USB 3.2 Gen 1 Type-A
5X Protection III: Multiple hardware protection for comprehensive system security.

Scope of delivery

1 M.2 screw, I/O back cover
