Name: Asus TUF GAMING B550-PLUS Motherboard PC base AMD AM4 Form factor (details) ATX Motherboard chipset AMD® B550
Brand: Asus
SKU: 2272662
Availability: SoldOut

An ASUS TUF Gaming B550-Plus motherboard next to its packaging. The motherboard features multiple PCIe slots and heatsinks.

Computer motherboard with multiple ports, expansion slots, and heatsinks, suitable for gaming and high-performance applications.

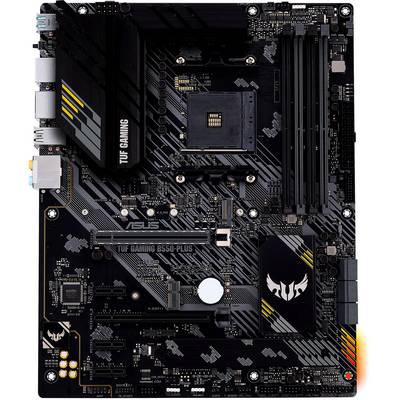

'ASUS TUF GAMING B550-PLUS' Motherboard in Black with multiple expansion slots and connections. Suitable for high-performance gaming PCs.

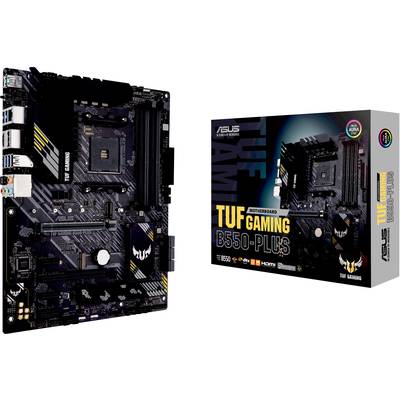

ASUS TUF Gaming B550-PLUS motherboard and packaging. Details of the motherboard are visible, including connections and design features.

A black computer motherboard labelled 'TUF Gaming'. It has multiple expansion slots and connectors for computer components.

'ASUS TUF Gaming B550-Plus' Motherboard with multiple ports and slots, suitable for high-performance gaming PCs.

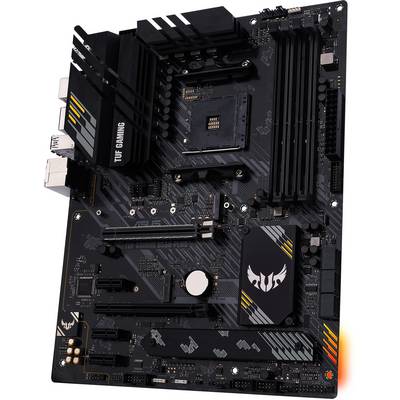

TUF Gaming motherboard, black with yellow accents, multiple expansion slots and connectors, robust design for gaming PC build.

Motherboard for gaming computer with multiple PCIe slots and ports, designated as 'TUF Gaming B550 Plus', suitable for AMD processors.

'ASUS TUF Gaming B550-Plus' Motherboard with AM4 socket, PCIe slots, USB and audio connections. Black design with yellow accents.

Black ASUS TUF Gaming B550-Plus motherboard with multiple PCIe slots, USB ports and a distinctive heatsink design.

Asus TUF Gaming B550-Plus motherboard next to its packaging. Supports AMD processors, PCIe 4.0, Aura RGB lighting.

A black gaming motherboard with multiple connectors, RAM slots, and a distinctive heatsink design.

1/14

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

14-day return policy included

Report legal concerns

Pre-contractual information under the EU Data Act

Highlights & Details

Asus TUF GAMING B550-PLUS Motherboard

AMD processors for socket AM4
Supports AMD Ryzen™ processors der3. Gen
2x DDR4 slots up to 5100 (O.C.) MHz / max. 64 GB
Internal connections: 6x SATA III, 2x M.2
I/O Panel: USB-C™, USB 3.1, 4x USB 3.0, 2x USB, HDMI™, DisplayPort

Technical specifications

Product type: Motherboard

Chipset: AMD® B550

: AMD AM4

Form factor: ATX

Processor/type: AMD Ryzen™ (unterstützt 1., 2., 3., 4., 5. Generation)

RAM type: DDR4 RAM

Clock speed: 2133 MHz
2400 MHz
2666 MHz
2800 MHz
3000 MHz
3200 MHz
3333 MHz
3466 MHz
3600 MHz
3733 MHz
3866 MHz
4000 MHz
4133 MHz
4266 MHz
4400 MHz
4600 MHz
Show more

RAM / Max. upgrade: 128 GB

Interfaces: USB C®
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
HDMI™
DisplayPort
Audio 7.1 (3.5 mm jack)
S/PDIF (TOSLINK)
Gigabit LAN (1 Gbps)

No. of DDR4 slots: 4 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x1: 3 x

No. of USB 2.0 ports: 2 x

No. of USB type A 3.0 ports: 4 x

No. of USB 3.2 2nd Gen (USB 3.1): 2 x

No. of USB 3.0 ports: 1 x

No. of SATA III ports: 6 x

Onboard audio: 7.1 HD
Optical S/PDIF

Depth: 300 mm

Height: 100 mm

Width: 300 mm

Screen size diagonal (inches): 0 inch

Connectors: HDMI, Displayport

Weight: 5

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2272662 Asus TUF GAMING B550-PLUS Motherboard PC base AMD AM4 Form factor (details) ATX Motherboard chipset AMD® B550

Description

ASUS TUF Gaming B550-Plus Main board Socket AM4 (ATX, Ryzen, PCIe 4.0, 2x M.2, 2Gbit/s Ethernet, SATA 6Gbit/s, USB 3.2 Gen 2 Type-A/C, Aura Sync)

This text is machine translated.

Features

AMD-AM4 socket: Ready for AMD-Ryzen processors of the 3. 8
+2 DrMOS performance levels, ProCool port, Military TUF components and Digi+ VRM
for maximum durability Comprehensive cooling: VRM cooler, fanless PCH cooler, M.2 cooler, hybrid fan header and Fan Xpert 2+ utility
Next-Gen connectivity: Support for PCIe 4.0 M.2, USB 3.2 Gen 2 Type A and USB Type C
gaming technology for
Realtek F S1200A-Codec: Developed for Realtek F-LAN and Turboguard Ethernet: Undistorted audio quality with an unprecedented signal-to-noise ratio (SNR) of 108dB for stereo output and 103dB SNR for line-in
microphone with AI noise cancelling: Provides crystal-clear communication in the game
