AXAGON EEM2-SG2 RAW BOX M.2 SSD enclosure USB C® (USB 3.2 2nd gen) 10 GBit/s M.2 PCIe NVMe 2242, 2260, 2280 EEM2-SG2

A rectangular, silver hard drive enclosure with the inscription 'AXAGON M.2 SATA' shows a modern design with a USB-C port.

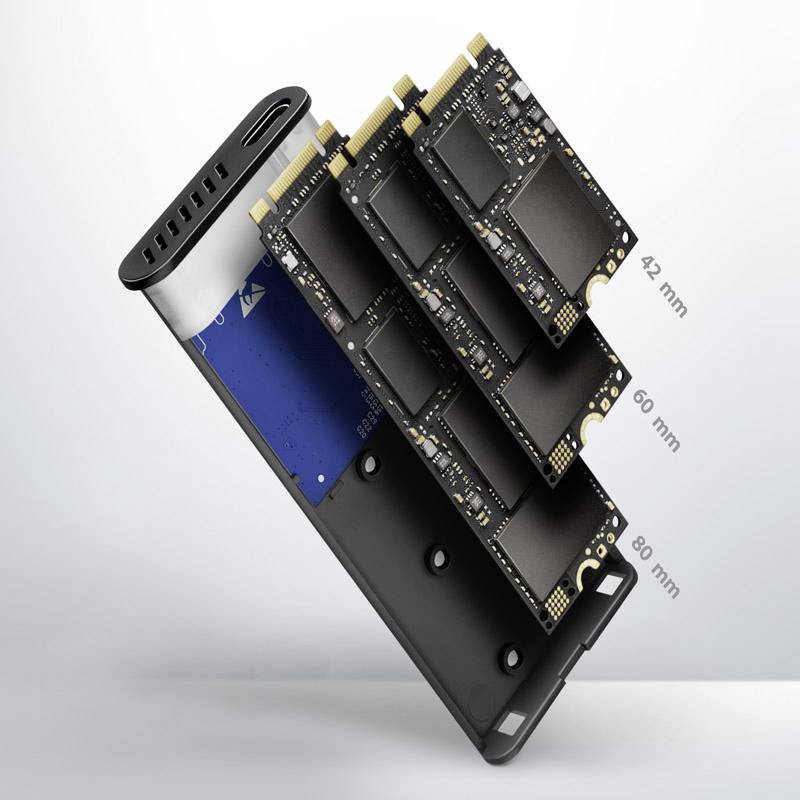

A chassis with multiple extracted M.2 SSDs of different lengths (42 mm, 60 mm, 80 mm), demonstrating compatibility and configuration.

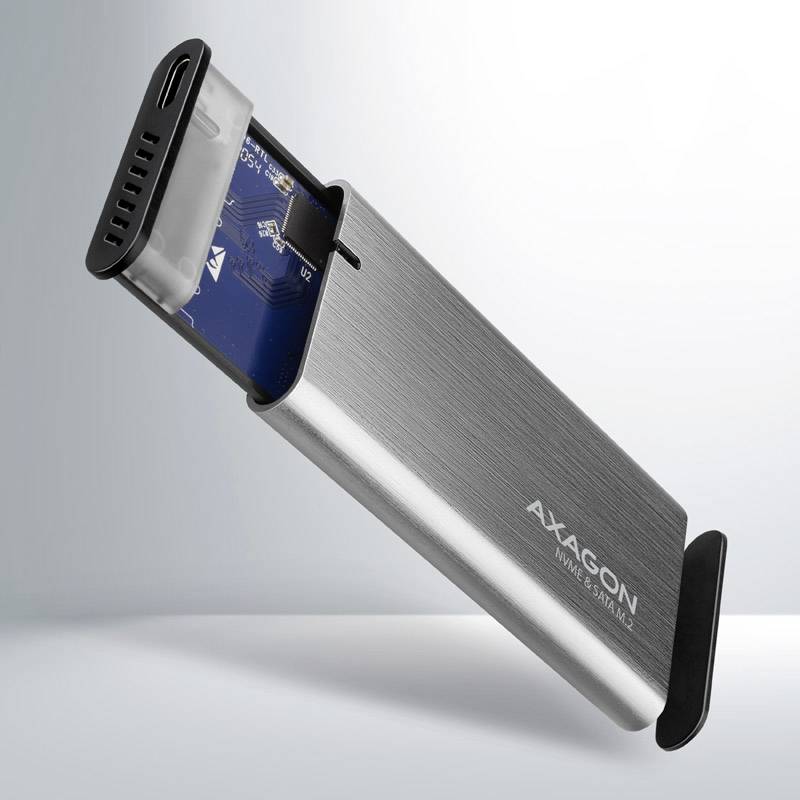

'AXAGON' brand metal enclosures for M.2 SSDs, partially opened to reveal the electronic underside.
The packaging of an 'AXAGON Raw Box' SSD enclosure, supporting USB-C 10Gbps, compatible with NVMe & SATA M.2 SSDs.

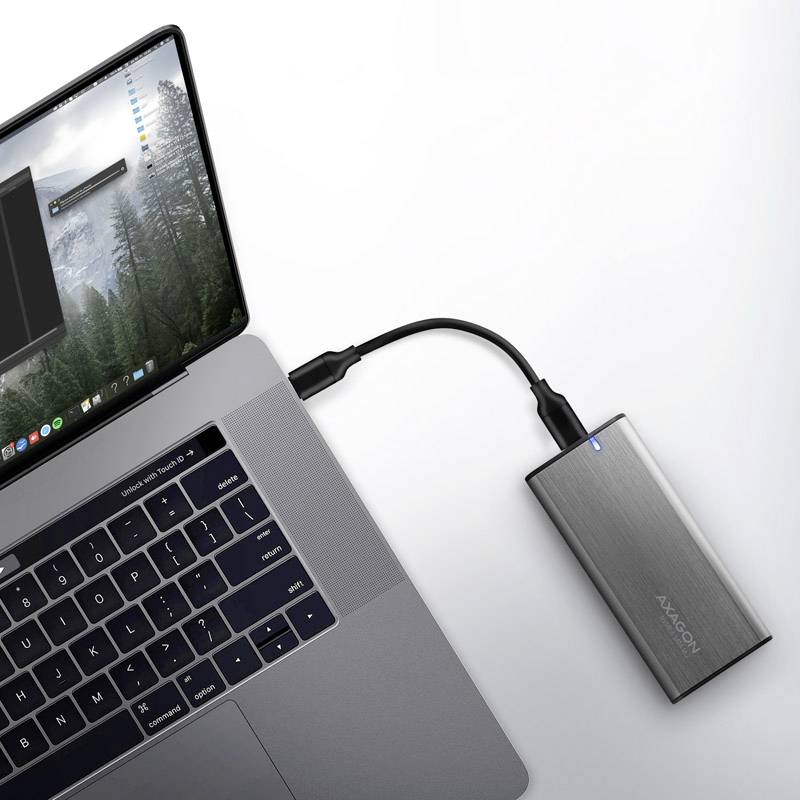

A laptop with an attached external silver hard drive enclosure connected via a USB cable, operational status indicated by a blue light.
1/5
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
7 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 28.99 / piece)
€ 28.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 7 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

AXAGON EEM2-SG2 RAW BOX - External housing for M.2 SSDs USB-C 3.2 Gen 2 - Silver

  • Fast external M.2 casing
  • With USB 3.2 connection
  • For M.2-NVMe SSD
  • Made of aluminium
  • Heatsink included

Technical specifications

  • USB 3.2 2nd Gen, USB 2.0 compatibility
  • M.2 interface: M-Key, B+M-Key; PCIe 3.1a with NVMe 1.3; Supported functions: TRIM, USB attached storage, bootable, OTG; Average transfer speed: 1 GByte/s due to the USB interface
Product type

M.2 SSD enclosure

HDD connection

M.2 PCIe NVMe

Compatible with

2242

2260

2280

Supported HDD size (max.)

8 TB

Interfaces

USB C® (USB 3.2 2nd gen)

Transfer rate

10 GBit/s

Power supply (LOV)

via USB

Material

Aluminium

Plastic

Factory colour

Silver

Black

Width

41 mm

Height

10 mm

Depth

94 mm

Dim

(W x H x D) 41 x 10 x 94 mm

Weight

35 g

Wireless charging

Yes

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3001030 AXAGON EEM2-SG2 RAW BOX M.2 SSD enclosure USB C® (USB 3.2 2nd gen) 10 GBit/s M.2 PCIe NVMe 2242, 2260, 2280 EEM2-SG2

Description

For the fast M.2-NVMe-SSDs, AXAGON has this external aluminum housing that can be connected to a PC or laptop via a fast USB-3.2 port with an average transfer speed of 10 GB/s. In the EEM2-SG2, an up to 2280 large M.2-NVMe SSD can be attached to the M-Key inside. There is no memory limit. The enclosed heatsink reduces the operating temperature of the installed M.2. The waste heat is also dissipated by means of the extensively ribbed case made of aluminum. A USB-C connector is located on the housing, a USB-A connector cable on the PC is provided.

This text is machine translated.

Scope of delivery

  • 1X AXAGON EEM2-SG2
  • 1x cable USB-C to USB-A (200 mm)
  • 1x USB-A - USB-C adapter
  • 1x heat conduction pads
  • Fitting Material
  • Screwdrivers

System requirements

  • Compatible with Windows, Linux, MacOS, Android
