AXAGON USB 2.0 Adapter cable [1x RS232 plug - 1x USB 2.0] ADS-1PSN 1.5 m
EAN:
Part number:
Item no:
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.

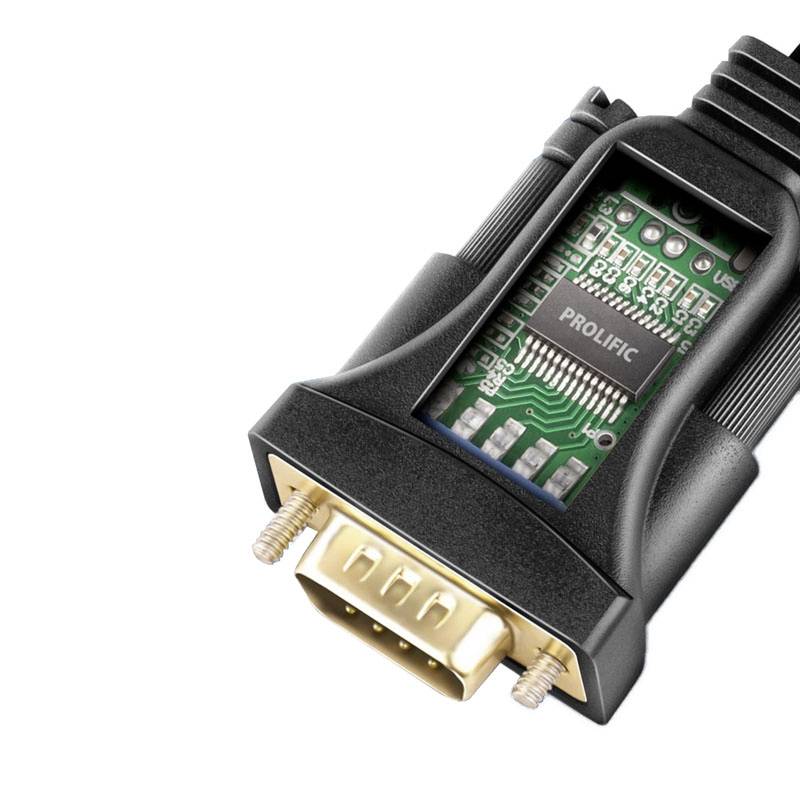

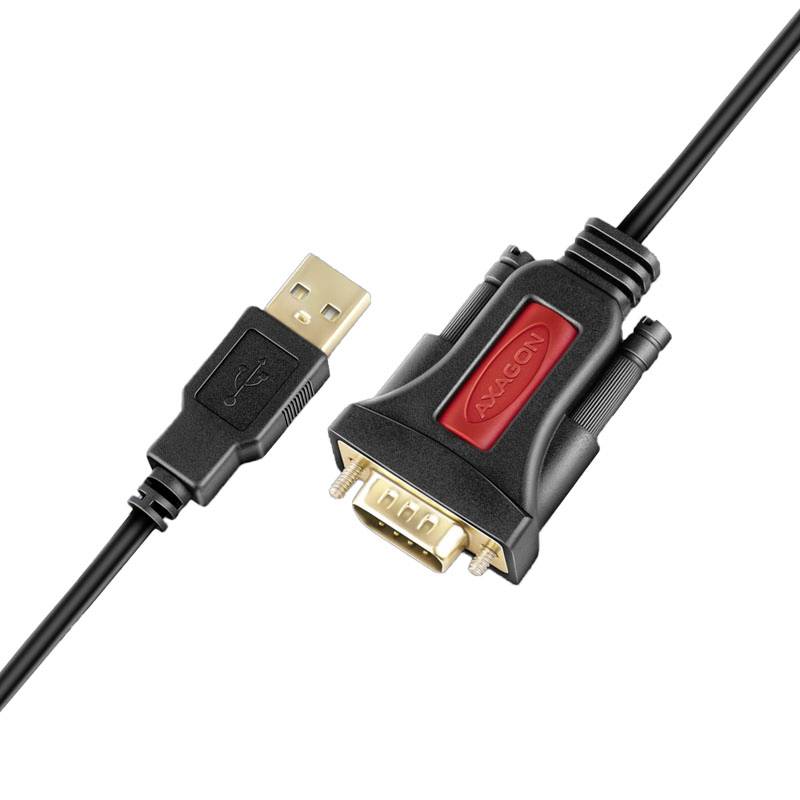

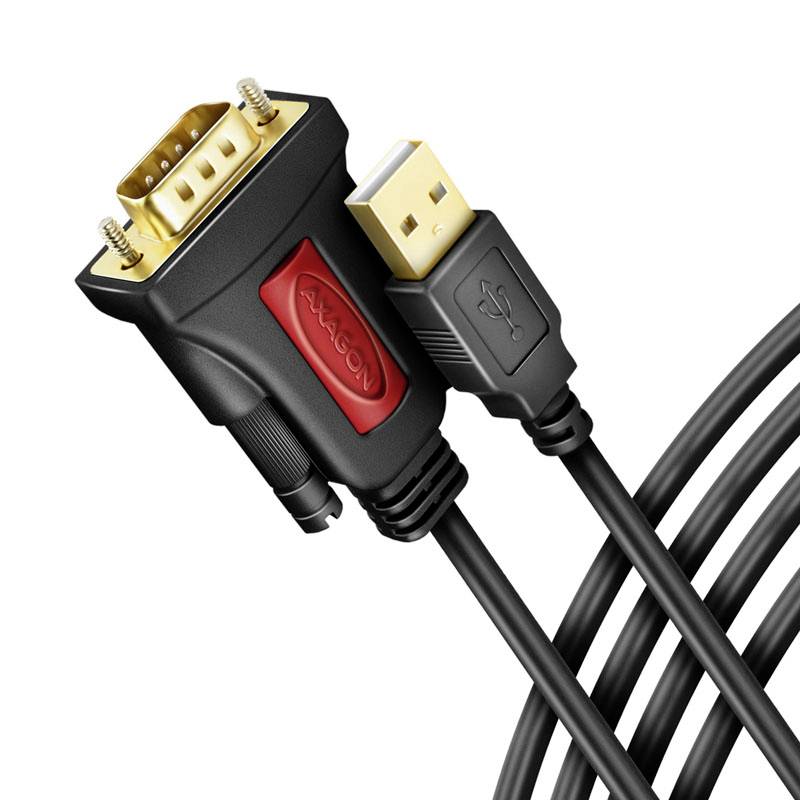

AXAGON ADS-1PSN adapter cable, RS-232 COM port on USB 2.0 - PL2303GT chip
Highlights & Details
- Adapter cable USB 2.0 to RS 232 serial port
- Compatible up to 16C950 UART
- Automatic driver installation
- Largely configurable
Technical specifications
- Dimensions (COM plug) 35 x 56 x 17 mm (W x H x D)
- Weight (with cable): 83 g
- Cable size 5 mm
- Connections: 1x DB9 RS-232 serial connector, 1x USB 2.0 (type A, max. 480 Mbit/s)
- Prolific PL2303GT chipset
- 16C550, 16C650, 16C750, 16C850, 16C950 UART
- Product type
USB 2.0 Adapter cable
- Connection type
Series
USB 2.0
- No. of A connectors
1 x
- Type A
RS232 plug
- No. of B connections
1 x
- Type B
USB 2.0
- Cable length
1.5 m
- Factory colour
Black
Red
- Connector version
straight
- Cable use
USB 2.0
- Version
Adapter cable
- Range of use
USB adapters
- Cable design
Round
- Transfer rate (max.)
480 MBit/s
- Video transmission possible
No
Cable
- UKCA
not relevant
Description
If you want to effortlessly connect a device with a serial RS-232 COM port to a USB port of your computer, you can use the AXAGON ADS-1PSN thanks to the integrated PL2303GT chip from Prolific supports all the common UART protocols from 16C550 to 16C950 with an adjustable transfer rate of 75 bit/s to 1,000 kbit/s.
In addition to flow control, word length, parity, or the COM port number from 1 to 256, the FIFO buffers can also be customized. The drivers required for this are installed automatically.
