Axing Cable TV distributor 2-way 5 - 1218 MHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
3
5% = € 0.21
€ 4.40
5
6% = € 0.29
€ 4.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
Only 5 Piece(s) available

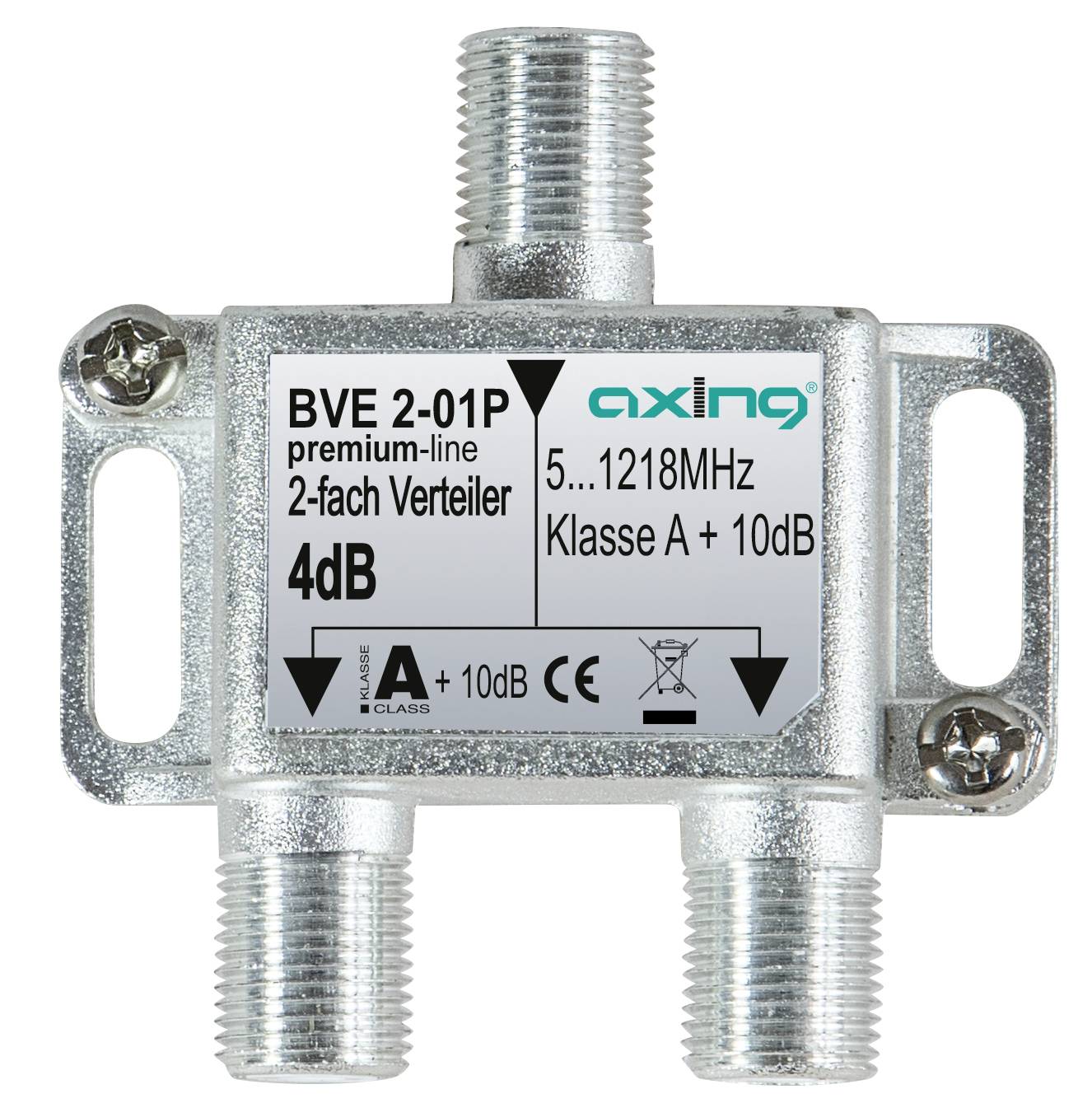

Axing BVE 2-01P stainless steel cable splitter
Highlights & Details
- Cable splitter
- 5 - 1218 MHz
- female/female.
- F plug
- Stainless steel
Technical specifications
- Product type
Cable TV distributor
- Frequency range
5 - 1218 MHz
- Type
2-way
- Dim
(W x H x D) 55 x 67 x 30 mm
- Width
55 mm
- Height
67 mm
- Factory colour
Stainless steel
- Depth
30 mm
- Type
Cable splitter
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Insertion loss
10 dB
- Frequency range
5 - 1218 MHz
- Number of connectors
3
Documents & Downloads
Datasheet
Datasheet 3779548 Axing Cable TV distributor 2-way 5 - 1218 MHz
User & Safety Instructions
User & Safety Instructions 3779548 Axing Cable TV distributor 2-way 5 - 1218 MHz
Description
This latest-generation distributor is characterized by a high level of shielding and an extended frequency range of 5 to 1218 MHz. The distributor is thus absolutely future-proof and the right choice for larger distributions of cable television or antenna systems with DVB-T2 HD. The distributor is multimedia enabled and reverse channel enabled, so can be used for Internet supply by a cable network operator. Also suitable for future extension of the cable networks for even faster Internet. Inputs and outputs are hum-decoupled. Thanks to high return loss and high intermodulation resistance, trouble-free operation is guaranteed even in complex distributions. The shielding rating exceeds class A by +10 (according to EN 50083-2). All connections are designed for F plugs.
