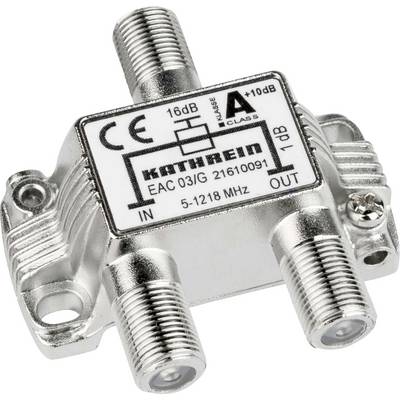

Kathrein EAC 03/G Cable TV splitter 1-way 5 - 1218 MHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
3
4% = € 0.23
€ 5.22
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
Kathrein EAC 03/G Cable TV splitter
Highlights & Details
- Impedance: 75 Ω
- Frequency range: 5-1218 MHz (i.e. Return path and UHF-compatible) solid casing made of tin-plated zinc die-cast with connection for potential equalization
- Separator capacitors at inputs and outputs
- Complies with EN 60728-11 and EN 50083-2
- Connections: F-connectors
- For indoor mounting
- Class A (+10 dB) in accordance with DIN 50083-2 Vodafone/KDG approval
- This text is machine translated.
Technical specifications
- Product type
Cable TV splitter
- Frequency range
5 - 1218 MHz
- Type
1-way
- SAT damping
16 dB
- Dim
(L x W x H) 52.5 x 51.6 x 23.5 mm
- No. of inputs
1 x
- Width
51.6 mm
- Height
23.5 mm
- Length
52.5 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2308340 Kathrein EAC 03/G Cable TV splitter 1-way 5 - 1218 MHz
Description
Features
- 1fach-F tap-off 16 dB
- 5-1218 MHz
- F connector
- Parting capacitors at inputs and outputs
- Shielding class A according to CENELEC EN 50083-2
- Vodafone/KGD release.
