Axing Cable TV distributor 6-way 5 - 1218 MHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Only 2 Piece(s) available

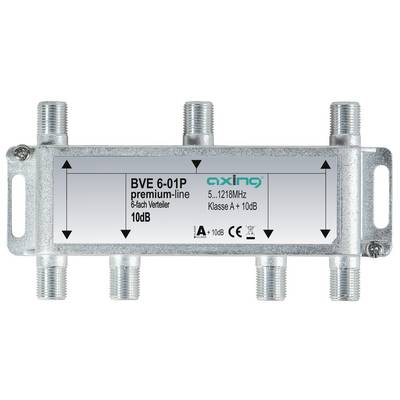

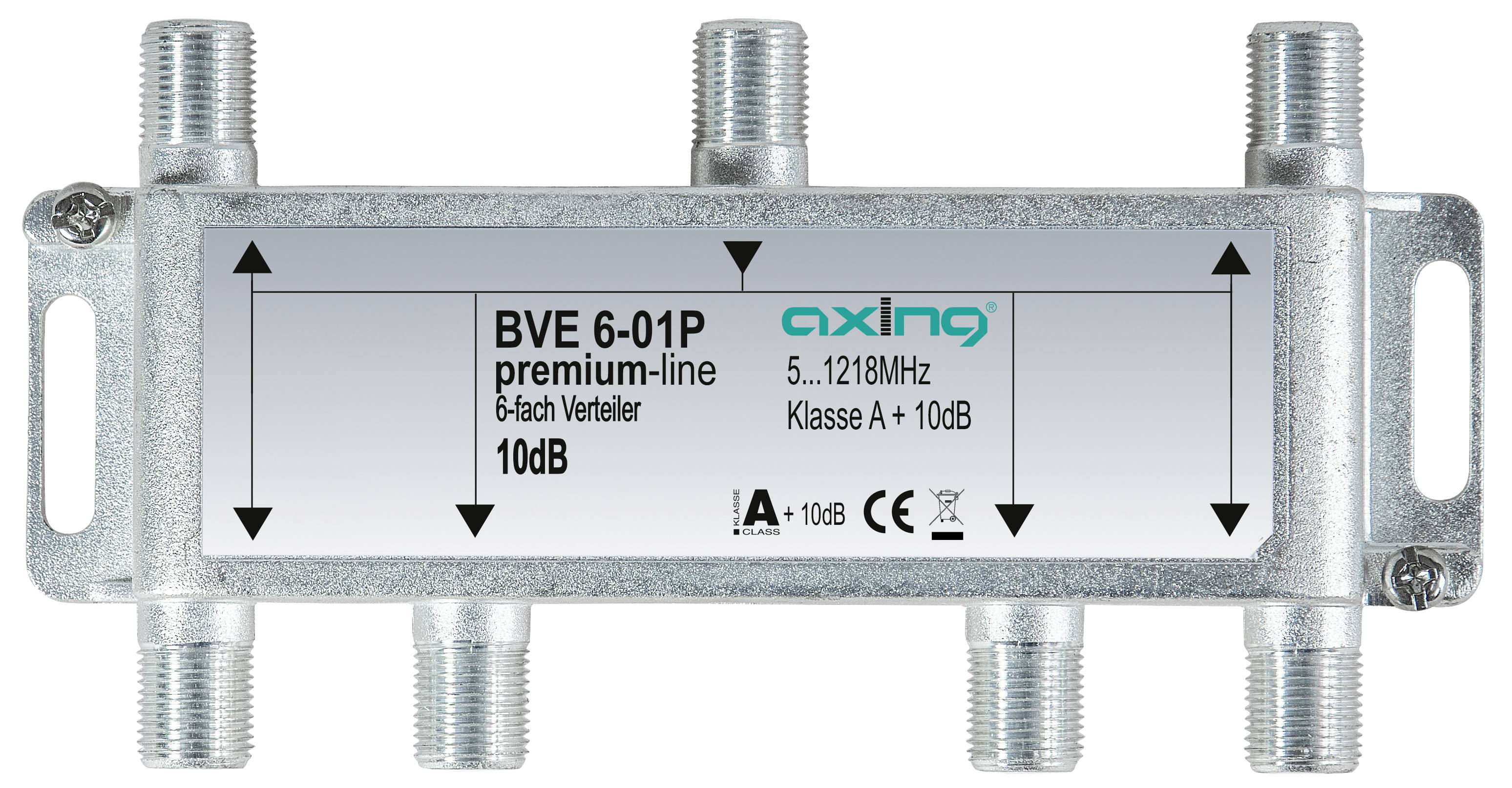

Axing BVE00601P1 Cable splitter stainless steel
Highlights & Details
- Cable splitter
- 5 - 1218 MHz
- female/female.
- F plug
- Stainless steel
Technical specifications
- Product type
Cable TV distributor
- Frequency range
5 - 1218 MHz
- Type
6-way
- Dim
(W x H x D) 142 x 64 x 32 mm
- Width
142 mm
- Height
64 mm
- Factory colour
Stainless steel
- Depth
32 mm
- Type
Cable splitter
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Frequency range
5 - 1218 MHz
- Number of connectors
6
Documents & Downloads
Datasheet
Datasheet 3779546 Axing Cable TV distributor 6-way 5 - 1218 MHz
User & Safety Instructions
User & Safety Instructions 3779546 Axing Cable TV distributor 6-way 5 - 1218 MHz
Description
- High return loss
- Multimedia-compatible
- Inputs and outputs are hum-isolated
- High intermodulation resistance
- Shielding measure of class A +10 dB, in accordance with EN 50083-2
- Return loss and decoupling in accordance with VFKD TS 220
This text is machine translated.
- Multimedia-compatible
- Inputs and outputs are hum-isolated
- High intermodulation resistance
- Shielding measure of class A +10 dB, in accordance with EN 50083-2
- Return loss and decoupling in accordance with VFKD TS 220
This text is machine translated.
Features
- High return loss
- Multimedia-enabled
- Interference suppressed inputs and outputs
- High intermodulation resistance
- Shielding measurement class A +10 dB, according to EN 50083-2
- Return loss and decoupling in accordance with VFKD TS 220
