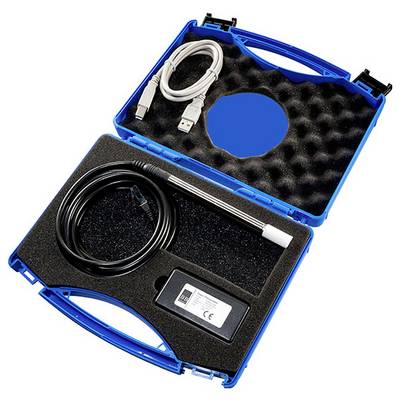

B + B Thermo-Technik Hytelog-USB Stainless Steel Humidity/temperature Sensor For USB USB
EAN:
Part number:
Item no:
2 Piece(s)
Sales and shipping:
Number
Total (€ 268.07 / piece)
€
Only 2 Piece(s) available
Highlights & Details
B + B Thermo-Technik Hytelog-USB Stainless Steel Humidity/temperature Sensor For USB USB
- Combined temperature and humidity measurement
- Resolution 0.01% rH/0.01°C
- Accuracy 2% rH/0.5 °C typically (23°C)
- USB interface
- Inclusive of windows®-software
Technical specifications
- Resolution: 0.01 % rF/0.01 °C
- Type
Hytelog-USB
- Operating current
25 mA
- Reading range (min.)
0 RH
- Reading range (max.)
100 RH
- Reading range
0 - 100 RH
- Accuracy ±
2 RH
- Connector
USB
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
USB
- Accuracy
±2 % rH/ ±0.5 °K
- Type
Humidity/temperature sensor, stainless steel
- Temperature range
-40 - +80 °C
- Reading range
0 - 100 % rF
- Operating voltage
through USB interface
- Product type
Temperature and humidity metering system
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 183018 B + B Thermo-Technik Hytelog-USB Stainless Steel Humidity/temperature Sensor For USB USB
Description
Combined humidity/temperature measurement. The WINDOWS® software supplied with the module turns your PC into a fully-fledged professional humidity measurement system, which in addition to displaying the measurements also calculates the dew point, moisture content, saturation pressure, water-vapour partial pressure and enthalpy. The measurements in any time period are recorded on the hard disk and can be analysed with EXCELTM, for example. Technical areas of application: Monitoring of storage rooms, greenhouses, in the food industry, quality assurance, humidity and temperature measurement in buildings, air-conditioning systems, meteorology, humidity measuring systems for custom projects under Windows® or LinuxTM.
Hints
The sensor is protected by a water-repellent PE sintered cap. The sensor comes calibrated. The current is supplied via USB port The optional software PCLOG order no. 18 30 30 or ProfiLab EXPERT 3.0 order no. 18 30 44 are realisable in connection with the USB relay card order no. 15 65 32 extensively supervision and regulation functions. An USB connecting cable (order no. 15 65 86) and 12 V power supply unit (part No. 15 64 92) are needed to operate the relay card.
