B + B Thermo-Technik Hytelog-RS232 Stainless Steel Humidity/temperature Detector For RS232 Module Stainless steel housin
EAN:
Part number:
Item no:
Number
Total (€ 239.50 / piece)
€
Only 2 Piece(s) available
Highlights & Details

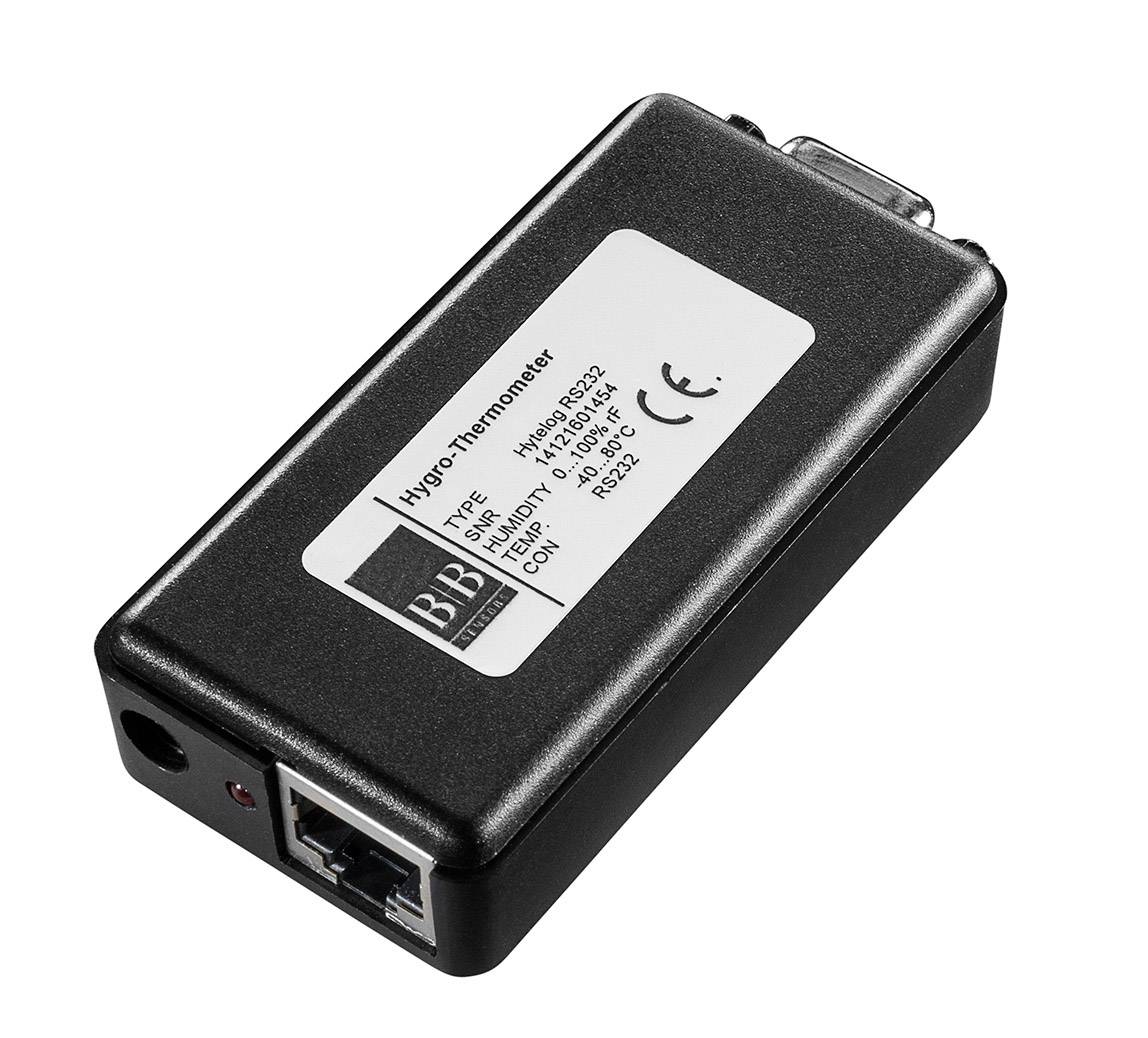

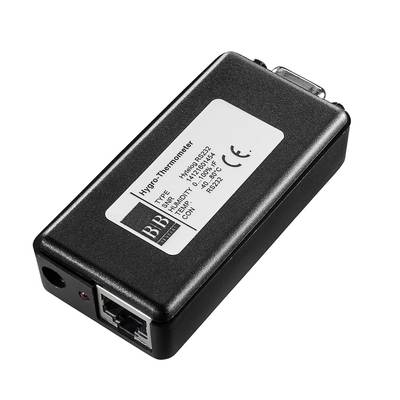

B + B Thermo-Technik Hytelog-RS232 Stainless Steel Humidity/temperature Detector For RS232 Module Stainless steel housing
- Combined temperature and humidity measurement
- Resolution 0.01% rH/0.01°C
- Accuracy 2% rH/0.5 °C typically (23°C)
- RS 232 serial interface
- Inclusive of windows®-software
Technical specifications
- Resolution 0.01% rH/0.01°C
- Design: RS232 (4800 BD8N1)
- Type
Hytelog-RS232
- Operating voltage
9 V
- Operating voltage
- Operating current
25 mA
- Reading range (min.)
0 RH
- Reading range (max.)
100 RH
- Reading range
0 - 100 RH
- Accuracy ±
2 RH
- Connector
RS232
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Content
1 pc(s)
- Dim
- RoHS-compliant
Yes
- Type
Stainless steel housing
- Accuracy
±2 % rH/ ±0.5 °K
- Current consumption
9 V
- Temperature range
-40 - +80 °C
- Product type
Temperature and humidity metering system
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 183017 B + B Thermo-Technik Hytelog-RS232 Stainless Steel Humidity/temperature Detector For RS232 Module Stainless steel housin
Conformity certificate
Conformity certificate 183017 B + B Thermo-Technik Hytelog-RS232 Stainless Steel Humidity/temperature Detector For RS232 Module Stainless steel housin
Description
Combined humidity-/ temperature measurement. The WINDOWS® software supplied with the module turns your PC into a fully-fledged professional humidity measurement system, which in addition to displaying the measurements also calculates the dew point, moisture content, saturation pressure, water vapour partial pressure and enthalpy. The measurements in any time period are recorded on the hard disk and can be analysed with EXCELTM, for example. Technical areas of application: Monitoring of storage rooms, greenhouses, in the food industry, quality assurance, humidity and temperature measurement in buildings, air-conditioning systems, meteorology, humidity measuring systems for custom projects under Windows® or LinuxTM.
Hints
The sensor is protected by a water-repellent PE sintered cap. The sensor comes calibrated. The power is with the 9-V power supply order no. 18 41 25. Extensive monitoring and control functions can be implemented with the optional PCLOG (order no. 18 30 30) or ProfiLab EXPERT 3.0 order no. 18 30 44 software in connection with a USB relay card order no. 15 65 32. An USB connecting cable (order no. 15 65 86) and 12 V power supply unit (part No. 15 64 92) are needed to operate the relay card.
