BAAS Pin AMP-Superseal 1.5mm Series Total number of pins 20 ES19 1 pc(s) Piece

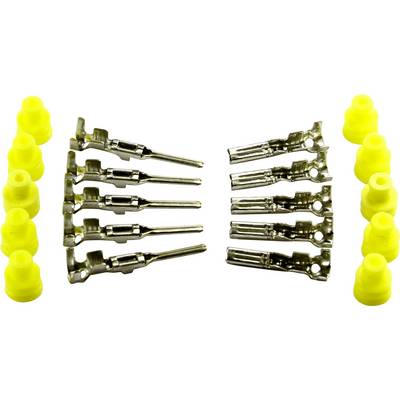

Yellow connection caps and silver clamps. Ten clamps in two rows, caps symmetrically arranged along the outer sides.
Product type
Pin
Connector type
Socket
Pin
No. of rows
1
Series
AMP-Superseal 1.5mm Series
Total number of pins
20
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
95 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 6.49 / piece)
€ 6.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

ES-AMP-SUPERSEAL Replacement Contacts Set 20teilig

  • Content: 1 pc(s)
  • No. of rows: 1
  • Total number of pins: 20

Technical specifications

Packaging type

Piece

Product type

Pin

Connector type

Socket

Pin

No. of rows

1

Connector system

automotive

Series

AMP-Superseal 1.5mm Series

Pins per row

20

Total number of pins

20

Pin Ø

1.5 mm

Pin shape

Rectangular

Nominal current

14 A

Nominal current - rounded value

14 A

Content

1 pc(s)

Connection

Type C CEE 7/16 plug 1.5 mm

Crimp

Case material

Polyamide

Manufacturer part #

ES19

Factory colour

Yellow

Metal

Industrial packaging

No

Insulation material

Polyamide

Contact material

Copper alloy

Nominal voltage

24 V DC

max. cross section

1.5 mm²

Min. cross section

0.75 mm²

Max. temperature

+125 °C

Min. temperature

-40 °C

Type

ES-AMP-SUPERSEAL Ersatzkontakte Set

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2355518 BAAS Pin AMP-Superseal 1.5mm Series Total number of pins 20 ES19 1 pc(s) Piece

Description

Connectors for machine and vehicle construction, where water resistance and resistance to ozone, salts, petrol, diesel, brake fluid and engine oils are important. All connectors meet the standards according to IEC 529 and DIN 40050 IP 67

This text is machine translated.

Features

  • Replacement contacts and insulators
  • This text is machine translated.

Scope of delivery

  • 5 replacement pins
  • 5 spare sockets
  • 10 insulators
