Buy Basetech LD-12-12 LED transformer Constant voltage 12 W 1 A Approved for use on furniture, Overvoltage, Suitable for fla

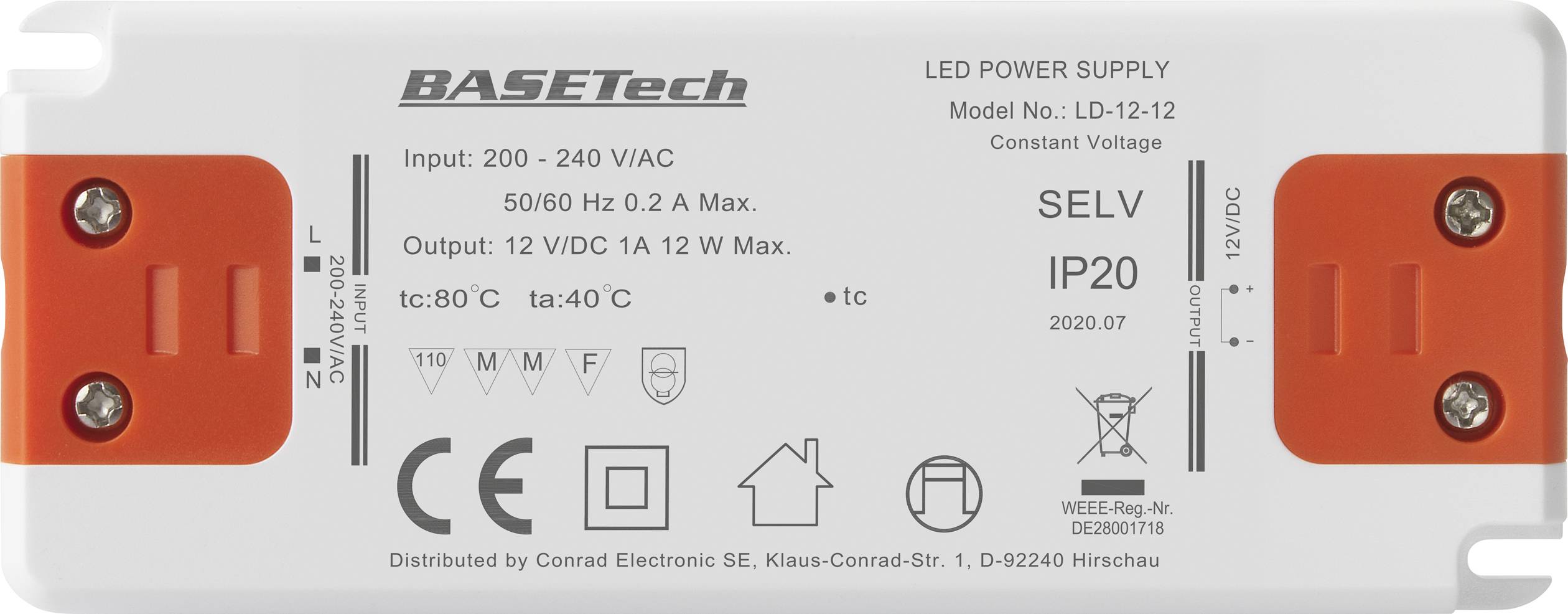

A rectangular LED power supply from BASETech with model number LD-12-12. It has inputs of 200–240 V AC and outputs of 12 V DC, 1 A, 12 W.

LED Power Supply with Specifications: Input 200-240V AC, Output 12V DC, 1A. Slim, rectangular design, suitable for LED applications.

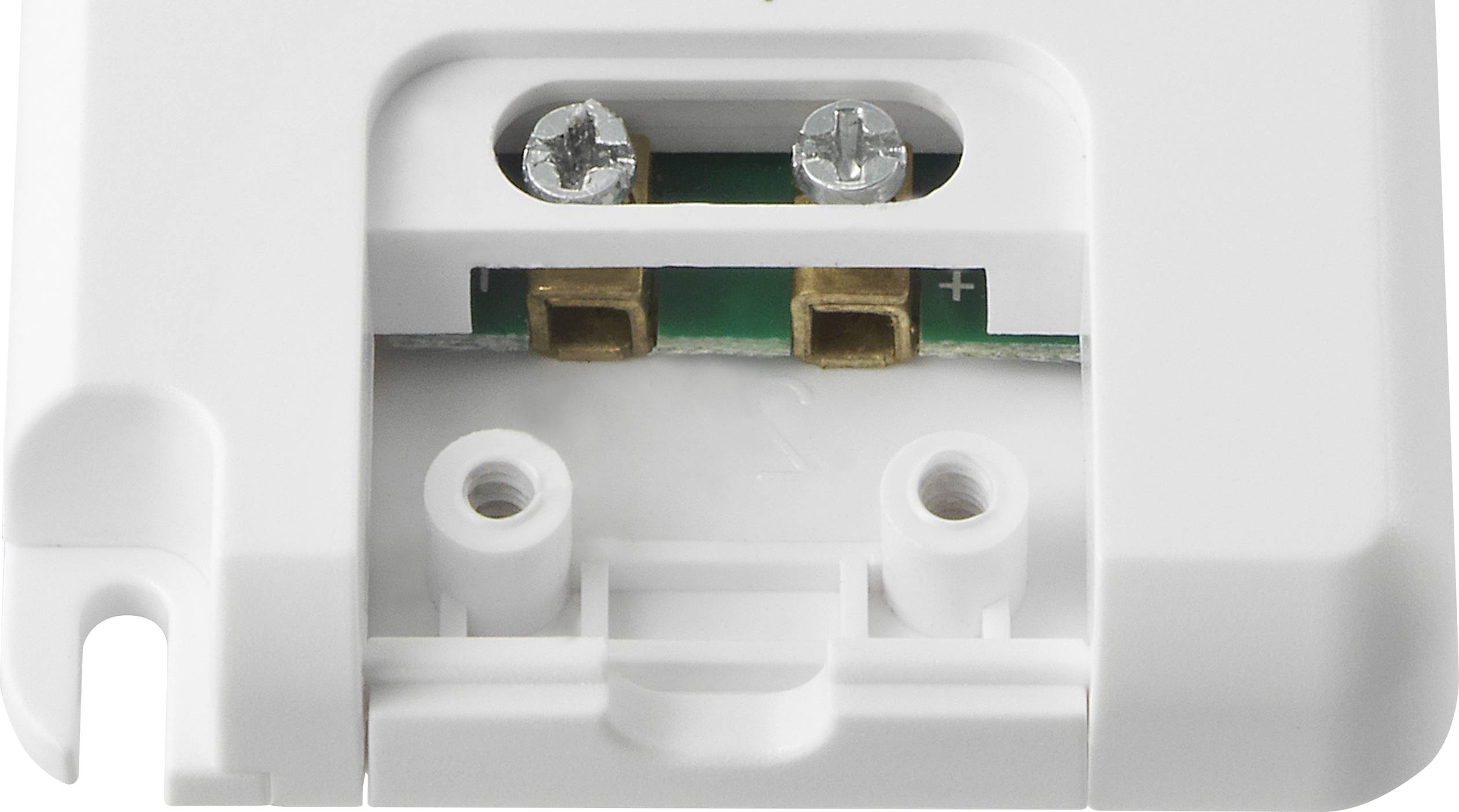

Close-up of a white plastic mounting bracket with two visible screws and electrical connections in the centre.

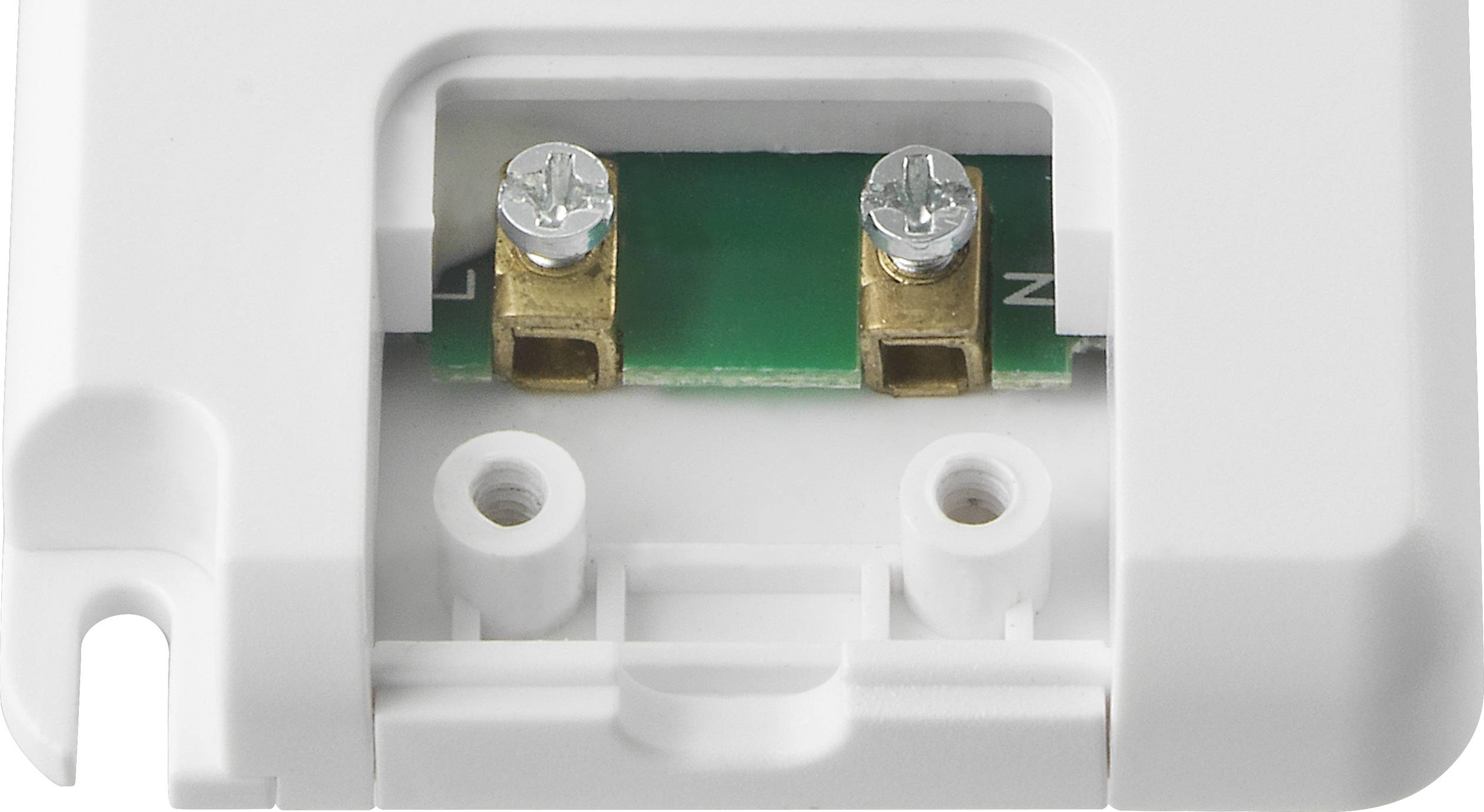

Electrical connection with two screw terminals on a green printed circuit board, mounted on a white housing.

A modern bedroom with wooden flooring, large windows, a bed dressed in white bedding and white curtains. A plant pot sits on the chest of drawers.

Modern kitchen unit with a black worktop, two induction hobs and two small potted plants. Elegant wall decoration.

1/7

Our service for you

487 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 12.60 / piece)

€

Report legal concerns

Highlights & Details

Basetech LD-12-12 LED Transformer 12 W 12 V/DC 1 A

Output 12 V/DC / 1 A
12 Watt power
SELV Class II (Safety Extra Low Voltage)
Suitable for flammable surfaces
Approved for use on furniture

Technical specifications

Product type: LED transformer

Type: Constant voltage

Dim: (L x W x H) 127 x 50 x 12 mm

Test mark: SELV class II

Max. output current: 1 A

Output current (max.) - rounded: 1 A

Operating voltage: 12 V DC

Protection class: II
IP20
EMC · F · MM

LED driver features: Approved for use on furniture
Overvoltage
Suitable for flammable surfaces

Connection: Screw terminal

Max. power: 12 W

Input voltage (max.): 240 V AC

Min. input voltage: 220 V AC

Power range: 12 W (max)

Width: 50 mm

Height: 12 mm

Length: 127 mm

Max. temperature: 40 °C

Min. temperature: 0 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2266524 Basetech LD-12-12 LED transformer Constant voltage 12 W 1 A Approved for use on furniture, Overvoltage, Suitable for fla

Description

The LED transformer supplied a constant output voltage of 12V.

This text is machine translated.

Features

Over temperature protection
Overload, Over-voltage and Short-circuit protection

Scope of delivery

Power supply
User manual

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
