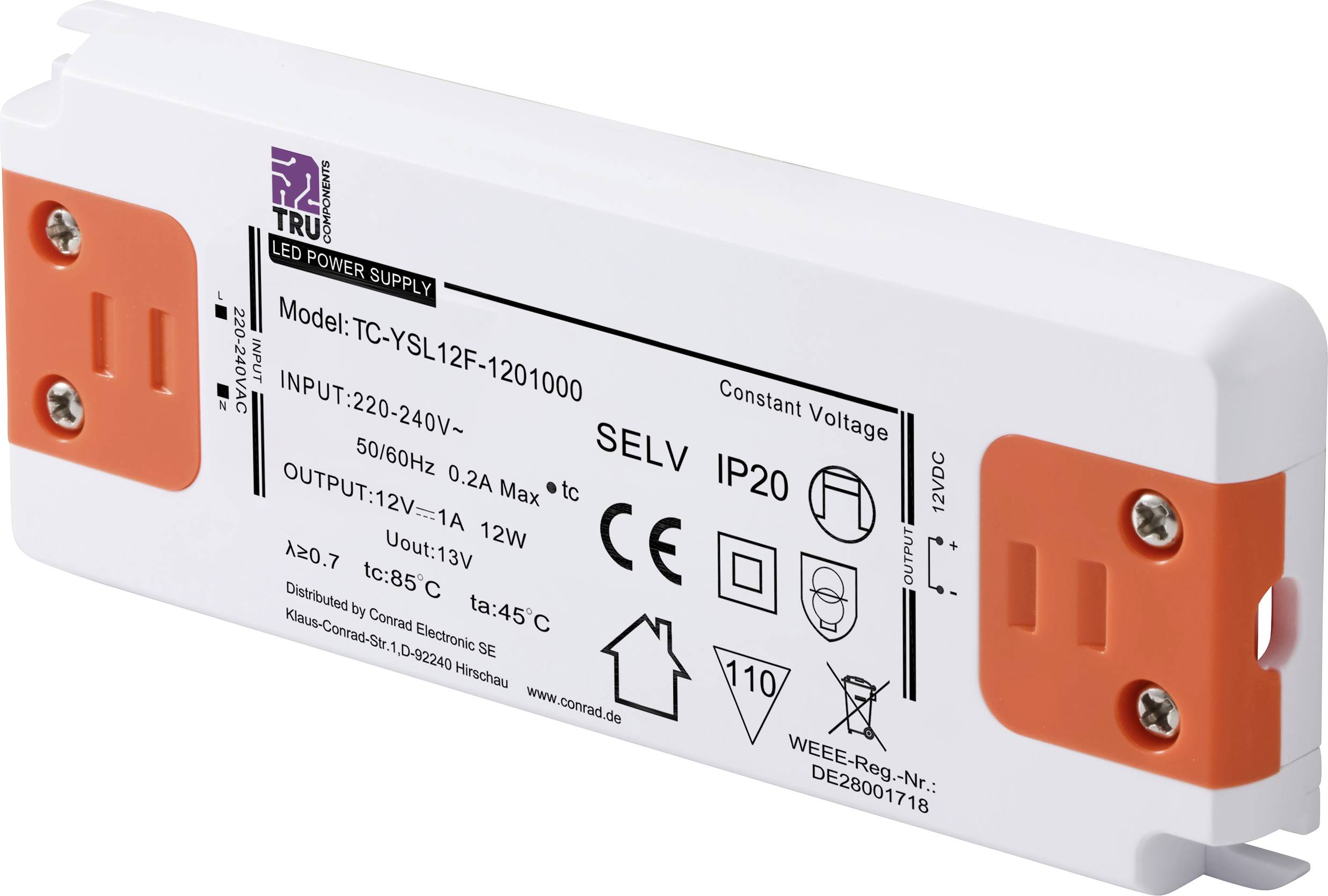

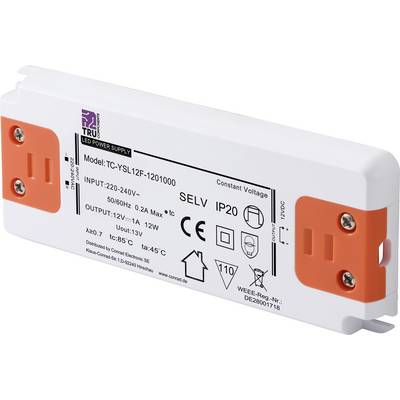

LED Power Supply with Model Number TC-YSL12F-1201000, Input 220-240V, Output 12V/1A, 12W, Suitable for Indoor Use (IP20).

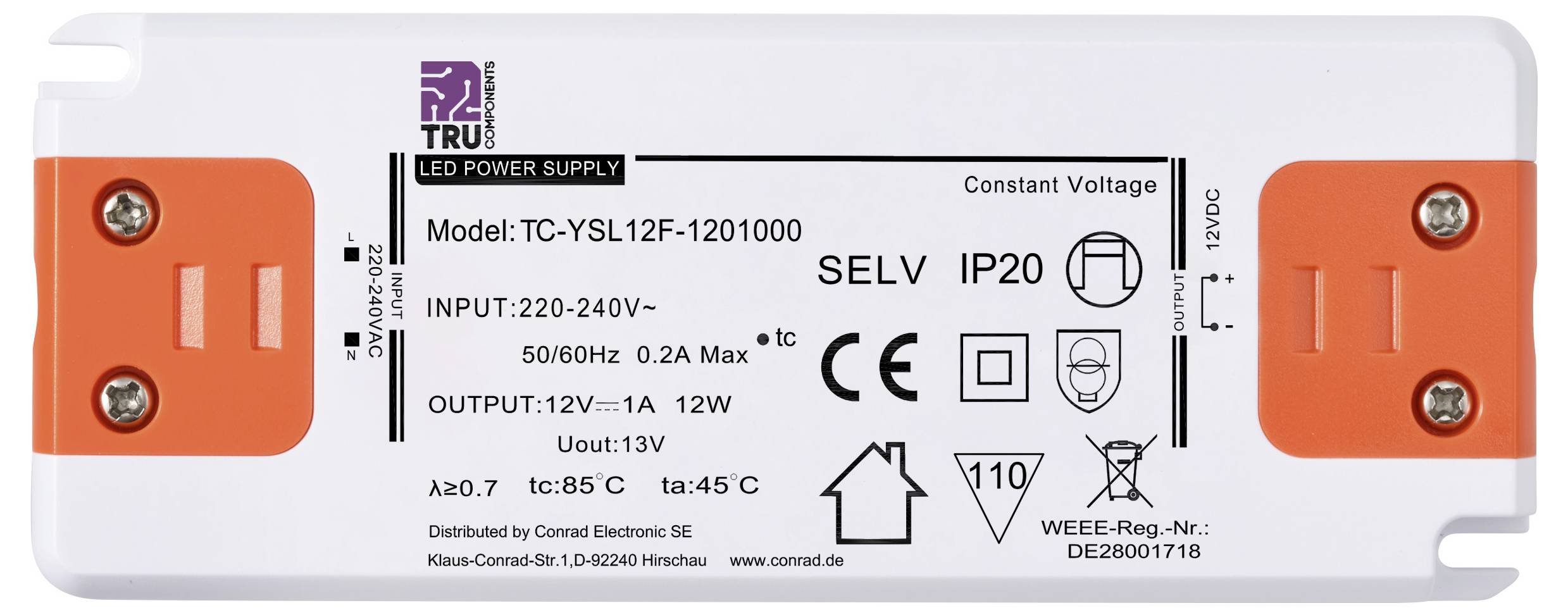

Inscription on an LED power supply: Model TC-YSL12F-1201000, Input 220-240V, Output 12V–1A, IP20. Symbols: CE, RoHS, WEEE.

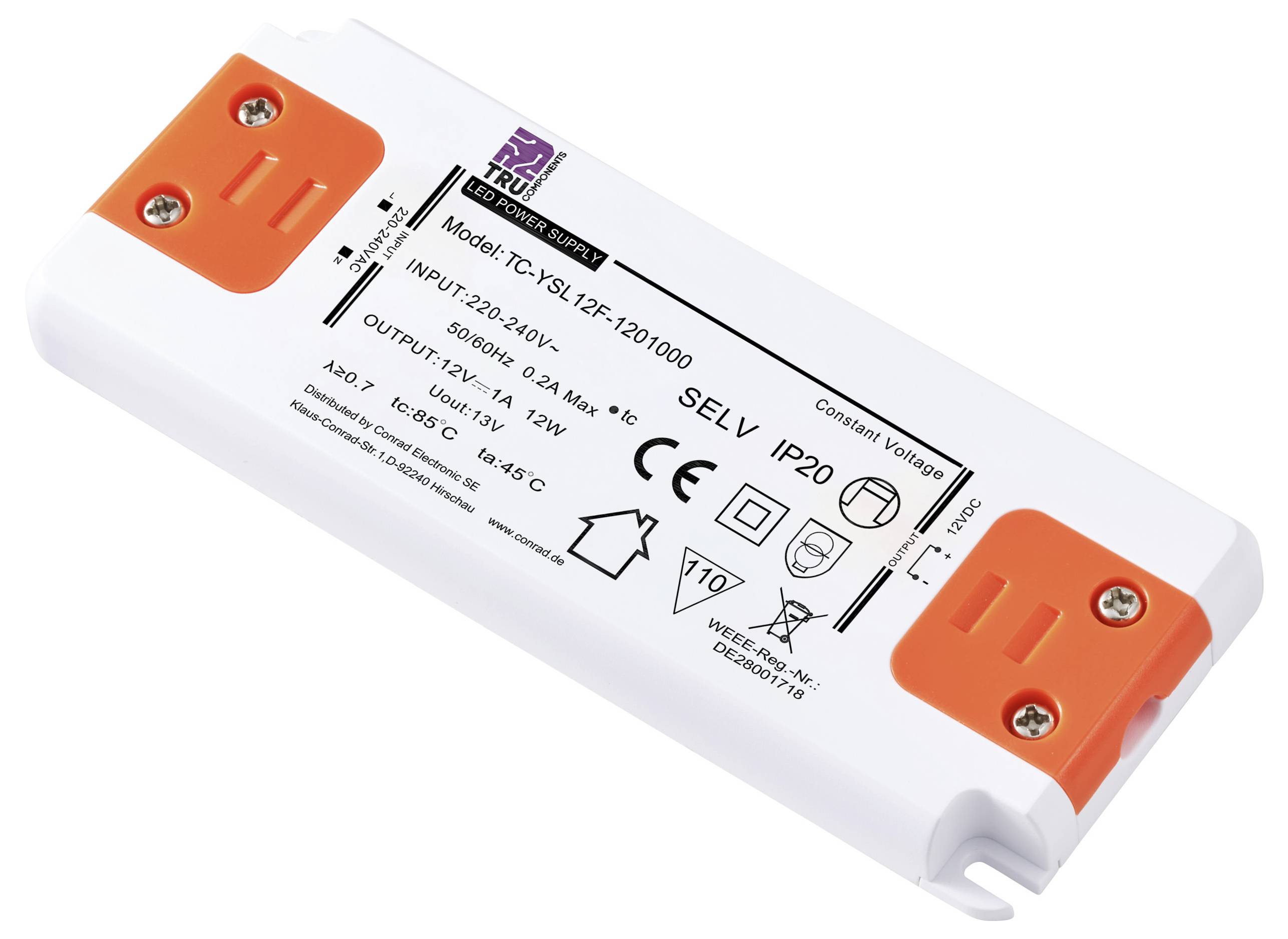

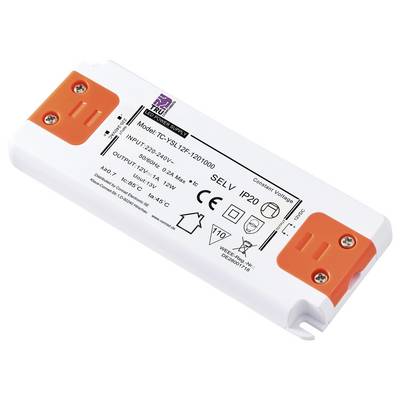

Electronic LED power supply with white casing, orange ends. Printing shows technical details such as input 220-240V, output 12V, 12W.

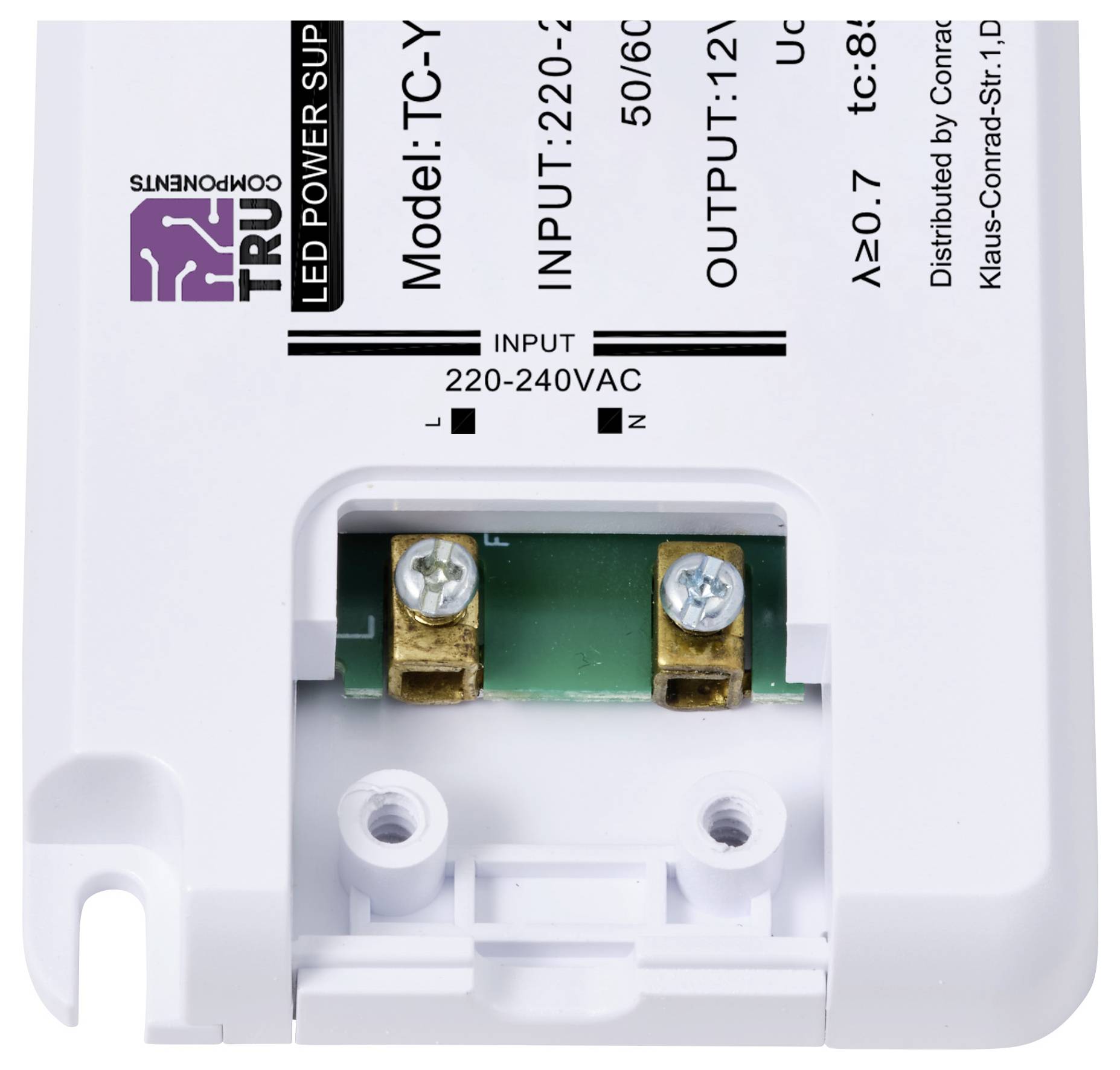

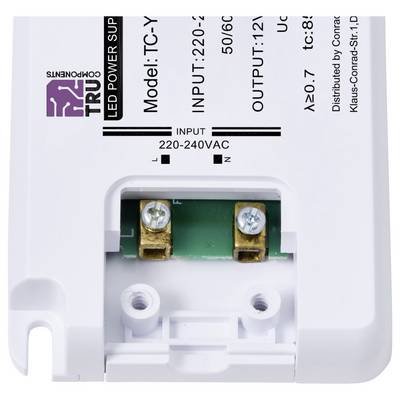

'LED Power Supply' Model TC-Y. Inputs: 220-240V, 50/60Hz. Outputs: 12V. Open connection field for cable installation visible.

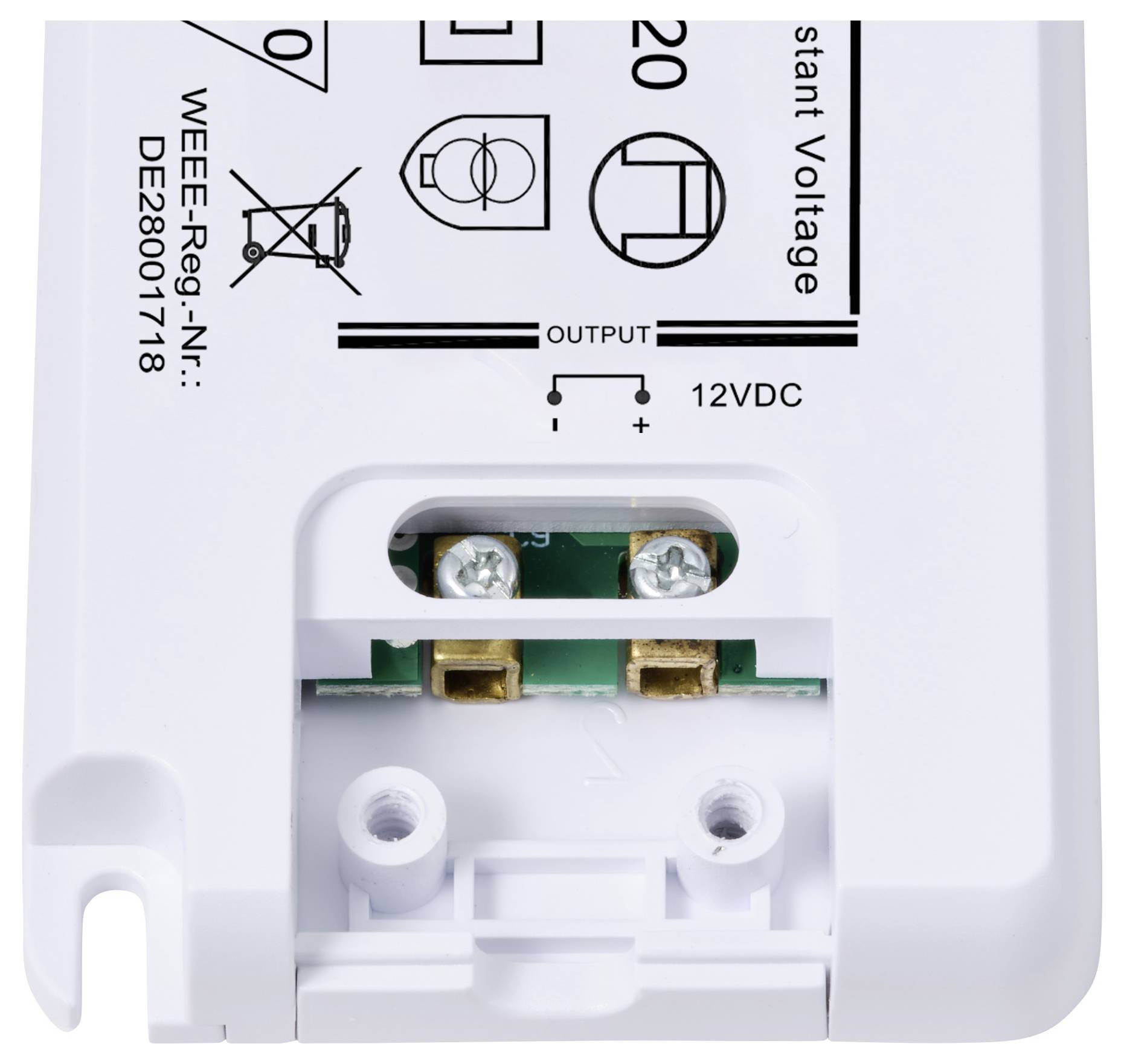

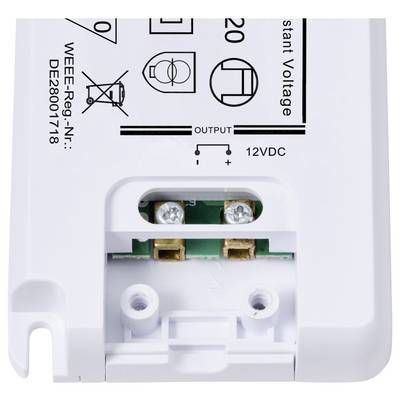

White electronic component with connection terminals, labelled 'OUTPUT 12VDC', surrounded by technical symbols and serial number.

LED lighting concept with light strips and stair lighting, an LED driver, and a stylish office interior.

1/6

Our service for you

938 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 5.45 / piece)

€

Report legal concerns

Highlights & Details

TC-YSL12F-1201000 LED transformer

Constant voltage
12 V DC
1.0 A
SELV Class II (Safety Extra Low Voltage)
Suitable for flammable surfaces
Approved for use on furniture

Technical specifications

Input: 200-240 V/AC, 50/60 Hz, 0.1 A max.
Output: 12 V/DC, 1.0 A, 12 W max.
Voltage Tolerance : +/- 5%
Efficiency (at full load): 72 %

Product type: LED transformer

Type: Constant voltage

Operating current: 0.1 A

Dim: (L x W x H) 127 x 50 x 12 mm

Factory colour: White orange

Output voltage (max.): 12 V DC

Test mark: SELV class II

Max. output current: 1.0 A

Output current (max.) - rounded: 1 A

Operating voltage: 240 V AC

Protection class: II
IP20
EMC · F · MM

LED driver features: Approved for use on furniture
Overvoltage
Suitable for flammable surfaces

: IP20

Connection: Screw terminal

Max. power: 12 W

No. of outputs: 1 x

No. of inputs: 1 x

Input voltage (max.): 240 V AC

Min. input voltage: 200 V AC

Inputs: 0.1 A

Weight: 50 g

Power range: 12 W (max)

Width: 50 mm

Height: 12 mm

Length: 127 mm

Max. temperature: 45 °C

Min. temperature: -20 °C

Plastic free packaging: Plastic-free packaging

Variants(All information is without VAT, plus shipping costs)

Connection

Max. power

IP rating

LED driver features

Output current (max.) - rounded

Output voltage (max.)

TRU COMPONENTS TC-YSL12F-1201000 LED transformer Constant voltage 12 W 1.0 A 12 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373169

This article

Screw terminal

12 W

IP20

Approved for use on furniture

1 A

12 V DC

TRU COMPONENTS TC-YSL15F-1201250 LED transformer Constant voltage 15 W 1.25 A 12 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373171

Screw terminal

15 W

IP20

Approved for use on furniture

1.25 A

12 V DC

TRU COMPONENTS TC-YSL20F-1201670 LED transformer Constant voltage 20 W 1.67 A 12 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373172

Screw terminal

20 W

IP20

Approved for use on furniture

1.67 A

12 V DC

TRU COMPONENTS TC-YSL30F-1202500 LED transformer Constant voltage 30 W 2.5 A 12 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373173

Screw terminal

30 W

IP20

Approved for use on furniture

2.5 A

12 V DC

TRU COMPONENTS TC-YSL50F-1204160 LED transformer Constant voltage 50 W 4.16 A 12 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373174

Screw terminal

50 W

IP20

Approved for use on furniture

4.16 A

12 V DC

TRU COMPONENTS TC-YSL100F-1208330 LED transformer Constant voltage 100 W 8.33 A 12 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373175

Screw terminal

100 W

IP20

Approved for use on furniture

8.33 A

12 V DC

TRU COMPONENTS TC-YSL12F-2400500 LED transformer Constant voltage 12 W 0.5 A 24 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373176

Screw terminal

12 W

IP20

Approved for use on furniture

500 mA

24 V DC

TRU COMPONENTS TC-YSL15F-2400625 LED transformer Constant voltage 15 W 0.625 A 24 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373177

Screw terminal

15 W

IP20

Approved for use on furniture

625 mA

24 V DC

TRU COMPONENTS TC-YSL20F-2400830 LED transformer Constant voltage 20 W 0.83 A 24 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373178

Screw terminal

20 W

IP20

Approved for use on furniture

830 mA

24 V DC

TRU COMPONENTS TC-YSL30F-2401250 LED transformer Constant voltage 30 W 1.25 A 24 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373179

Screw terminal

30 W

IP20

Approved for use on furniture

1.25 A

24 V DC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3373169 TRU COMPONENTS TC-YSL12F-1201000 LED transformer Constant voltage 12 W 1.0 A 12 V DC Approved for use on furniture, Over

Description

Features

Overload protection
Overvoltage protection
Short circuit protection
Ultra-thin and flicker‐free design
Terminal block for quick connection

Scope of delivery

LED transformer
User manual

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
