Buy Basetech LD-12-20 LED transformer Constant voltage 20 W 1.66 A Approved for use on furniture, Overvoltage, Suitable for

Power supply, model LD-12-20 by Basetech. Inputs: 200-240V~; Outputs: 12VDC, 1.86A Max. Constant voltage, protection class IP20.

LED Power Supply Unit with the inscription 'BASTech'. Input: 200-240 V, 50/60 Hz. Output: 12 V, 1.66 A, 20 W. Model: LD-12-20.

LED Power Supply with orange ends. Label reads: 'Input: 200-240 VAC', 'Output: 12 VDC, 1.6A max'. Safety and manufacturer symbols.

Close-up of a white housing with a green clip for electrical connections, two visible screws for fastening.

White electrical connector block with an orange terminal block and two insertion holes, used for securely connecting cables.

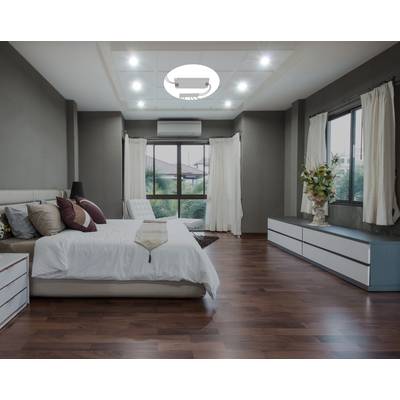

A contemporary bedroom with wooden flooring. A large bed with white sheets stands on the left, with bedside tables beside it. Large windows with curtains provide daylight. A low sideboard is positioned on the right.

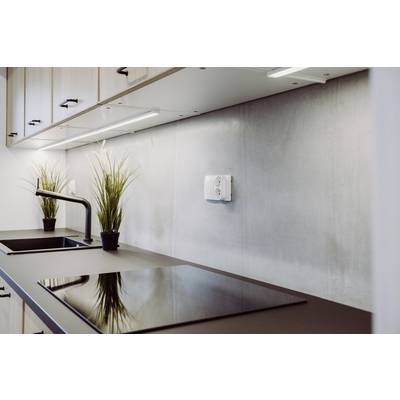

Modern kitchen with a dark worktop, induction hob, black mixer tap, and two small potted plants.

1/7

Our service for you

715 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.92 / piece)

€

Report legal concerns

Highlights & Details

Basetech LD-12-20 LED Transformer 20 W 12 V/DC 1.66 A

Output 12 V/DC / 1.66 A
20 Watt power
SELV Class II (Safety Extra Low Voltage)
Suitable for flammable surfaces
Approved for use on furniture

Technical specifications

Product type: LED transformer

Type: Constant voltage

Dim: (L x W x H) 103 x 35 x 16 mm

Test mark: SELV Class II

Max. output current: 1.66 A

Output current (max.) - rounded: 1.66 A

Operating voltage: 12 V DC

Protection class: II
EMC · F · MM
IP20

LED driver features: Approved for use on furniture
Overvoltage
Suitable for flammable surfaces

Connection: Screw terminal

Max. power: 20 W

Input voltage (max.): 240 V AC

Min. input voltage: 220 V AC

Power range: 20 W (max)

Width: 35 mm

Height: 16 mm

Length: 103 mm

Max. temperature: 40 °C

Min. temperature: 0 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2265916 Basetech LD-12-20 LED transformer Constant voltage 20 W 1.66 A Approved for use on furniture, Overvoltage, Suitable for

Description

The LED transformer supplied a constant output voltage of 12V.

This text is machine translated.

Features

Over temperature protection
Overload, Over-voltage and Short-circuit protection

Scope of delivery

Power supply
User manual

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
