Buy TRU COMPONENTS TC-YCL12-1201000（Round shape) LED transformer Constant voltage 12 W 1.0 A 12 V DC not dimmable, Suitable

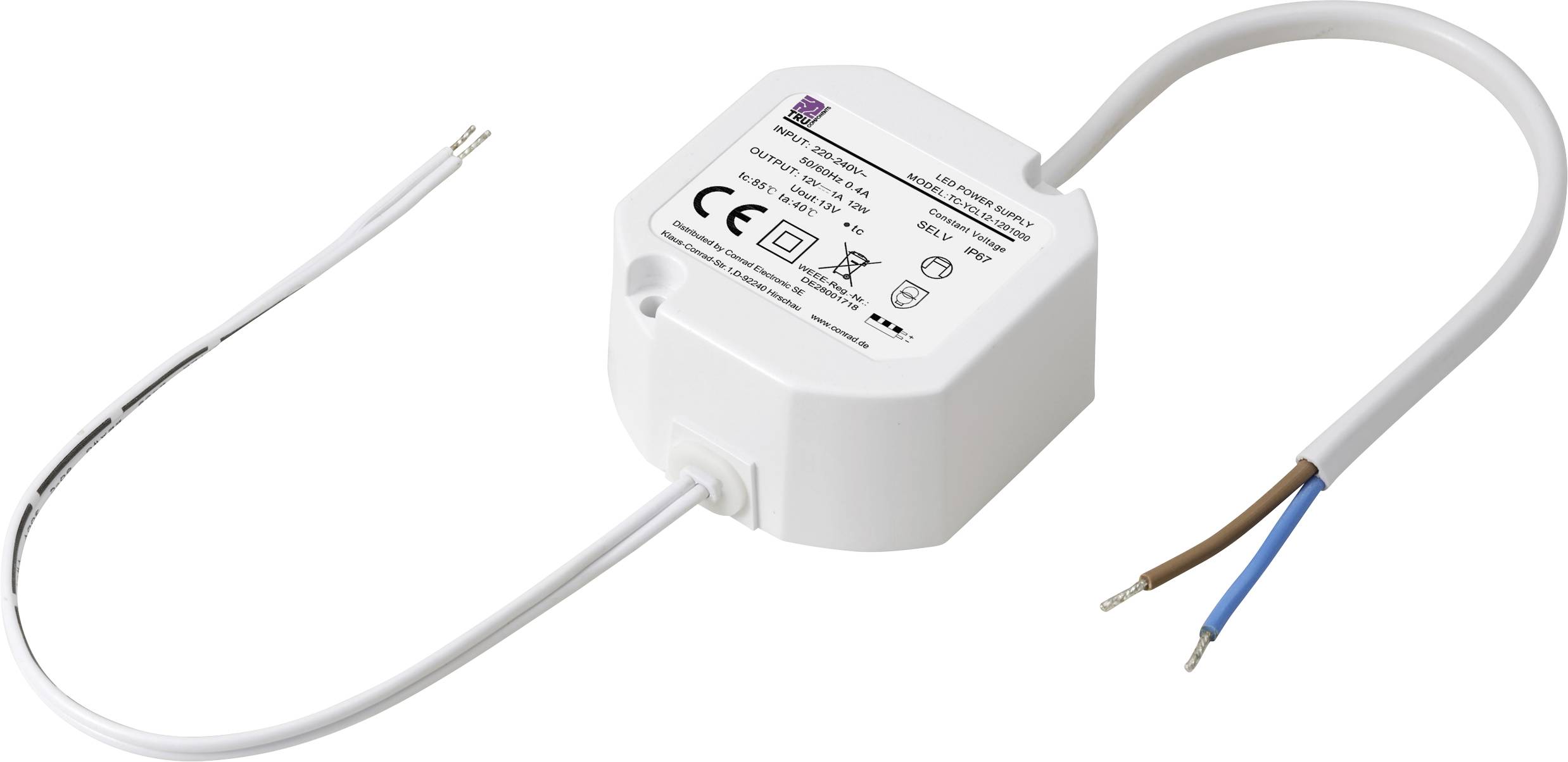

A white electrical transformer with two cables, one black and white and one brown and blue, suitable for low-voltage applications.

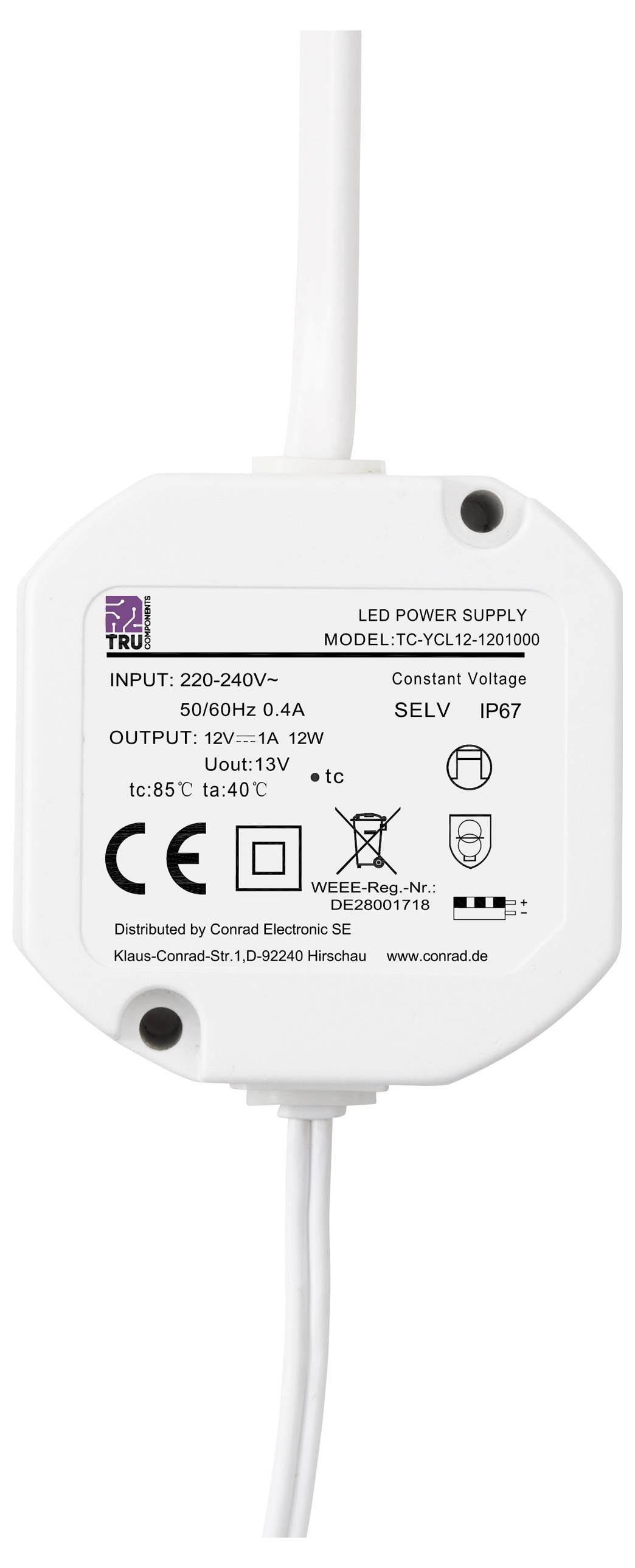

LED Power Supply, Model TC-12, Input 220-240V, Output 12V, 12W. Protection Class IP67, Ambient Temperature -40 to 85°C.

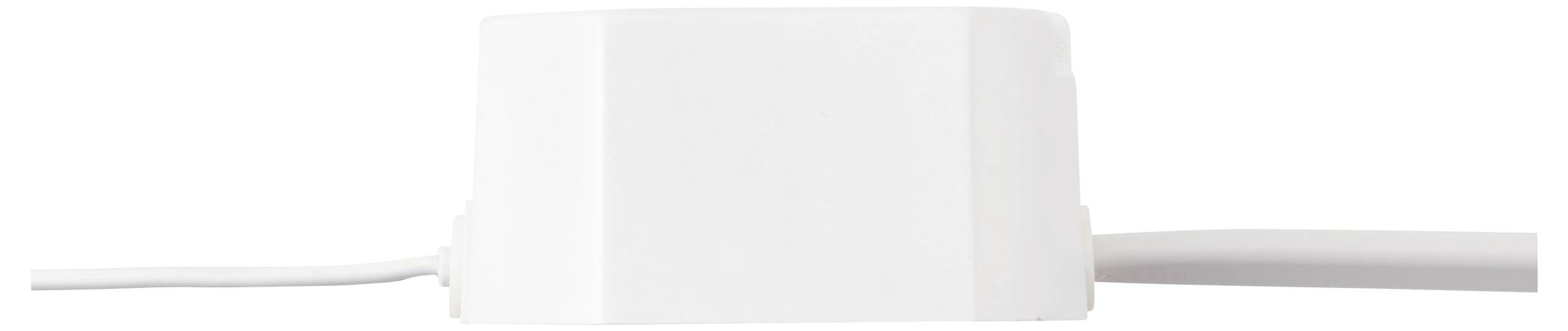

A white, cylindrical sensor or device with a cable for power supply or communication, set against a neutral background.

'LED lighting in various applications: warm white LED strips, blue-lit kitchen, modern living room, covered by LED lights. Central light switch for control.'

1/4

Our service for you

99 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 7.13 / piece)

€

Report legal concerns

Highlights & Details

TRU COMPONENTS TC-YCL12-1201000（Round shape) LED transformer Constant voltage 12 W 1.0 A 12 V DC not dimmable, Suitable

Constant voltage
12 V DC
1.0 A
IP67 protection
SELV Class II (Safety Extra Low Voltage)
Suitable for flammable surfaces
Approved for use on furniture

Technical specifications

Input: 220-240 VAC, 50/60 Hz, 0.4 A max.
Output: 12 V/DC, 1 A, 12 W max.
Voltage Tolerance : +/- 5%
Efficiency (at full load): 72 %

Product type: LED transformer

Type: Constant voltage

Operating current: 0.4 A

Dim: (L x W x H) 50 x 50 x 25 mm

Factory colour: White

Output voltage (max.): 12 V DC

Test mark: SELV class II

Max. output current: 1.0 A

Output current (max.) - rounded: 1 A

Operating voltage: 240 V AC

Protection class: II
IP67

LED driver features: not dimmable
Suitable for flammable surfaces

: IP67

Connection: Wire

Max. power: 12 W

No. of outputs: 1 x

No. of inputs: 1 x

Input voltage (max.): 240 V AC

Inputs: 0.2 A

Weight: 100 g

Power range: 12 W (max)

Width: 50 mm

Height: 25 mm

Length: 50 mm

Max. temperature: 45 °C

Min. temperature: -20 °C

Plastic free packaging: Plastic-free packaging

Variants(All information is without VAT, plus shipping costs)

Connection

Max. power

IP rating

LED driver features

Output current (max.) - rounded

Output voltage (max.)

TRU COMPONENTS TC-YCL12-1201000（Round shape) LED transformer Constant voltage 12 W 1.0 A 12 V DC not dimmable, Suitable for flammable surfaces 1 pc(s)

Item no:3373182

This article

Wire

12 W

IP67

not dimmable

1 A

12 V DC

TRU COMPONENTS TC-YSL12F-1201000 LED transformer Constant voltage 12 W 1.0 A 12 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373169

Screw terminal

12 W

IP20

Approved for use on furniture

1 A

12 V DC

TRU COMPONENTS TC-YSL15F-1201250 LED transformer Constant voltage 15 W 1.25 A 12 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373171

Screw terminal

15 W

IP20

Approved for use on furniture

1.25 A

12 V DC

TRU COMPONENTS TC-YSL20F-1201670 LED transformer Constant voltage 20 W 1.67 A 12 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373172

Screw terminal

20 W

IP20

Approved for use on furniture

1.67 A

12 V DC

TRU COMPONENTS TC-YSL30F-1202500 LED transformer Constant voltage 30 W 2.5 A 12 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373173

Screw terminal

30 W

IP20

Approved for use on furniture

2.5 A

12 V DC

TRU COMPONENTS TC-YSL50F-1204160 LED transformer Constant voltage 50 W 4.16 A 12 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373174

Screw terminal

50 W

IP20

Approved for use on furniture

4.16 A

12 V DC

TRU COMPONENTS TC-YSL100F-1208330 LED transformer Constant voltage 100 W 8.33 A 12 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373175

Screw terminal

100 W

IP20

Approved for use on furniture

8.33 A

12 V DC

TRU COMPONENTS TC-YSL12F-2400500 LED transformer Constant voltage 12 W 0.5 A 24 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373176

Screw terminal

12 W

IP20

Approved for use on furniture

500 mA

24 V DC

TRU COMPONENTS TC-YSL15F-2400625 LED transformer Constant voltage 15 W 0.625 A 24 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373177

Screw terminal

15 W

IP20

Approved for use on furniture

625 mA

24 V DC

TRU COMPONENTS TC-YSL20F-2400830 LED transformer Constant voltage 20 W 0.83 A 24 V DC Approved for use on furniture, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:3373178

Screw terminal

20 W

IP20

Approved for use on furniture

830 mA

24 V DC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3373182 TRU COMPONENTS TC-YCL12-1201000（Round shape) LED transformer Constant voltage 12 W 1.0 A 12 V DC not dimmable, Suitable

Description

Features

Overload protection
Overvoltage protection
Short circuit protection
Flicker‐free design
SELV protection class II (safety extra-low voltage)

Scope of delivery

LED transformer
User manual

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
