Name: BeQuiet LIGHT WINGS LX | 120mm PWM Reverse Black PC fan Black
Brand: BeQuiet
SKU: 3540464
Availability: InStock

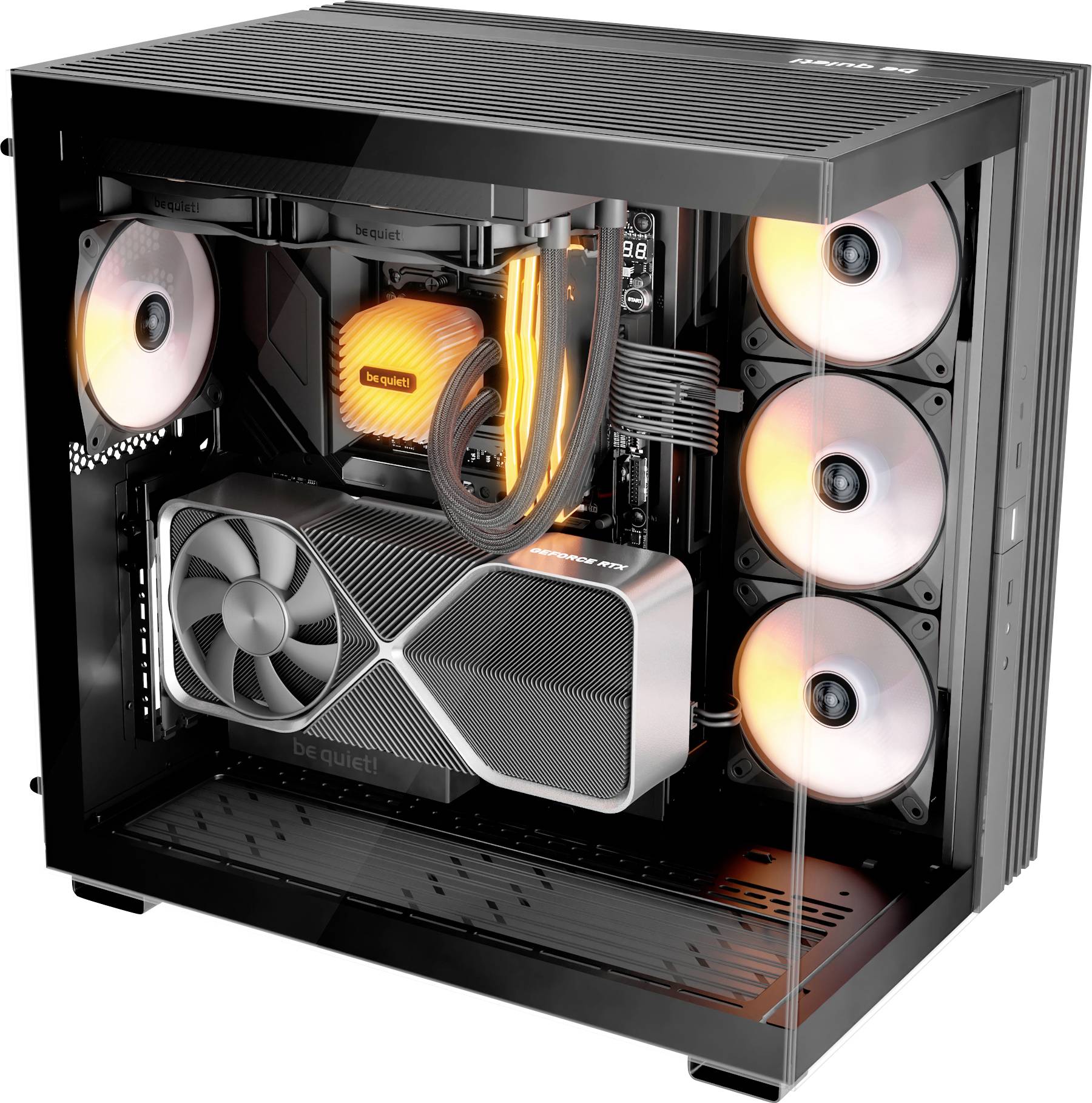

A transparent PC case showcasing a high-performance gaming setup with RGB fans, liquid cooling system, and a large graphics card.

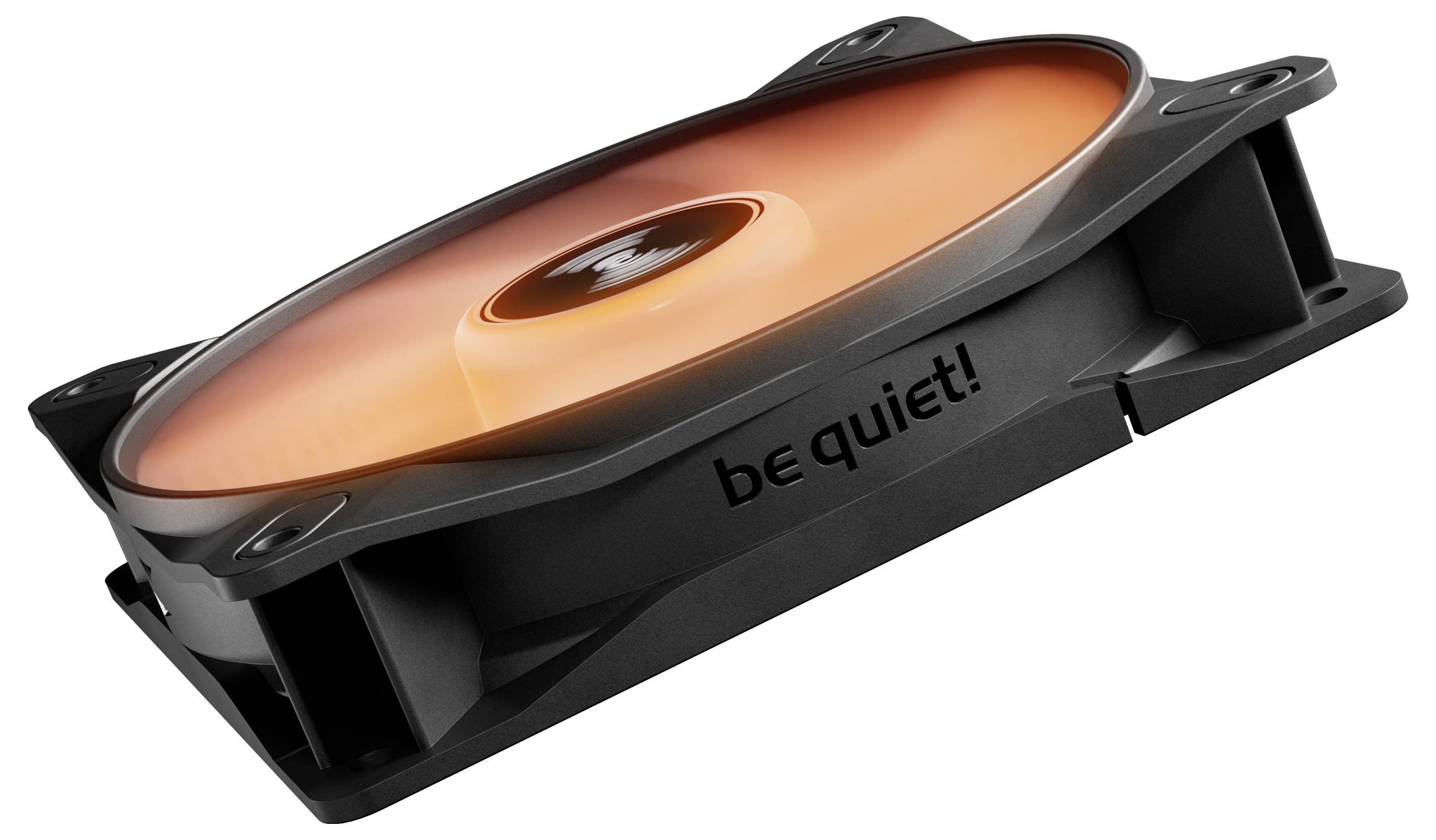

A computer cooling fan with an orange LED light, branded with 'be quiet!', designed for quiet operation and effective cooling performance.

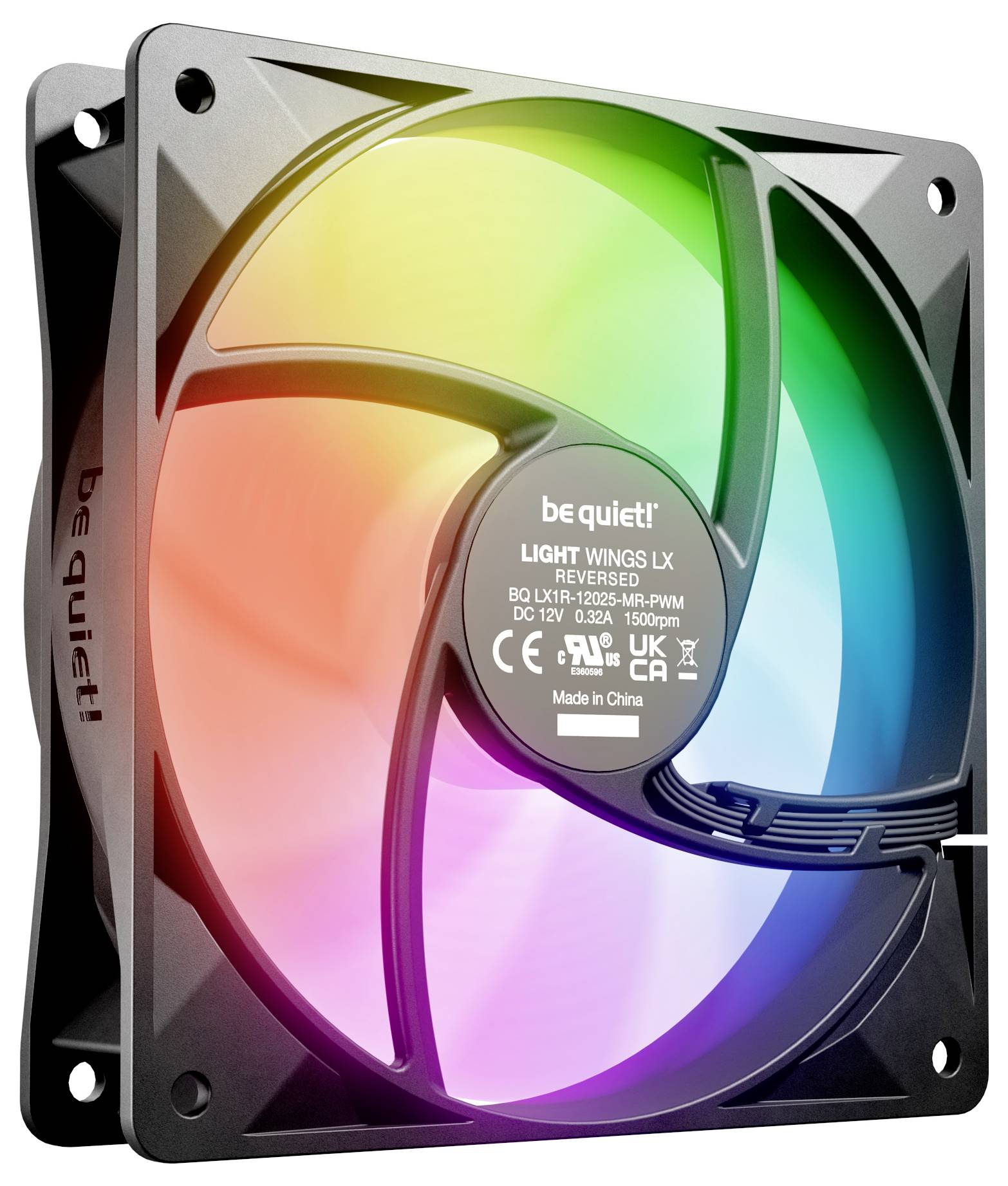

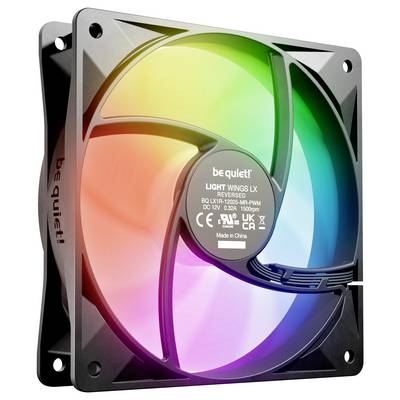

A computer cooling fan with RGB lighting displays colorful, circular patterns. The central hub reads 'be quiet! Light Wings LX'.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

20 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 19.99 / piece)

€ 19.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

BeQuiet LIGHT WINGS LX | 120mm PWM Reverse Black PC fan

Computer housing fan 12 cm 1500 RPM
28.5 dB 48.8 CFM 1.04 mmH2O storage
Support for pulse width modulation
120 x 120 x 25 mm 133 g
Black
1 pieces(s)

Technical specifications

Fan diameter 12 cm
Bearing type: Rifle bearing
Number of fans: 1 fans
3-pin fan connector

Product type: PC fan

Noise emission (max.): 28.5 dB

Noise emission: 20.1 dB - 30 dB

Air discharge: 83 m³/h

Rotational speed (max.): 1500 U/min

Factory colour: Black

Weight: 0.167

Content: 1 pc(s)

Cable length: 0.5 m

Type: Fan

UKCA: yes

Number of screws: 4

Screws included: yes

Fan current: 0.1 A

Fan weight: 133 g

Illumination LED: yes

Fan dimensions (W x D x H): 120 x 120 x 25 mm

Rated voltage: 12 V

Quantity per pack: 1 Stück(e)

Shipping (inner) case width: 43.3 cm

Shipping (inner) case length: 31.9 cm

Shipping (inner) case height: 29 cm

Shipping (inner) case gross weight: 10.8 kg

Products per shipping (inner) case: 60 Stück(e)

Fan power consumption: 3.8 W

Pulse-width modulation (PWM) support: yes

Rated current: 0.39 A

Fan's mean time to failure (MTTF): 60000 h

Package weight: 170 g

Maximum airflow: 48.8 cfm

Maximum air pressure: 1.04 mmwc

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3540464 BeQuiet LIGHT WINGS LX | 120mm PWM Reverse Black PC fan Black

User & Safety Instructions

User & Safety Instructions 3540464 BeQuiet LIGHT WINGS LX | 120mm PWM Reverse Black PC fan Black

Warranty Terms

Warranty Terms 3540464 BeQuiet LIGHT WINGS LX | 120mm PWM Reverse Black PC fan Black

Description

Impressive performance and illumination

Light Wings LX 120mm PWM reverse black shines with inverted fan blades and an illuminated impeller for impressive performance and illumination. This fan brings your system to the next level. Light Wings LX 120mm PWM Reverse Black is particularly suitable for colorful ARGB builds. Apart from incomparable high-quality lighting, the fan is also captivated by its reliable cooling.

This text is machine translated.

Features

7 optimized and inverted fan blades with perfect angle for extraordinary air pressure
Inverted fan blades for ideal use in the side or on the floor of your casing
Illuminated hub and matted fan blades for distinctive light effects
Numerous colors and effects for individual lighting thanks to 16 ARGB LEDs
ARGB cable with option for serial connection
Low minimum speed for very quiet operation
Durable rifle bearing with a service life of 60,000 hours
Product conception, design and quality control in Germany

Scope of delivery

Mounting screws

Description

Features

7 optimized and inverted fan blades with perfect angle for extraordinary air pressure
Inverted fan blades for ideal use in the side or on the floor of your casing
Illuminated hub and matted fan blades for distinctive light effects
Numerous colors and effects for individual lighting thanks to 16 ARGB LEDs
ARGB cable with option for serial connection
Low minimum speed for very quiet operation
Durable rifle bearing with a service life of 60,000 hours
Product conception, design and quality control in Germany
