Name: BGW14 Eltako Gateway DIN rail
Brand: Eltako
SKU: 2162331
Availability: InStock

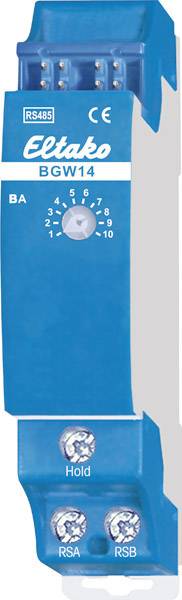

Electronic device with a blue surface, labelled 'Eltako BGW14', rotary control at the top, electrical connections visible at the bottom.

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 59.99 / piece)

€ 59.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Gateway

Series: Eltako

Dim: (W x D) 18 mm x 58 mm

: IP20

Power supply (LOV): via PSU bus

Operating voltage: 12 V

Mounting type: DIN rail

Data transfer (Smart Home): Wired

Width: 18 mm

Depth: 58 mm

Hub: Not required, optional for remote access

Data exchange: Bidirectional (bi)

: n.rel.

: DRA (DIN-rail adapter)

: Multiple interface

: 12 V

: DC

: 0.3 W

: FALSE

: TRUE

: FALSE

: 1

: Other

: FALSE

: FALSE

: FALSE

: FALSE

: Other

: FALSE

: FALSE

: FALSE

: FALSE

: 12-12 V

: IP20

: FALSE

: FALSE

: TRUE

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2162331 BGW14 Eltako Gateway DIN rail

Description

RS485 bus gateway. Bidirectional. Standby loss of only 0.3 watts. Series installation device for mounting on DIN-EN 60715 TH35 mounting rail. 1 division unit = 18mm wide, 58mm deep. Connection to the Eltako RS485 bus. Cross-wiring bus and power supply with jumper. Operation in conjunction with FAM14 or FTS14KS. The hold terminal is connected to the FAM14 or FTS14KS. Up to 16 RS485 sensors BUTH65D/12VDC, BBH65/12VDC and BTR65H/12VDC can be connected to the RSA/RSB terminals. The 4-wire bus is used for data transfer and power supply with a 12V DC switching power supply. The connection is made e.g. with the usual telephone cable (J-Y (ST) Y 2x2x0.8mm2). The total permissible cable length is 1000m. The second 120Ohm terminating resistor supplied with the BGW14 must also be connected to the RSA/RSB terminals on the furthest sensor. With up to 8 BGW14, data from up to 128 sensors can be fed into the RS485 bus. The operating mode rotary switch BA is set according to the operating instructions.
