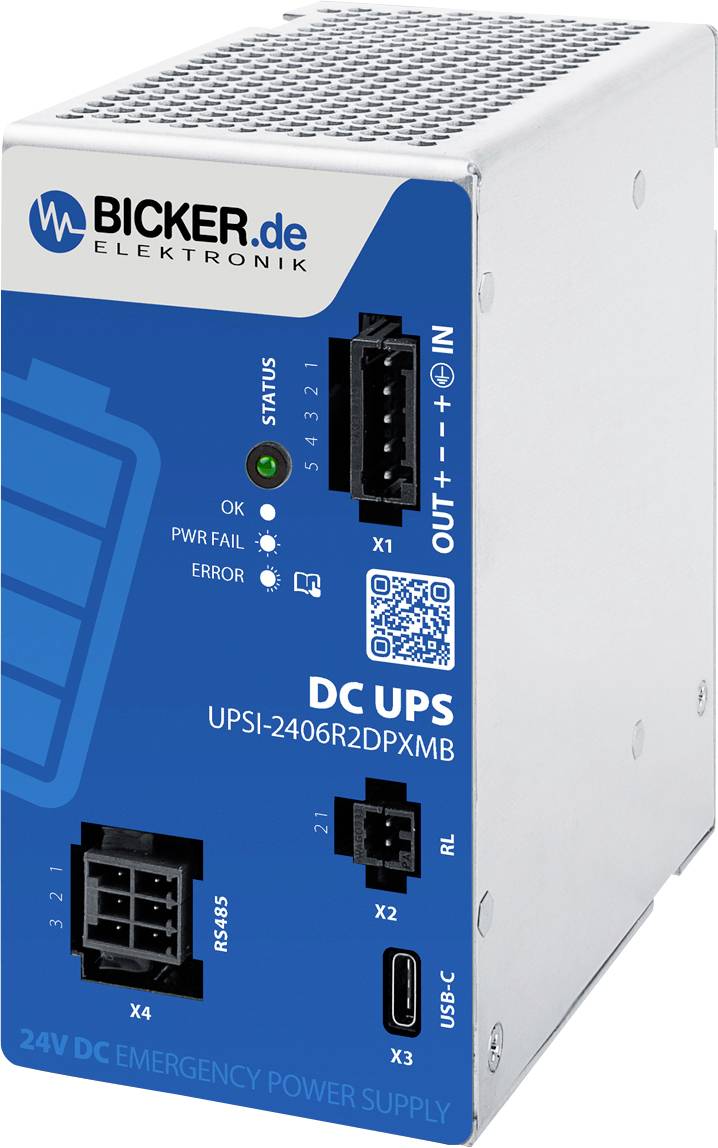

Bicker Elektronik UPSI-2406R2DP3MB Rail-mount UPS (DIN)
EAN:
Part number:
Item no:
Number
Total (€ 385.71 / piece)
€ 385.71
plus VAT.
Highlights & Details
UPSI-2406R2DP3MB DC-UPS uninterruptible power supply (DC-UPS) with integrated LiFePo4 battery for the DIN rail
- Operating temperature range -20...+50°C
- High-performance LiFePO4 battery pack with safety certification according to IEC 62133-2
- Up to 6,000 cycles
- USB-C and RS485-Modbus-interface
- Intelligent current distribution
- Regulated output voltage in backup mode
- Minimum load detection
- Power failure timer function
- Relay contact for Power failure
- Plug & Play - detected by the operating system as UPS
- Extended functionality with UPScom management software included
- Shutdown and reboot function
- Safety certification according to IEC/EN/UL 61010-1/-2-201
Technical specifications
- Dynamic power-boost (short-term overload output of up to 192 W is possible for max. 58 s)
- Built-in LiFePO4 rechargeable battery with high cycle stability (up to 6,000 cycles)
- Regulated output voltage (23.5 VDC) in backup mode
- Dynamic Power sharing / intelligent input current detection
- Minimum load detection, Power-fail timer and shutdown function, reboot function
- Integrated RS-485 Modbus RTU connection for system integration
- Native HID Power-class support via USB (plug & play) as well as compatibility with UPScom and UPS Gen² configuration software
- Input voltage
23-30 V DC
- Product type
Rail-mount UPS (DIN)
- Nominal power
144 W
- No. of outputs
1 x
- Input voltage (max.)
30 V DC
- Min. input voltage
23 V DC
- Output voltage (max.)
30 V DC
- Output voltage (min.)
22.5 V DC
- Dim
(W x H x D) 63 x 120.5 x 105 mm
- Rechargeable battery capacity (details)
2,5 Ah
- Connections
RS-485 (X4): Lockable plug connector (WAGO 713, 6-pin)
USB (X3) USB type C socket
Relays (RL / X2): Lockable plug connector / spring clamp (WAGO 733, 2-pin)
V_IN / V_OUT / FE (X1): Lockable plug connector / spring terminal (WAGO 734, 5-pin)
- of which battery-buffered
1
- with surge protection
1
- Output current (details)
6 A
- Input current
6.2 A
- Weight
0.7 kg
- Width
63 mm
- Height
120.5 mm
- Depth
105 mm
- Interfaces
USB 2.0
USB-C
RS485
- Type
UPSI-2406R2DP3MB
- Features
USB port
- Bridging time, max load
11 min
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818332 Bicker Elektronik UPSI-2406R2DP3MB Rail-mount UPS (DIN)
Description
The UPSI-2406R2DP3MB is the latest generation of intelligent DC UPS systems for DIN rail installation - designed for high reliability and optimum data communication. It reliably protects control and automation applications in case of power failure, voltage dip or flicker.
The robust LiFePO4 battery technology, the extended operating temperature range of -20…+50 °C and up to 6,000 charging cycles, offers the compact 24 VDC emergency power supply an exceptionally long life and stability in industrial continuous use.
With front-sided USB-C and RS485-Modbus interfaces, the DC-UPS can be integrated seamlessly in existing control environments and monitored comfortably via the accompanying UPScom management software. The extended protection mechanisms and increased noise immunity in surge & burst provide additional operational safety.
The compact DC-UPS UPSI-2406R2DP3MB in a robust DIN rail housing is Ideal suitable for many years of use in control cabinet applications and decentralized power supply solutions. It provides reliable protection for embedded IPCs, controllers, motor drives, sensors, and measurement, control and safety technology.
This text is machine translated.
The robust LiFePO4 battery technology, the extended operating temperature range of -20…+50 °C and up to 6,000 charging cycles, offers the compact 24 VDC emergency power supply an exceptionally long life and stability in industrial continuous use.
With front-sided USB-C and RS485-Modbus interfaces, the DC-UPS can be integrated seamlessly in existing control environments and monitored comfortably via the accompanying UPScom management software. The extended protection mechanisms and increased noise immunity in surge & burst provide additional operational safety.
The compact DC-UPS UPSI-2406R2DP3MB in a robust DIN rail housing is Ideal suitable for many years of use in control cabinet applications and decentralized power supply solutions. It provides reliable protection for embedded IPCs, controllers, motor drives, sensors, and measurement, control and safety technology.
This text is machine translated.
Features
- STANDARDS IEC 61010-1 (SELV), IEC61010-2-201, ETL, UL61010-1
Scope of delivery
- 1x DC-UPS device UPSI-2406R2DP3MB
- 1x V_IN/V_OUT/FE mating plug
- Optional: 1x relay-mating plug
- Optional: 1x RS-485 mating plug (Modbus)
- Incl. software
