Buy binder 09 3419 81 03 Sensor/actuator built-in connector M8 Plug, mount No. of pins (RJ): 3 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

A three-pin round plug with a metal casing and plastic insulation, commonly used for audio and electronic connections.

A three-pin round plug with a metal casing and plastic insulation, commonly used for audio and electronic connections.

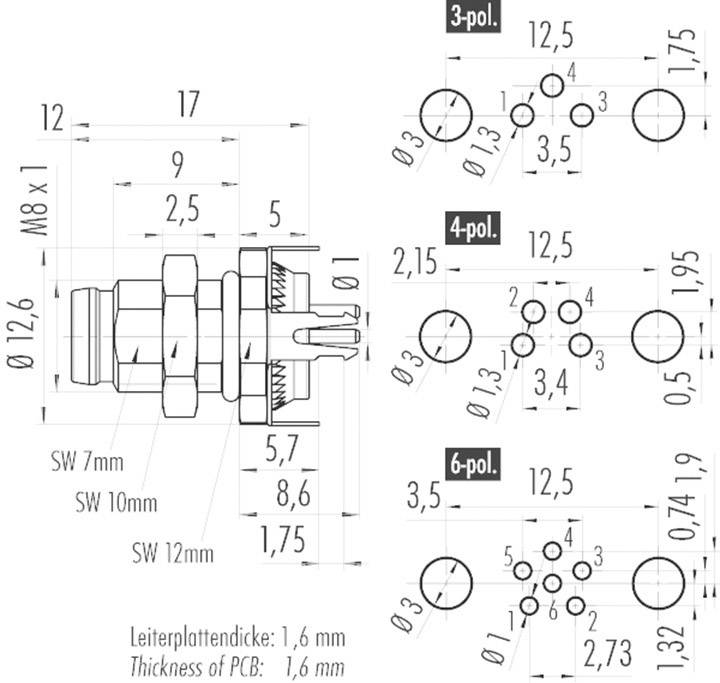

Technical drawing of a connector with various views and dimensions for 3-, 4- and 6-pole variants.

1/2

Image similar

binder

Product type

Sensor/actuator built-in connector

Connector type

Plug, mount

Connector standard

Sensor connector

Connection side A

M8 plug, built-in

Connection side B

Customisable

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 12.99 / piece)

€ 15.99

-19 %

€ 12.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Type: 09 3419 81 03

Product type: Sensor/actuator built-in connector

Connector type: Plug, mount

Connector standard: Sensor connector

Connection side A: M8 plug, built-in

Connection side B: Customisable

No. of pins: 3

Nominal voltage: 60 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connection: Soldering

Thread type connection side: M8

Thread type (wiring and installation): M10

Contact material: CuSn

Contact surface: Gold plated

Sensor/actuator connectivity fittings: M10 front panel fitting

: IP67

Min. temperature: -40 °C

Max. temperature: +85 °C

Seal type: Screw-on

Manufacturer part #: 09 3419 81 03

Content: 1 pc(s)
