binder 99-1487-812-08 Series 713, Sensor / Actuator Plug Connector M12, Screw Closure, Straight

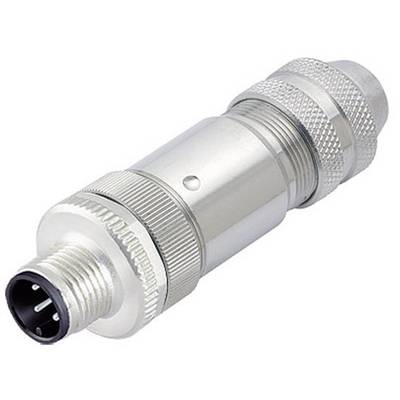

A silver, cylindrical metal plug with a knurled grip and a round connection end, suitable for technical applications.
'Colourful sequence of numbers from 0 to 99 on a white background' and small image of a '6D' cube on the right side.
1/2
Image similar
Product type
Sensor/actuator connector
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
M12 plug, straight
Connection side B
Customisable
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
36 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 48.99 / piece)
€ 48.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

99 1487 812 08

Product type

Sensor/actuator connector

Connector type

Plug, straight

Connector standard

Sensor connector

Connection side A

M12 plug, straight

Connection side B

Customisable

No. of pins

8

Nominal voltage

30 V

Nominal current

2 A

Nominal current - rounded value

2 A

Connector cross-section (max.)

0.50 mm²

Connection

Spring-loaded

Thread type connection side

M12

Thread type (wiring and installation)

M12

Contact material

CuZn

Contact surface

Gold plated

IP67

Min. temperature

-25 °C

Max. temperature

+85 °C

Seal type

Screw-on

Manufacturer part #

99-1487-812-08

Content

1 pc(s)

Type

Cable connector, M12 x 1, can be shielded

Nominal voltage (details)

60 V

Nominal current (details)

4 A

Thread type

M12

Contamination level

3

Connector cross section


0.5 mm²

Pins

8

Connection

Screws

Cable diameter (details)

6 mm

Temperature range

-25 - +85 °C

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 746853 binder 99-1487-812-08 Series 713, Sensor / Actuator Plug Connector M12, Screw Closure, Straight

User & Safety Instructions

User & Safety Instructions 746853 binder 99-1487-812-08 Series 713, Sensor / Actuator Plug Connector M12, Screw Closure, Straight

Description

Largely insensitive to vibration thanks to the constant spring clamping. Advantages of this connector include the short assembly time and uniform pressure of the lead on the contact. Durable quality from Binder®.
