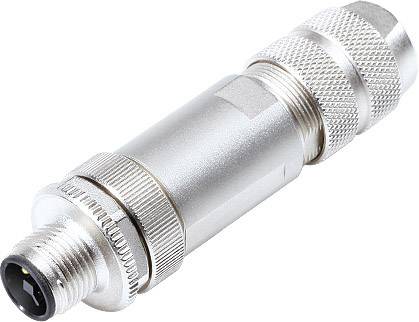

A silver industrial plug connector with knurled handles and a threaded screw, suitable for robust connections.

Image similar

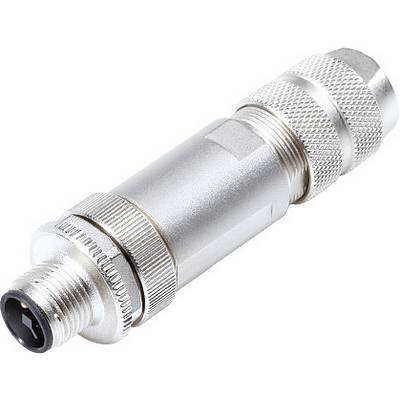

A silver industrial plug connector with knurled handles and a threaded screw, suitable for robust connections.

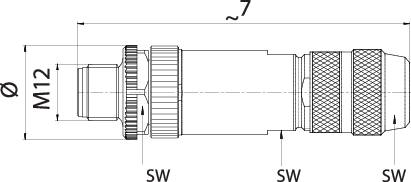

'M12 Connector' technical drawing: dimensions, thread area, and structural components highlighted.

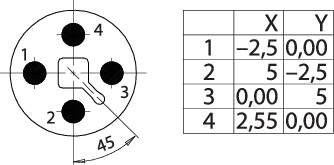

A technical drawing shows a circular arrangement with numbered holes and their dimensions on the left, and a table with X and Y coordinates for four points on the right.

'Technical drawing of an M12 connector, showing dimensions and construction details.'

Technical Drawing: Circle with four numbered holes, connected to a table. Table shows X, Y coordinates for each point 1 to 4.

1/5

Image similar

Product type

Mini DIN connector

Connector type

Plug, straight

Total no. of pins

4

Connection

Screws

Content

1 pc(s)

Datasheet (PDF)

Deutsch (Deutschland)

binder

Fast track dispatch on Mon, 6 Jul

27 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 26.04 / piece)

€ 26.04

plus VAT.

Report legal concerns

Technical specifications

Type: Binder

Product type: Mini DIN connector

Connector type: Plug, straight

Total no. of pins: 4

Connection: Screws

Content: 1 pc(s)

Max. temperature: +85 °C

Nominal current: 12 A

Min. temperature: -40 °C

Nominal current - rounded value: 12 A

Seal: Screws

Nominal voltage: 63 V

Contact material: CuZn

Case material: PA

: 16

Connection angle: 180°

Manufacturer part #: 99 1631 812 04

Number of pins: 4

Min. cross section: 1.50 mm²

Cross-section range: 1.50 mm² (min)

Feature: T-coded
shielding option

: IP67

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 1664667 binder 99 1631 812 04 Mini DIN connector Plug, straight Total number of pins: 4 1 pc(s)
