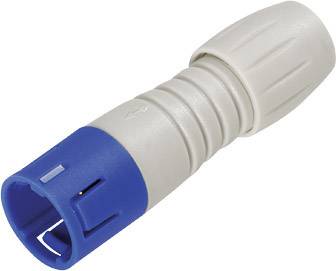

A cylindrical adaptor in blue and grey, likely an electrical connector or cable attachment.

Image similar

A cylindrical adaptor in blue and grey, likely an electrical connector or cable attachment.

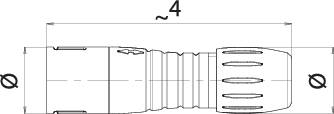

Technical drawing of a cylindrical component with dimensional specifications. At the top, the number '4' is displayed.

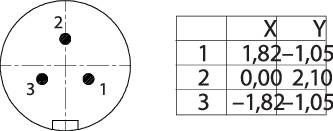

'Drill image with three numbered drill holes and table with X-Y coordinates: 1 (182, 250), 2 (0, 210), 3 (-182, 250).'

1/4

Image similar

binder

Datasheet (PDF)

Deutsch (Deutschland)

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 7.55 / piece)

€ 14.28

-47 %

€

Only 2 Piece(s) available

Report legal concerns

Technical specifications

Connector type: Plug, straight

Total no. of pins: 3

Connection: Soldering

Factory colour: Blue

Content: 1 pc(s)

Max. temperature: +85 °C

Nominal current: 3 A

Min. temperature: -25 °C

Nominal current - rounded value: 3 A

Leading contact (PE): No

Nominal voltage: 125 V

Contact material: Brass gold plated

Cable Ø (max.): 5 mm

Cable Ø up to: 3 mm

Case material: PA (UL 94 V-0)

Cable Ø range: 3 - 5 mm

Cross-section range: 0.25 mm² (max)

: IP67

Manufacturer part #: 99 9205 460 03

Type: Binder

max. cross section: 0.25 mm²

Number of pins: 3

Connection angle: 180°

: 24

Product type: Micro DIN connector

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 1665858 binder 99 9205 460 03 Micro DIN connector Plug, straight Total number of pins: 3 1 pc(s)
