Image similar

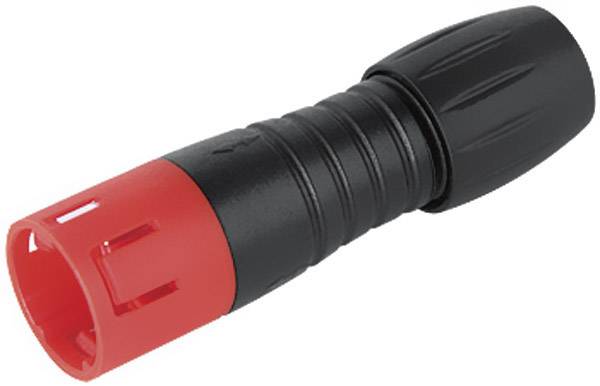

binder 99 9214 050 05
Product type
Bullet connector
Connector type
Connector, straight
Total no. of pins
5
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 13.99 / piece)
€ 13.99
incl. VAT
14-day return policy included
Highlights & Details
binder 99 9214 050 05
- IP67
Technical specifications
- Type
99 9214 050 05
- Product type
Bullet connector
- Connector type
Connector, straight
- Total no. of pins
5
- Connection
Soldering
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
5 A
- Min. temperature
-40 °C
- Nominal current - rounded value
5 A
- Seal
Snap-in
- Nominal voltage
60 V
- Contact material
Au (gold)
- Cable Ø (max.)
5 mm
- Cable Ø up to
3 mm
24
- Connection angle
180°
- Manufacturer part #
99 9214 050 05
- Cable Ø range
3 - 5 mm
- Colour code
Red
- Number of pins
5
- max. cross section
0.25 mm²
- Cross-section range
0.25 mm² (max)
IP67 (when connected)
- Series
620
Documents & Downloads
Datasheet
Datasheet 717906 binder 99 9214 050 05
User & Safety Instructions
User & Safety Instructions 717906 binder 99 9214 050 05
Description
As a further expansion stage of the successful series 620 are cable plug and sockets with colored contact insert and flange connector immediately in the colors red, blue and green are available. It allows the user the possibility of color coding the commandments and the game room in relation to the design of the final product.
This text is machine translated.
This text is machine translated.
