Name: BLOCK PVSE 230/48-10 Rail mounted PSU (DIN) 48 V DC 10 A 480 W No. of outputs:1 x Content 1 pc(s)
Brand: BLOCK
SKU: 1399526
Availability: BackOrder

An industrial power supply unit with 'BLOCK' printed on it; orange front panel, grey housing; technical details and certification marks on the side.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 555.00 / piece)

€ 555.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Primary switching regulator, Power Vision

Stabilised and adjustable secondary voltage
Up to 200% Real Power Boost for 4 seconds
Top boost for triggering line protection switches
DC OK signalling
Stand-by-Pri.
Parallel schaltba
Service friendly plug spring plug system
Optionally with active inrush current limitation

Technical specifications

Nominal input voltage: 110 - 240 V/AC

Type: Synchronised

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Output voltage: 48 V DC

Inputs: 1

Input voltage: 85 - 264 V/AC
120 - 373 V DC

Input voltage (max.): 264 V AC

Max. output current: 10 A

Output current (max.) - rounded: 10 A

: 480 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 48 V DC

No. of outputs: 1 x

Connection: Spring-loaded terminal

Dim: (L x W x H) 187.5 x 97 x 127 mm

Weight: 2300 g

Output voltage (max.): 52 V DC

Output voltage (min.): 33 V DC

Manufacturer part #: PVSE 230/48-10

Content: 1 pc(s)

MTBF: 500000 h

PSU features: Adjustable voltage output

Width: 97 mm

Height: 127 mm

Length: 187.5 mm

: IP20

Max. temperature: 70 °C

Min. temperature: -25 °C

Type: PVSE 230-48-10

Efficiency: 91 %

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Power

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

BLOCK PVSE 230/48-10 Rail mounted PSU (DIN) 48 V DC 10 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1399526

Available soon

Conrad Electronic

This article

480 W

264 V AC

48 V DC

Adjustable

110 - 240 V/AC

10 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 555.00^*

BLOCK PVSE 400/30-25 Rail mounted PSU (DIN) 30 V DC 25 A 750 W No. of outputs:1 x Content 1 pc(s)

Item no:1399527

Available soon

Conrad Electronic

750 W

550 V AC

30 V DC

Adjustable

400 - 500 V/AC

25 A

340 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 579.00^*

BLOCK PVSE 230-12-10 Rail mounted PSU (DIN) 12 V DC 10 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:1399521

Unavailable

Conrad Electronic

120 W

264 V AC

12 V DC

Adjustable

100 - 240 V/AC

10 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 305.00^*

BLOCK PVSE 230-12-6 Rail mounted PSU (DIN) 12 V DC 6 A 72 W No. of outputs:1 x Content 1 pc(s)

Item no:1399522

Unavailable

Conrad Electronic

72 W

264 V AC

12 V DC

Adjustable

100 - 240 V/AC

6 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 249.99^*

BLOCK PVSE 230-24-5 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:1399524

Unavailable

Conrad Electronic

120 W

264 V AC

24 V DC

100 - 240 V/AC

5 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 249.99^*

BLOCK PVSE 230/24-20 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1399523

Unavailable

Conrad Electronic

480 W

264 V AC

24 V DC

Adjustable

110 - 240 V/AC

20 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 435.00^*

BLOCK PVSE 400/48-10 Rail mounted PSU (DIN) 48 V DC 10 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1399528

Unavailable

Conrad Electronic

480 W

550 V AC

48 V DC

Adjustable

400 - 500 V/AC

10 A

340 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 315.00^*

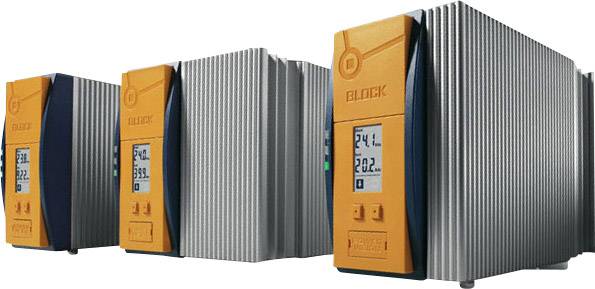

BLOCK PVSE 400/48-20 Rail mounted PSU (DIN) 48 V DC 20 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:1399529

Unavailable

Conrad Electronic

960 W

550 V AC

48 V DC

Adjustable

400 - 500 V/AC

20 A

340 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 509.00^*

BLOCK PVSL 400/24-20 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1399530

Unavailable

Conrad Electronic

480 W

550 V AC

24 V DC

Adjustable

400 - 500 V/AC

20 A

340 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Documents & Downloads

Datasheet

Datasheet 1399526 BLOCK PVSE 230/48-10 Rail mounted PSU (DIN) 48 V DC 10 A 480 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1399526 BLOCK PVSE 230/48-10 Rail mounted PSU (DIN) 48 V DC 10 A 480 W No. of outputs:1 x Content 1 pc(s)

Description

Double Input voltage 230 and 400 V/AC

This text is machine translated.

Description

Double Input voltage 230 and 400 V/AC

This text is machine translated.
