Bourns 3540S-1-202L Precision potentiometer 10-pos 2 W 2 kΩ 1 pc(s) Piece

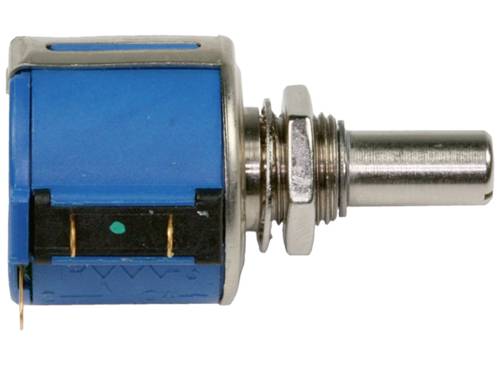

A blue, rectangular rotary switch with a metal shaft and two visible terminals on the left side, placed on a neutral background.

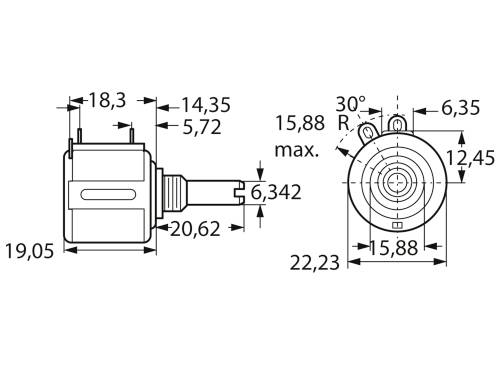

Technical drawing of an electrical component with dimensions in millimetres. Side view on the left and top view on the right.
1/2
Packaging type
Piece
Product type
Precision potentiometer
Potentiometer features
10-pos
Resistance
2 kΩ
Resistance characteristic
linear
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
6 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 47.80 / piece)
€ 47.80
prav.tax.untaxed incl. VAT
plus € 2.00
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 6 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Precision potentiometer, 10 RPM, 2 kΩ, 2 W, linear, Solder lug, 3540S-1-202L

  • 2 kΩ
  • linear

Technical specifications

Packaging type

Piece

Product type

Precision potentiometer

Potentiometer features

10-pos

Resistance

2 kΩ

Resistance characteristic

linear

Power rating

2 W

Switching voltage (max.)

447 V AC

Connection

Solder tag

Mechanical angle

3600°

Electrical angle

3600°

Type

straight

Axle type

Slotted

Axle Ø

6.34 mm

Thread size

3/8"

Length

22.2 mm

Width

20 mm

Min. temperature

1 °C

Max. temperature

125 °C

Content

1 pc(s)

Type

3540S-1-202L

Dim

(L x W) 22.2 mm x 20 mm

RoHS-compliant

Yes

No. of rotations

10

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2996299 Bourns 3540S-1-202L Precision potentiometer 10-pos 2 W 2 kΩ 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2996299 Bourns 3540S-1-202L Precision potentiometer 10-pos 2 W 2 kΩ 1 pc(s) Piece

Description

Wire wound potentiometer Bourns 354. Design: With central mounting and axle with adjustment slot, linearity: ±0.25 %, operating temperature: +1.0 to +125 °C, resistance tolerance: ±5.0 %, test voltage: 1000 VAC, central mounting: 3/8 inch-32 UNEF. As 10-gear design type 3540S. Capacity: 2.0 W at +70 °C, 0 W at +125 °C, operating voltage: Max. 447 VAC, TK: ±50, rotation angle electrical and mechanical: 3600° (+10°/–0°). Type 2K0

This text is machine translated.

Scope of delivery

  • 3540S-1-202L.
