Boxexpert BXPFAG540360160-P01 Switchboard cabinet 540 x 360 x 160 Acrylonitrile butadiene styrene Light grey 1 pc(s) Pie

The BXPFAG540360160-P01 of the Perle series from BOXEXPERT is a cabinet housing made of ABS plastic, which is suitable for both indoor and outdoor use. It is easy to handle and very quick to install.Through the integrated inner hinge, the lid can be opened like a door, so that it does not have to be set aside for quick post-processing. Due to its 30% thicker outer walls, the housing has a high impact resistance of IK10 and good insulation and is still easy to transport. In addition, we have good water, as well as dust-proof performance of IP 67. This series is a cost-effective alternative to all steel wall cabinets.

PRODUCT DESCRIPTION

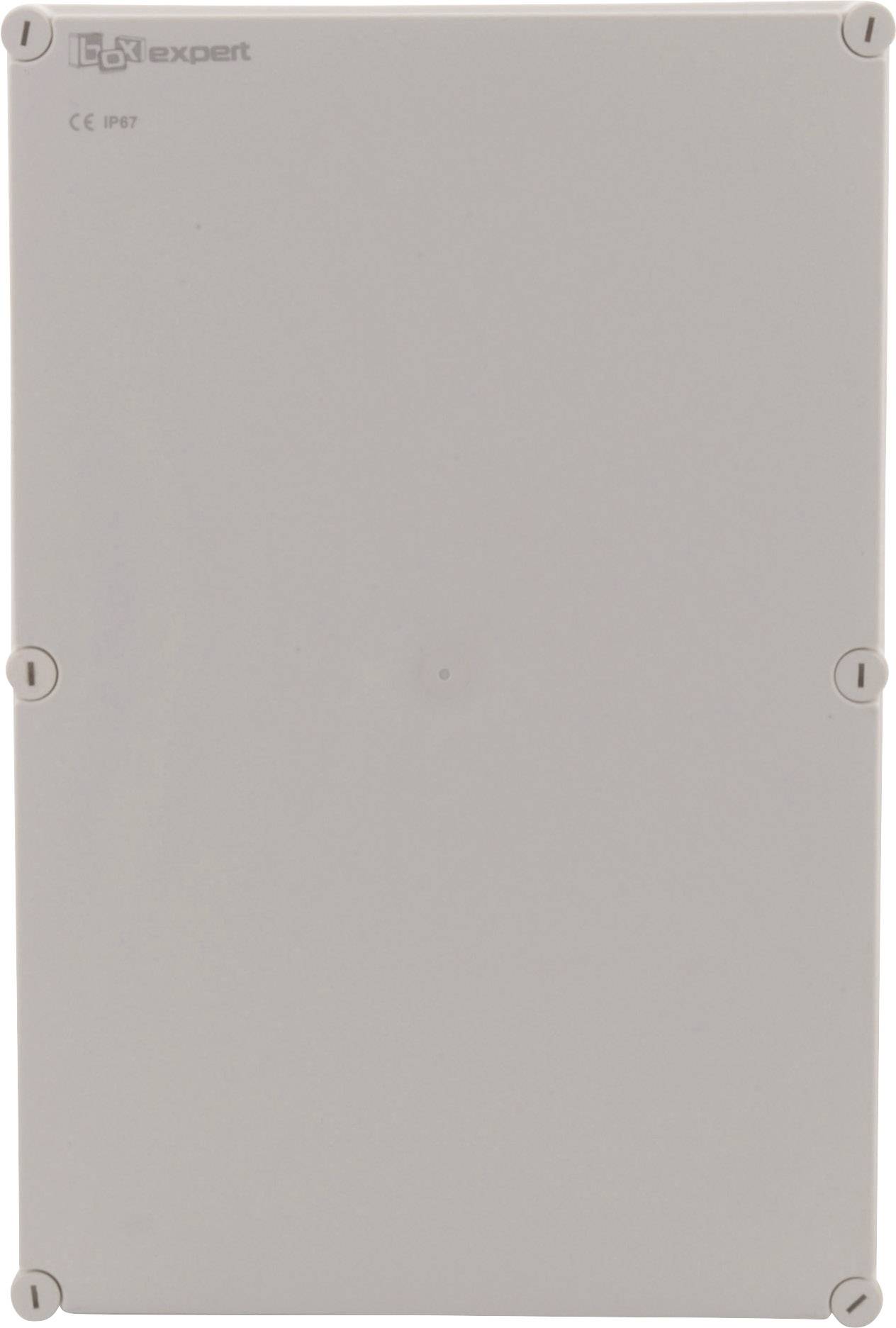

The Perle control cabinet series made of acrylonitrile butadiene stirene copolymer (in short: ABS) combines the advantages of an industrial enclosure with those of a control cabinet. Thus, the Perle control cabinet can be tightly closed using captive plastic screws and meets the IP67 protection class in accordance with DIN EN 60529/DIN 40050 due to the foamed PUR seal. The lower part of the housing and cover are optimally interlocked via the spring-groove principle and thus protect the components against external influences such as dust and moisture. The ABS material offers the advantage of resistance to corrosive loads as well as resistance to alkali, oils and salts, for example, compared to comparable metal cabinets. Compared to similar products, the housing has a maximum impact strength of IK10 through the 30% thicker outer walls, which is in search of the same in plastic casings.

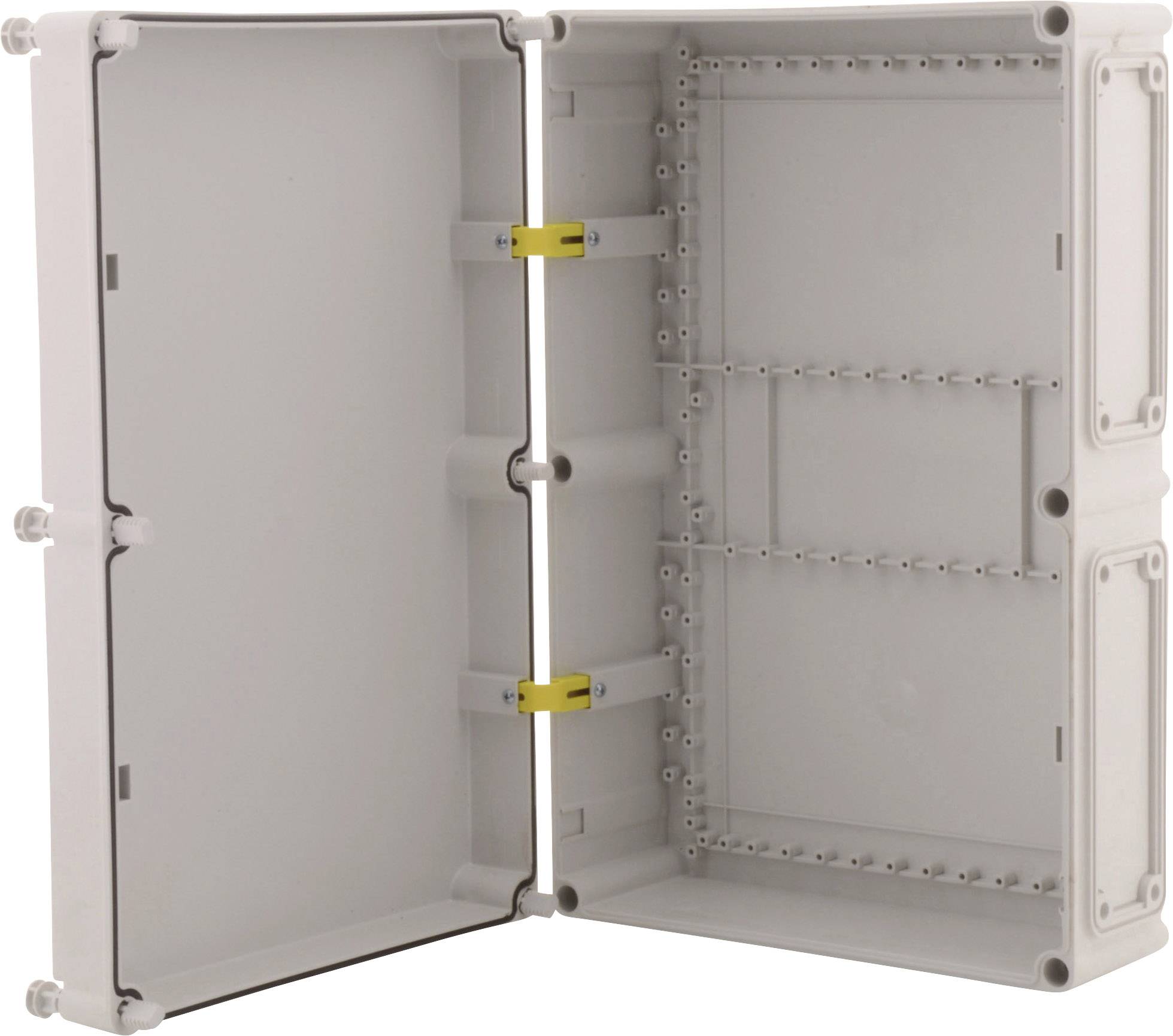

Although the PERLE series cabinet offers an optimum locking mechanism by means of the plastic screws, electronic installations often require maintenance or replacement. Integrated hinges, which are located inside the housing, ensure that the housing cover can be opened like a control cabinet door. The hinges can be mounted on both sides, allowing the user to select a left or right opening door. Due to the position of the hinges, they are not exposed to any weather and therefore completely wear-resistant. In addition, the external image of the control cabinet is not influenced by the internal mounting.

VERSATILE MOUNTING OPTIONS

The view into the interior of the Perle ABS series allows the various possibilities of mounting devices to be guessed. We have already incorporated many ideas from customers during the design phase of the housings, which enables maximum flexibility in the installation. Various mounting domes enable easy mounting of mounting rails, mounting plates, own PCBs or other devices with corresponding brackets. The mounting options are spread over the entire interior, so that the available space can be used to the maximum.

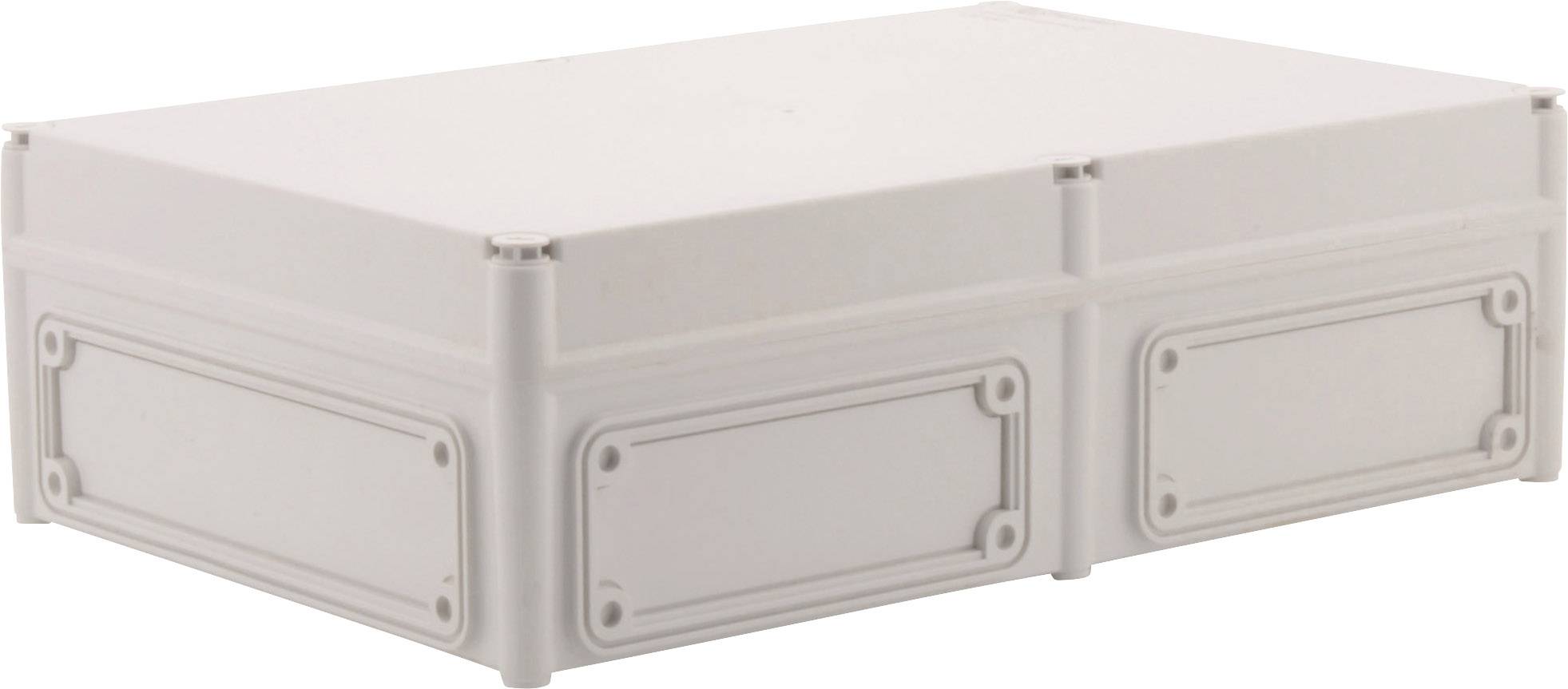

PRE-EMBOSSING FOR CABLE FLANGE PLATES

The housing-lower parts of the series Perle are provided with pre-embossing for the use of cable flange plates. By using cable flange plates, the cable routing and preparation by cable glands or cable glands can be carried out in a separate processing step. This allows the assembly processes to be carried out independantly of each other, was a significant simplification of the entire production process. The knockouts can simply be broken out and then replaced with the fitted flange plates. Depending on the size of the housing, different sizes and a different number of preprints are available. Connections of adjacent housings can also be realized very easily.
