Buy Brennenstuhl 1293900 Motion detector White BM CZ 01

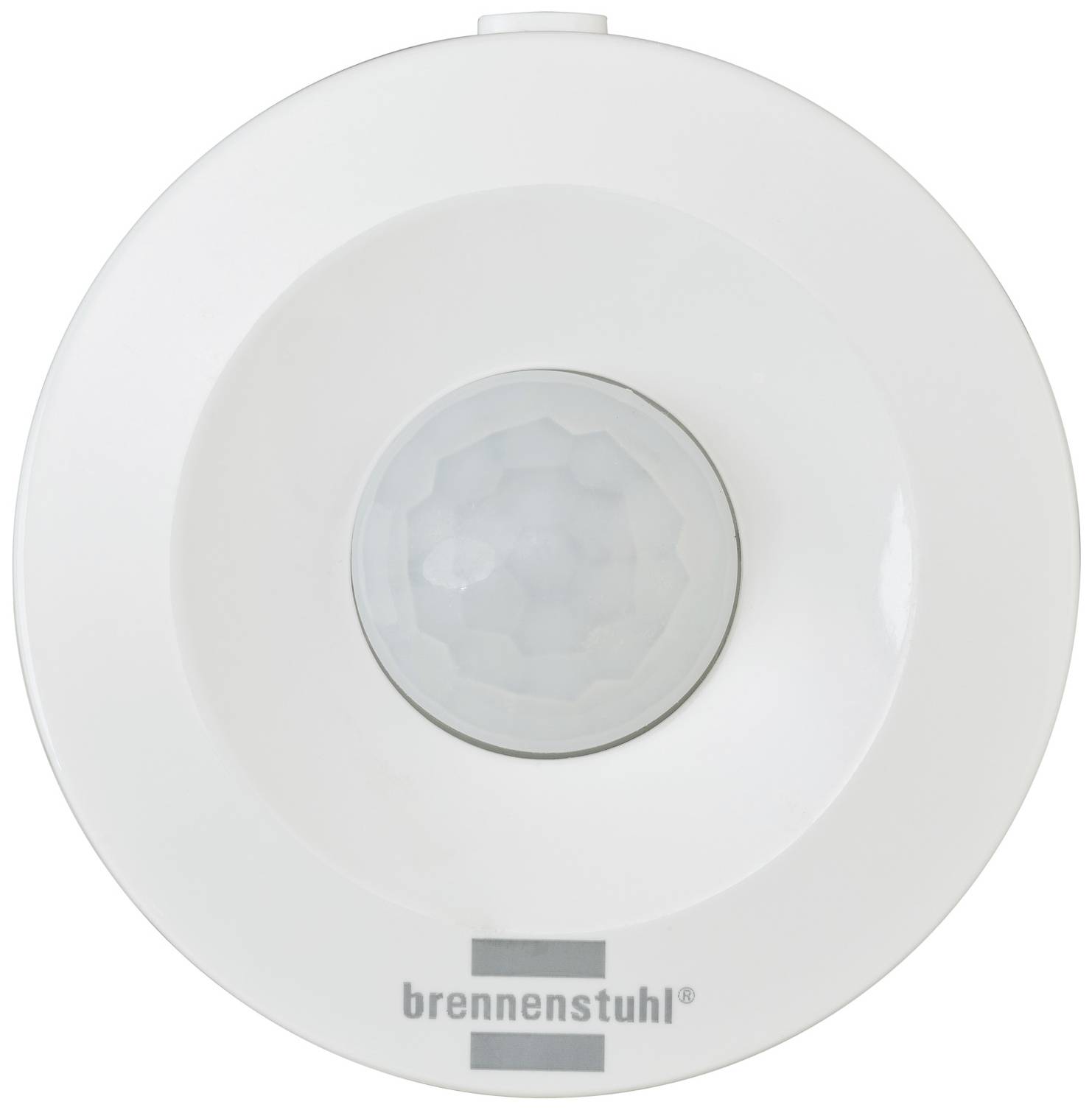

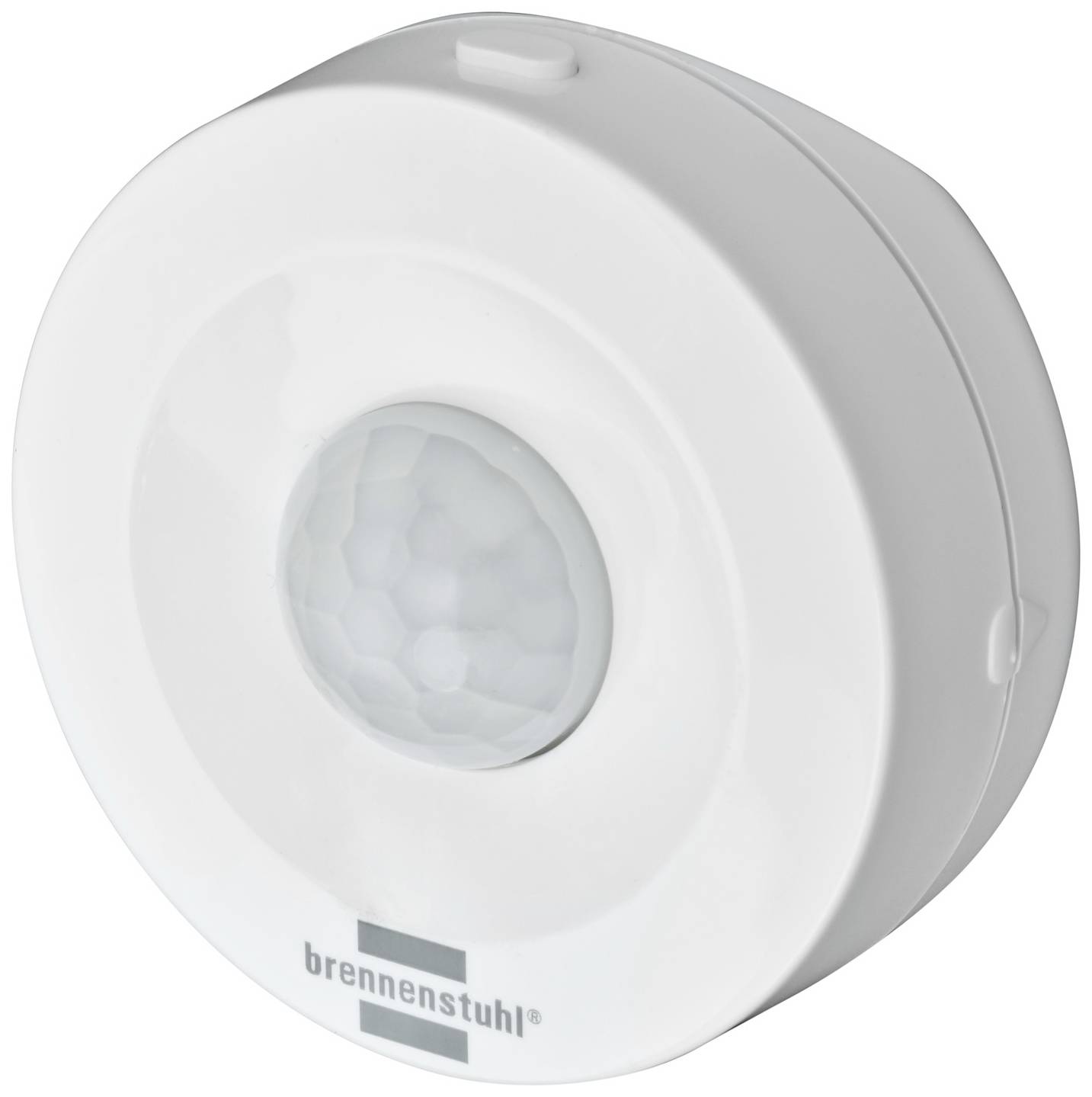

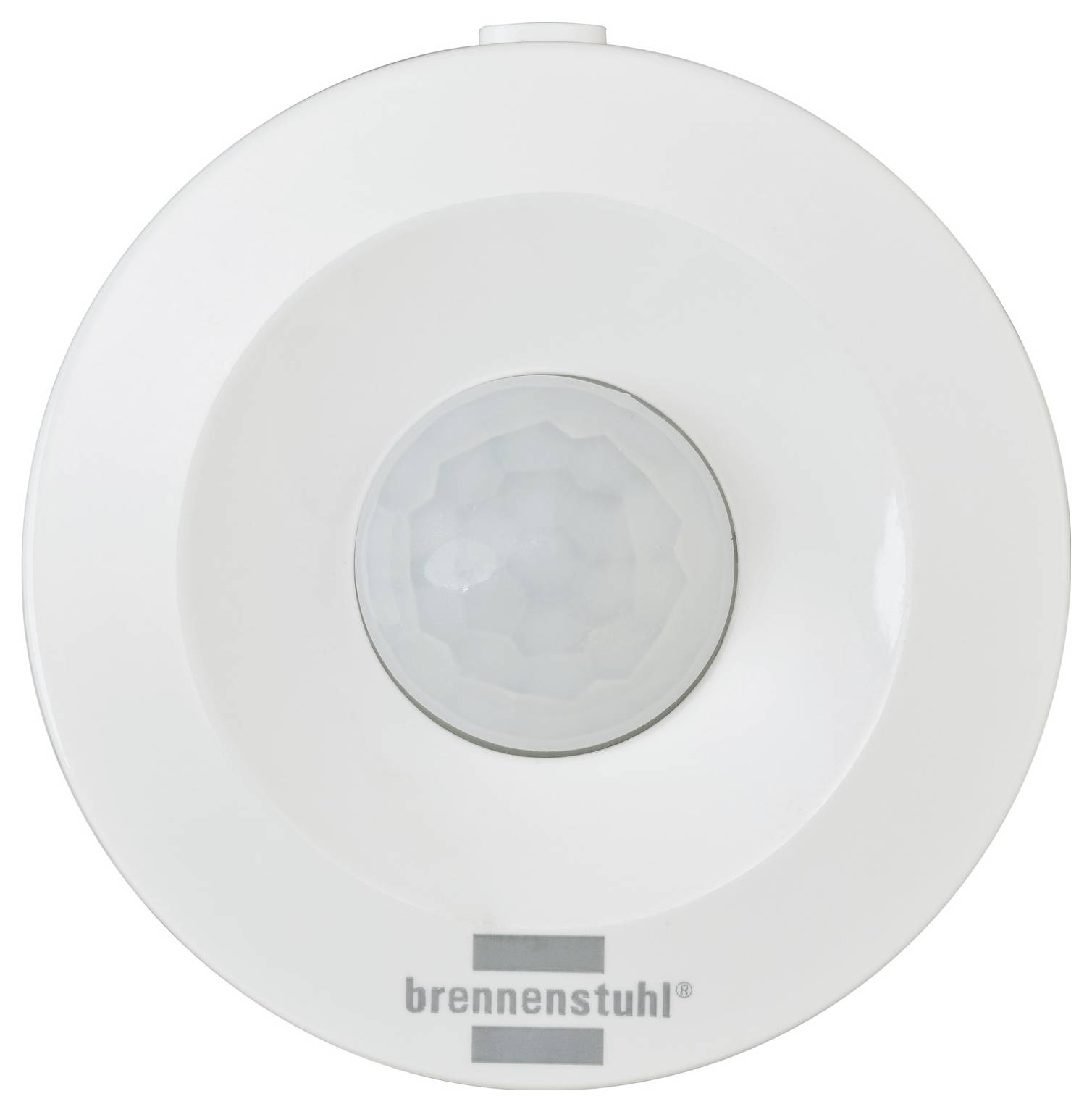

Round white motion sensor with central lens, branded Brennenstuhl, for automatic light or alarm activation.

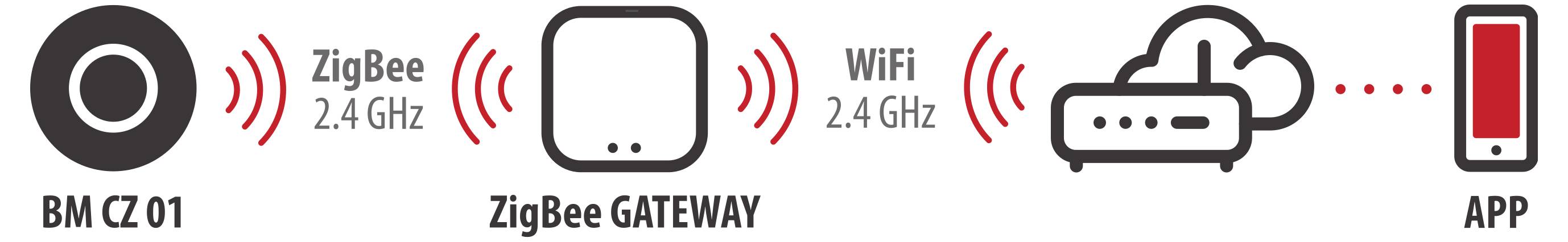

Diagram showing a ZigBee 2.4 GHz device (BM CZ 01) connecting to a ZigBee gateway, which links via WiFi 2.4 GHz to a cloud service and app on a phone.

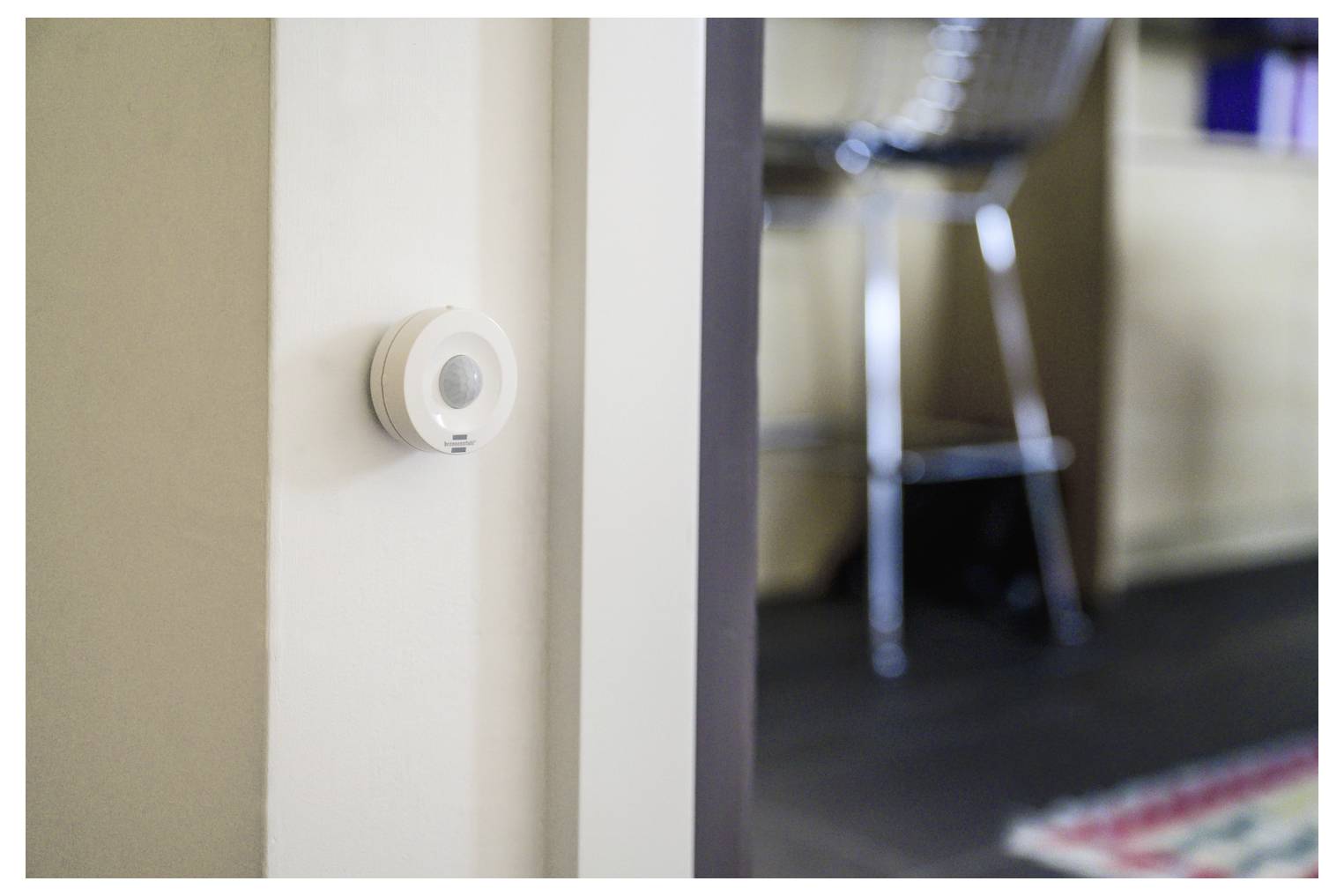

Small white motion sensor mounted on a wall near a doorway, with a blurred room and chair in the background.

1/4

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 21.00 / piece)

€ 21.00

plus VAT.

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Brennenstuhl®Connect Zigbee Motion Detector BM CZ 01

Use as warning device and light controlControl of devices up to 3600 W indoorsFree Brennenstuhl®Connect APP

Technical specifications

Product type: Motion detector

Transfer Standard (Smart Home): ZigBee

Max. switching capacity: 3600 W

Used at: Indoors

: IP20

Power supply (LOV): battery-powered

Operating voltage: 3 V

Data transfer (Smart Home): Wireless

Frequency: 2.4 GHz

: 30 m

Factory colour: White

Depth: 25 mm

(Ø): 47 mm

Weight: 30 g

Dim: (Ø x D) 47 mm x 25 mm

Hub: Required

: n.rel.

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2749853 Brennenstuhl 1293900 Motion detector White BM CZ 01

User & Safety Instructions

User & Safety Instructions 2749853 Brennenstuhl 1293900 Motion detector White BM CZ 01

Description

The Brennenstuhl Connect Zigbee motion detector BM CZ 01 from Brennenstuhl impresses with its quality and safety in all areas. Now you can track movements in your home from anywhere and anytime. In addition, the motion detector not only provides the warning option but also allows you to control other smart Brennenstuhl connect products such as, for example, Wi-Fi lamps so that the light goes on with the motion detection. When connecting, make sure to select the 2.4 GHz band. It not only provides more security in your home, but also impresses with the following features:

* Comfortable movement monitoring via the free Brennenstuhl Connect APP
* For the setup and use of the motion detector, the Brennenstuhl Zigbee gateway Art. No. 1294060 is required
* Radio frequency: 2.4 GHz WiFi
* Detection range max. 10m
* For indoor use
* History function of detected movements
* Battery life approx. 1 year
* Incl. Battery CR2450 and adhesive pad

This text is machine translated.

Features

Practical history function enables an exact temporal display of the detected movementsAbility to control other smart Brennenstuhl®Connect productsComfortable worldwide monitoring of movement via the free Brennenstuhl®Connect APPDetection range max. 10 m.Including battery CR2450 and adhesive pad.

Hints

The Brennenstuhl-Connect Zigbee gateway item is used for setting up and controlling the Smart Home Zigbee motion detector. No. 1294060 is required
