Brennenstuhl CEE power distributor 1151480020 400 V 16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 124.99 / piece)
€ 124.99
incl. VAT
14-day return policy included
Highlights & Details

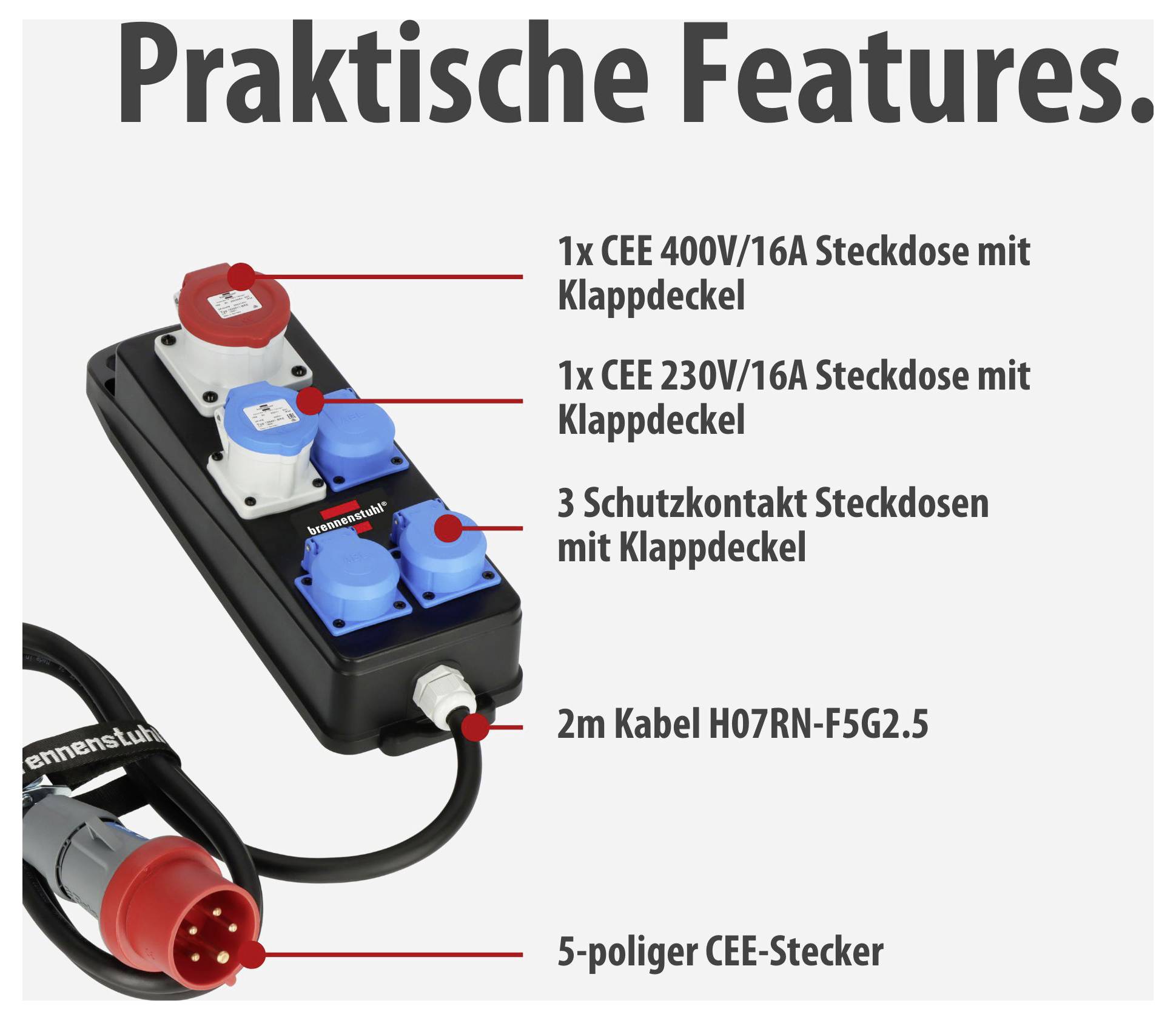

Portable power distributor BSV P 3x 230V/16A sockets, 1x CEE 230V/16A, 1x CEE 400V/16A, 2m H07RN-F5G2.5
- Cable length: 2m
- CABLE NAME: H07RN-F 5G2.5
- Protection class: IP44
- Plug:CEE 400V/16A 5-pin/-pin
- 3x earthing contact socket-outlets 230V/16A
- 1x CEE socket 230V/16A 3-pin/-pin
- 1x CEE socket 400V/16A 5-pin/-pin
- Case temperature resistance -30°C to +80°C.

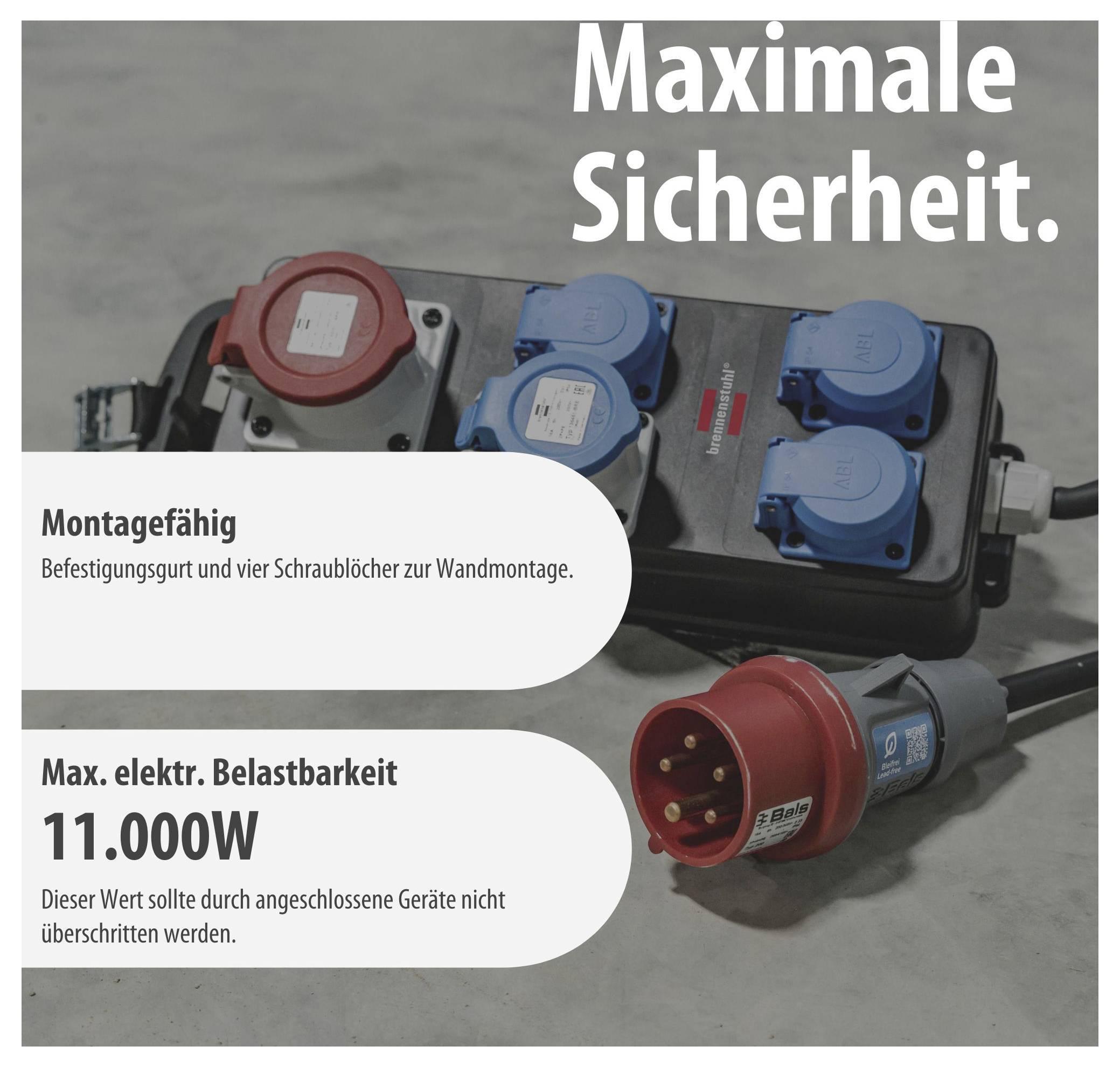

- Attachment strap and four screw holes for wall mounting
- Max. electronic. Power handling capacity 11.000W
Technical specifications
- Connection type A (or inputs): Line with plug. CEE-plug 5-pin, 400 V/16 A
- Connection type B (or outputs): CEE sockets (230 V and 400 V) and plug-in system socket type F (protective contact)
- Number of safety sockets: 3 earthing contact sockets 230 V/16 A with hinged lids
- CEE plug 400 V/16 A
- Outputs (details): 1x CEE socket 230 V/16 A 3-pin, 1x CEE socket 400 V/16 A 5-pin, and 3 protective contact sockets 230 V/16 A with hinged lids
- Inputs (CEE distributor): Plug system CEE 16 A 3P+N+PE (5p) 400 V
- Outputs (CEE power distributor): 1x CEE 230 V/16 A (3-pin) and 1x CEE 400 V/16 A (5-pin)
- CEE plug (input) 5-pin
- CEE 230 V socket 3-pin
- CEE 400 V socket 5-pin
- Product type
CEE power distributor
- No. of CEE connectors
2
- Nominal input voltage
400 V
- Nominal output voltage
230 V
- Nominal input current
16 A
IP44
- Cable length
2 m
- Cable standard
H07RN-F 5G 2,5 mm²
- Protection
Fuse Without. (Note: The device itself does not have an integrated fuse)
- Min. temperature
-30 °C
- Max. temperature
80 °C
- Standards
Quality sockets according to VDE 0620-1
- Factory colour
Black
- Weight
1780 g

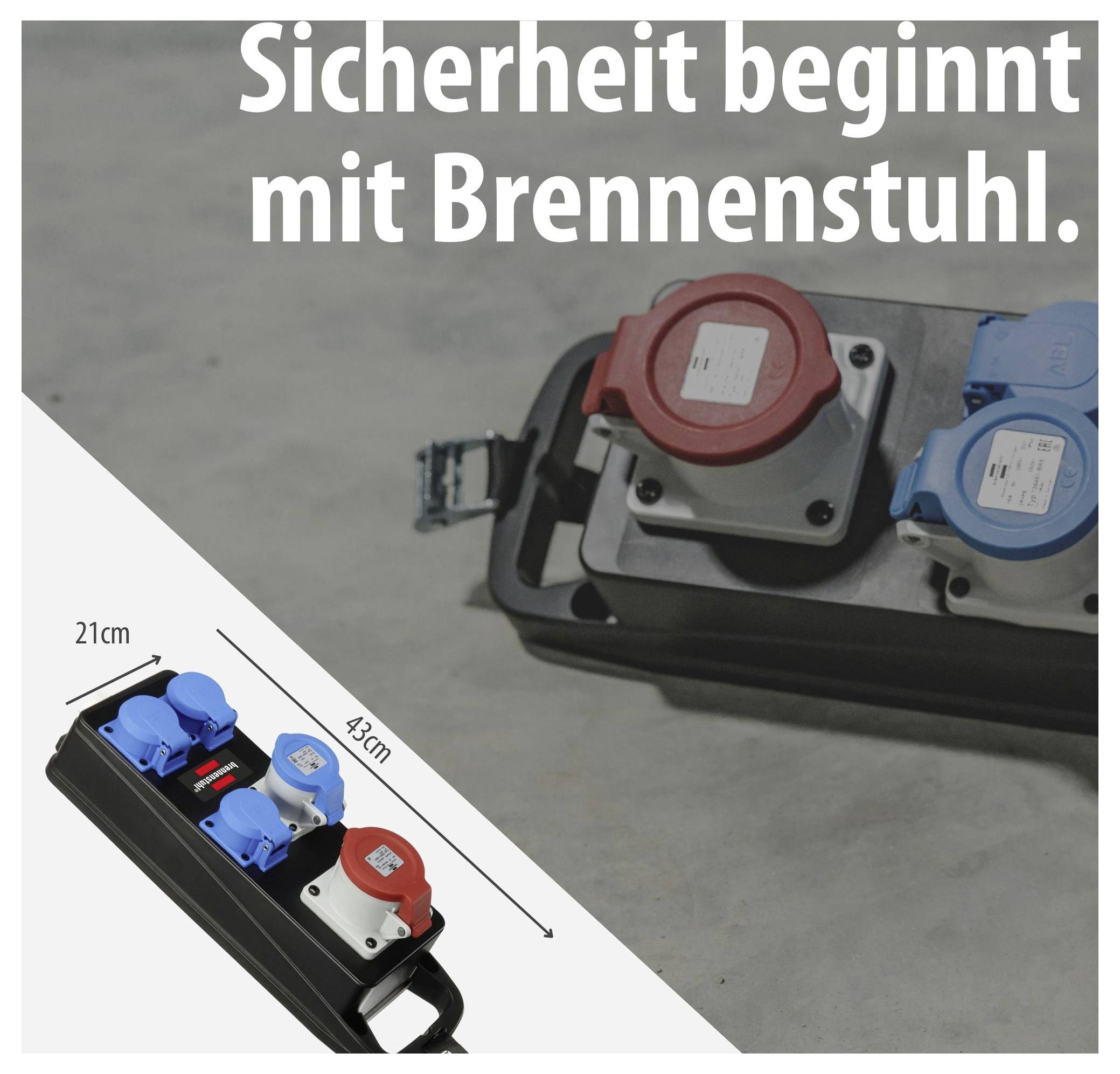

- Dim
(L x W x H) 43 x 21 x 12 cm
- Length
43 cm
- Width
21 cm
- Height
12 cm
- Type
Portable Power distributor BSV P
With 1x CEE 230 V/16 A and 1x CEE 400 V/16 A output
- Content
1 pc(s)
- Version
Cable
- Keyboard layout
German, QWERTZ
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3531657 Brennenstuhl CEE power distributor 1151480020 400 V 16 A
User & Safety Instructions
User & Safety Instructions 3531657 Brennenstuhl CEE power distributor 1151480020 400 V 16 A
Description

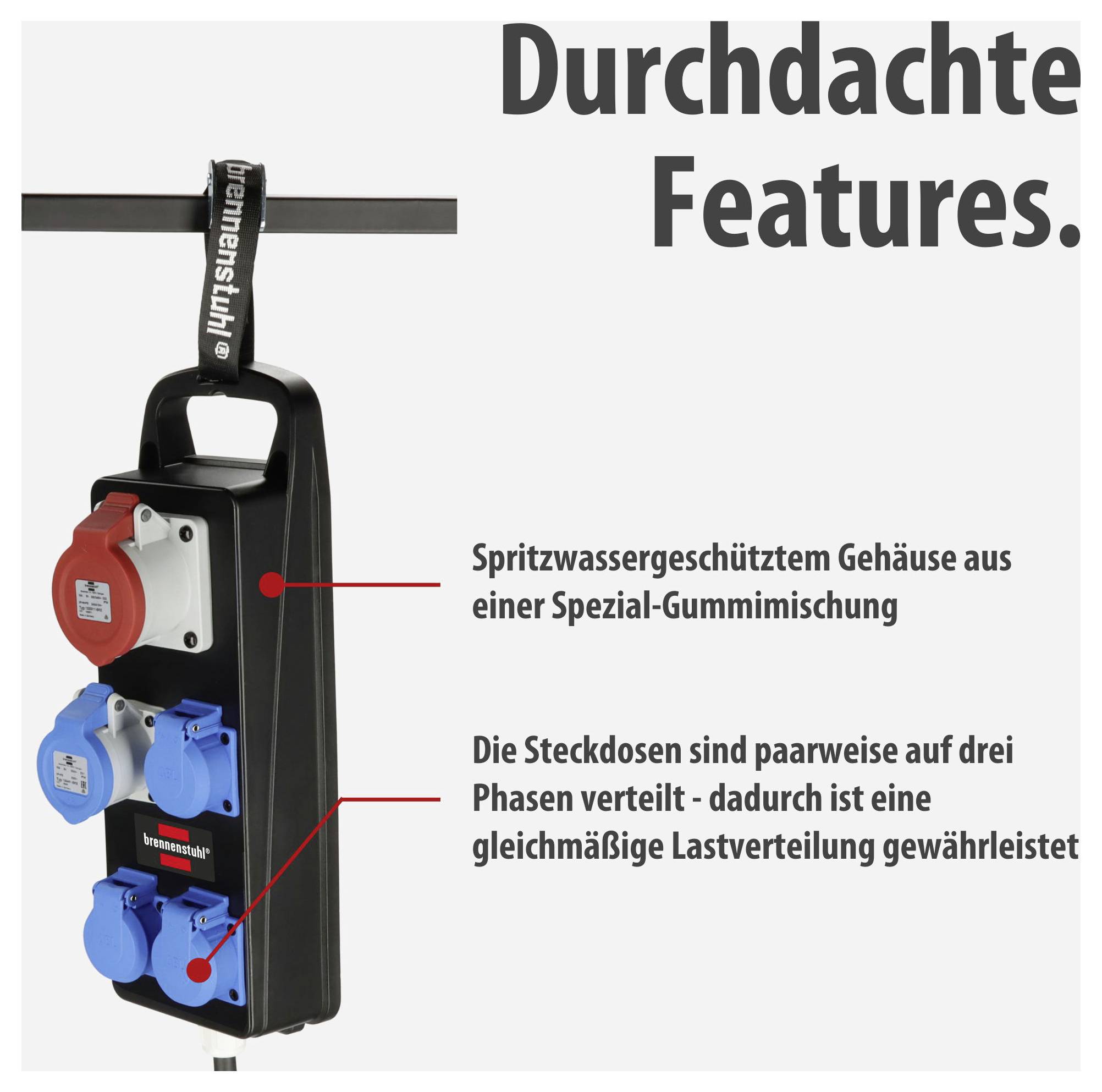

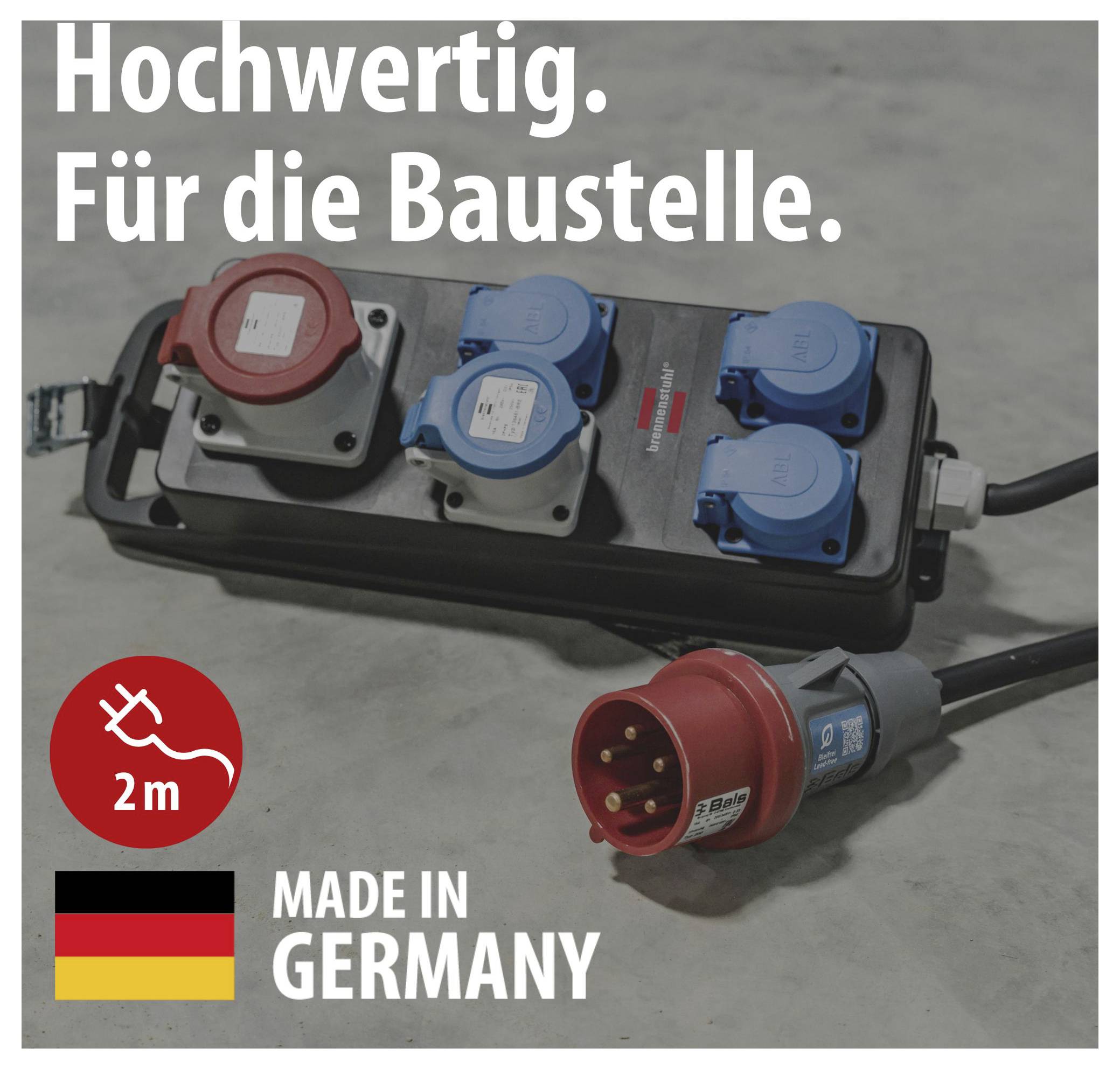

The portable power distributor BSV P from Brennenstuhl with 3 protective contact sockets 230V/16A, 1 CEE socket 230V/16A and 1 CEE socket 400V/16A is the ideal solution for outdoor use, for example on construction sites. With its water-proof casing made of a special rubber mixture and quality sockets according to VDE 0620-1 the robust multi-distributor is resistant to various oils, greases, petrol and acids, UV and ozone radiation. It also impresses with the following features:
Cable length: 2m
CABLE NAME: H07RN-F 5G2.5
Protection class: IP44
Plug:CEE 400V/16A 5-pin/-pin
3x earthing contact socket-outlets 230V/16A
1x CEE socket 230V/16A 3-pin/-pin
1x CEE socket 400V/16A 5-pin/-pin
Case temperature resistance -30°C to +80°C.
Attachment strap and four screw holes for wall mounting
Max. electronic. Power handling capacity 11.000W
This text is machine translated.
Cable length: 2m
CABLE NAME: H07RN-F 5G2.5
Protection class: IP44
Plug:CEE 400V/16A 5-pin/-pin
3x earthing contact socket-outlets 230V/16A
1x CEE socket 230V/16A 3-pin/-pin
1x CEE socket 400V/16A 5-pin/-pin
Case temperature resistance -30°C to +80°C.
Attachment strap and four screw holes for wall mounting
Max. electronic. Power handling capacity 11.000W
This text is machine translated.
Scope of delivery
- Portable power distributor BSV P 3x 230V/16A sockets, 1x CEE 230V/16A, 1x CEE 400V/16A, 2m H07RN-F5G2.5
