Buy Brennenstuhl CEE power distributor 1154890020 1154890020 400 V 32 A

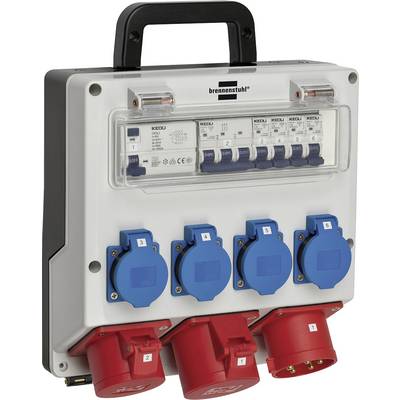

Portable electrical distribution box with handle, circuit breakers, and blue and red outlet sockets<br>

Electrical single-line diagram showing a 400V 32A CEE supply through 30mA RCD to five 230V branch circuits, each protected by a 16A type C breaker; one 16A CEE outlet and four 16A sockets.

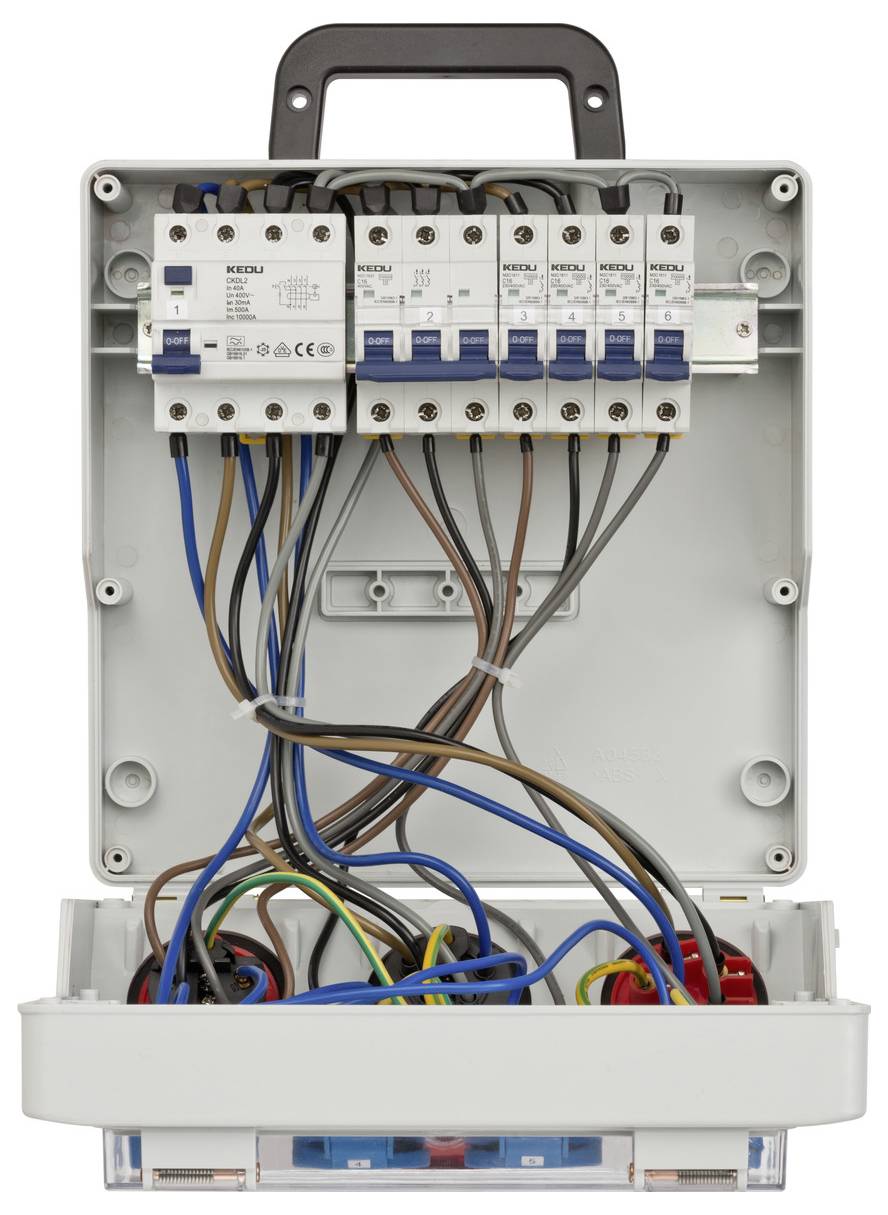

Open electrical distribution box with circuit breakers and wired connections, showing a detached lower compartment with cables exposed.

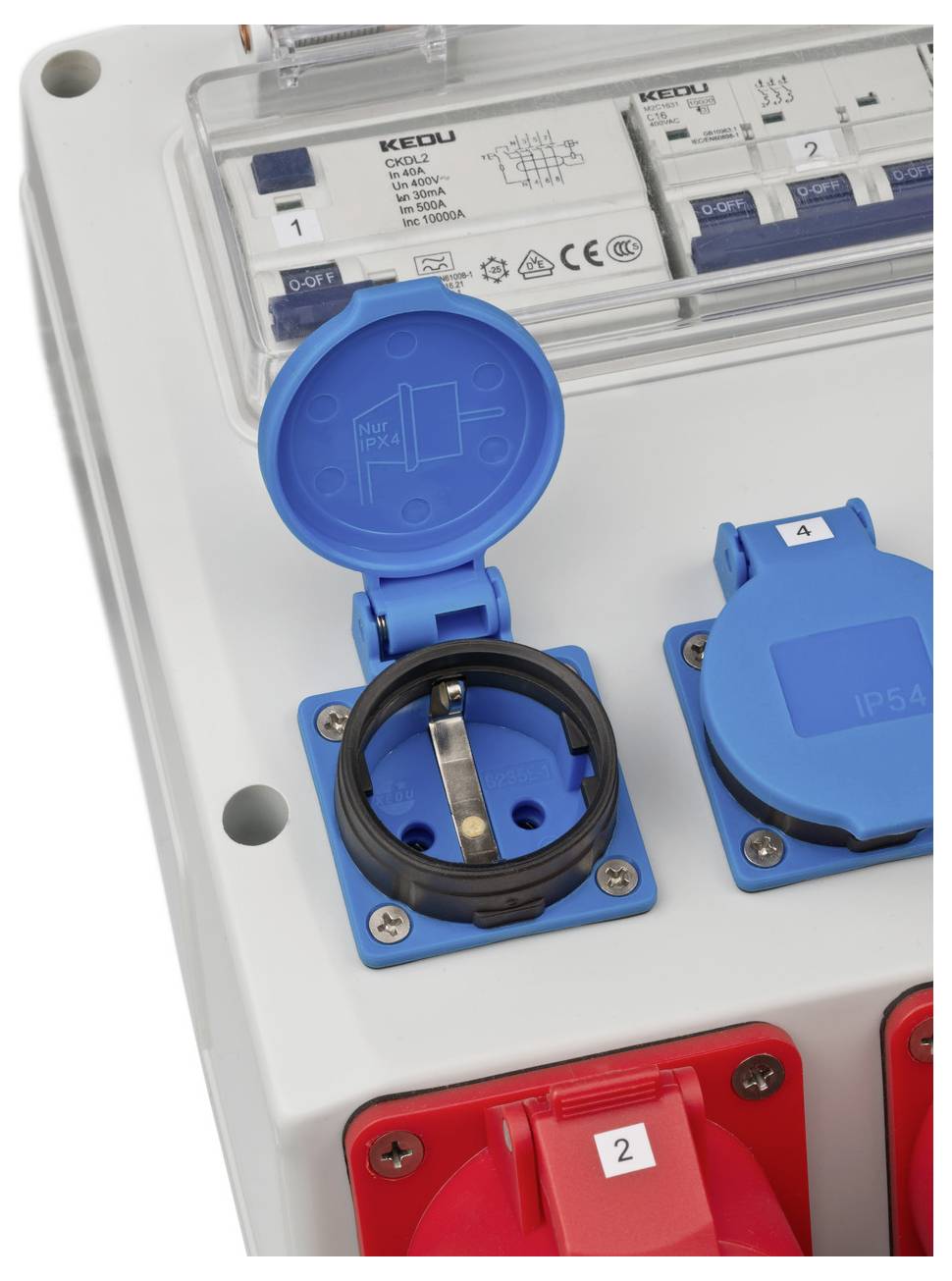

Electrical control panel with blue and red industrial power outlets and circuit breakers behind a clear cover.

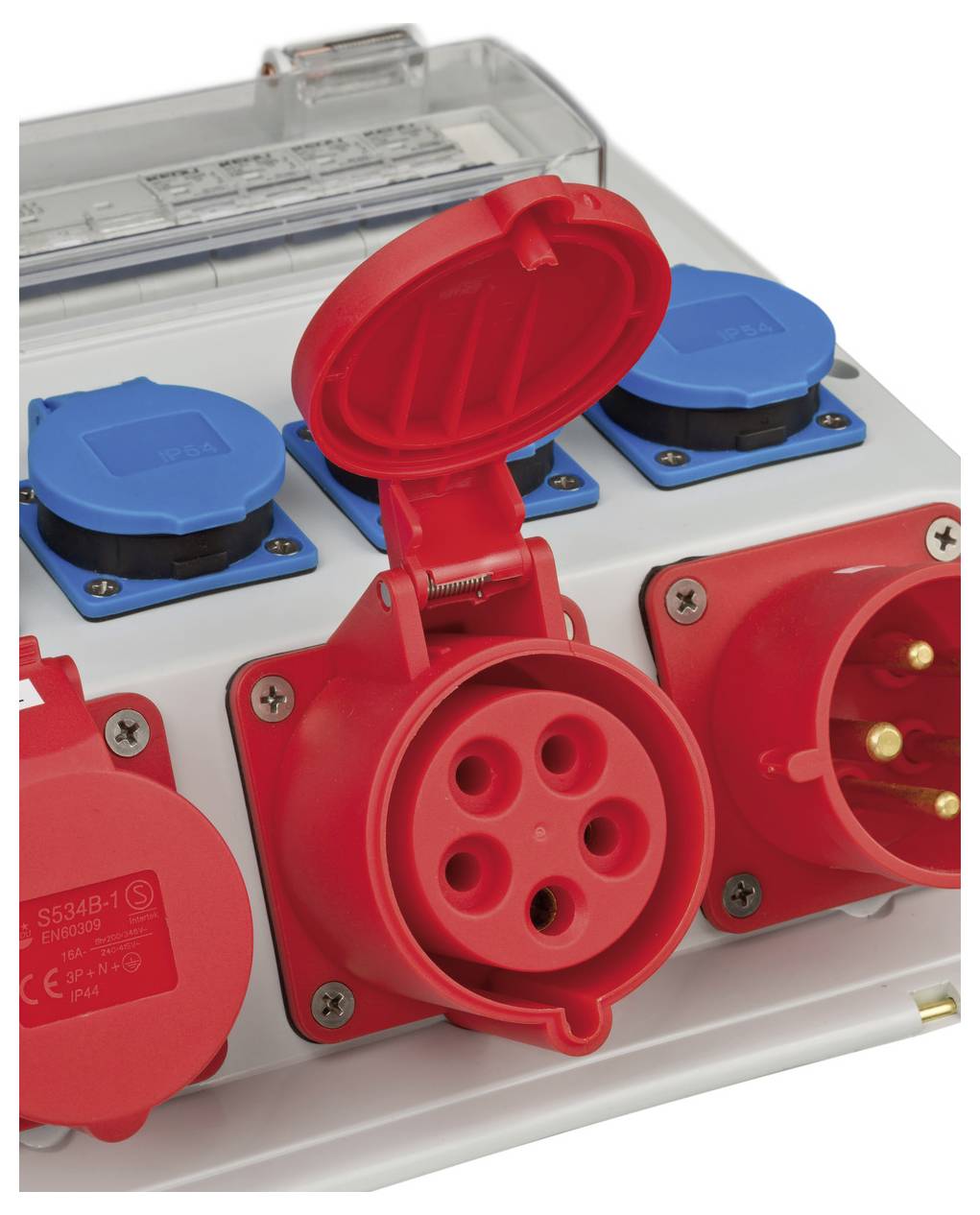

Close-up of an electrical power distribution box with red and blue industrial sockets and protective covers, showing multiple plugs and outlets.

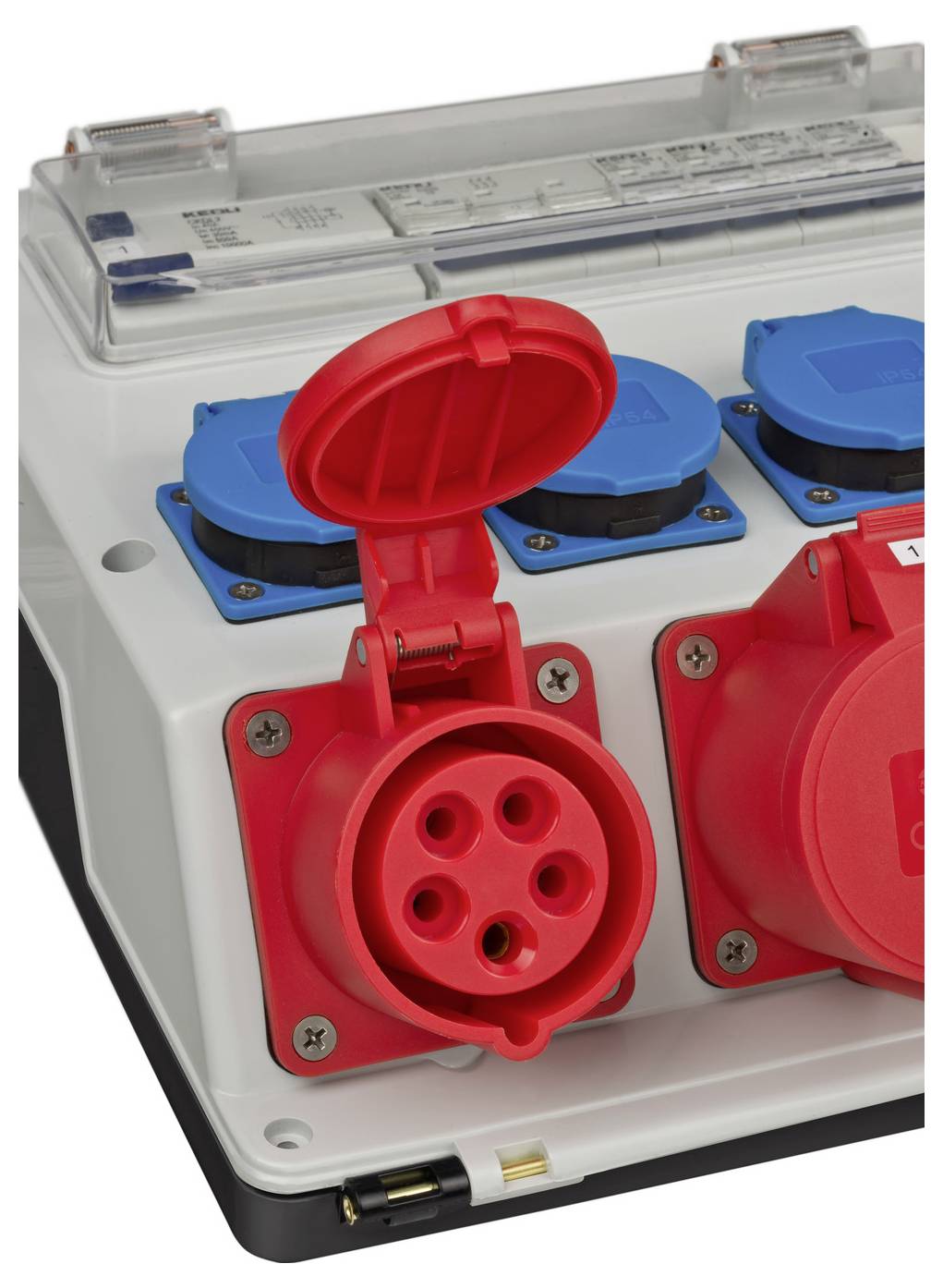

Close-up of a portable electrical power distribution box with red and blue industrial outlets and protective covers.

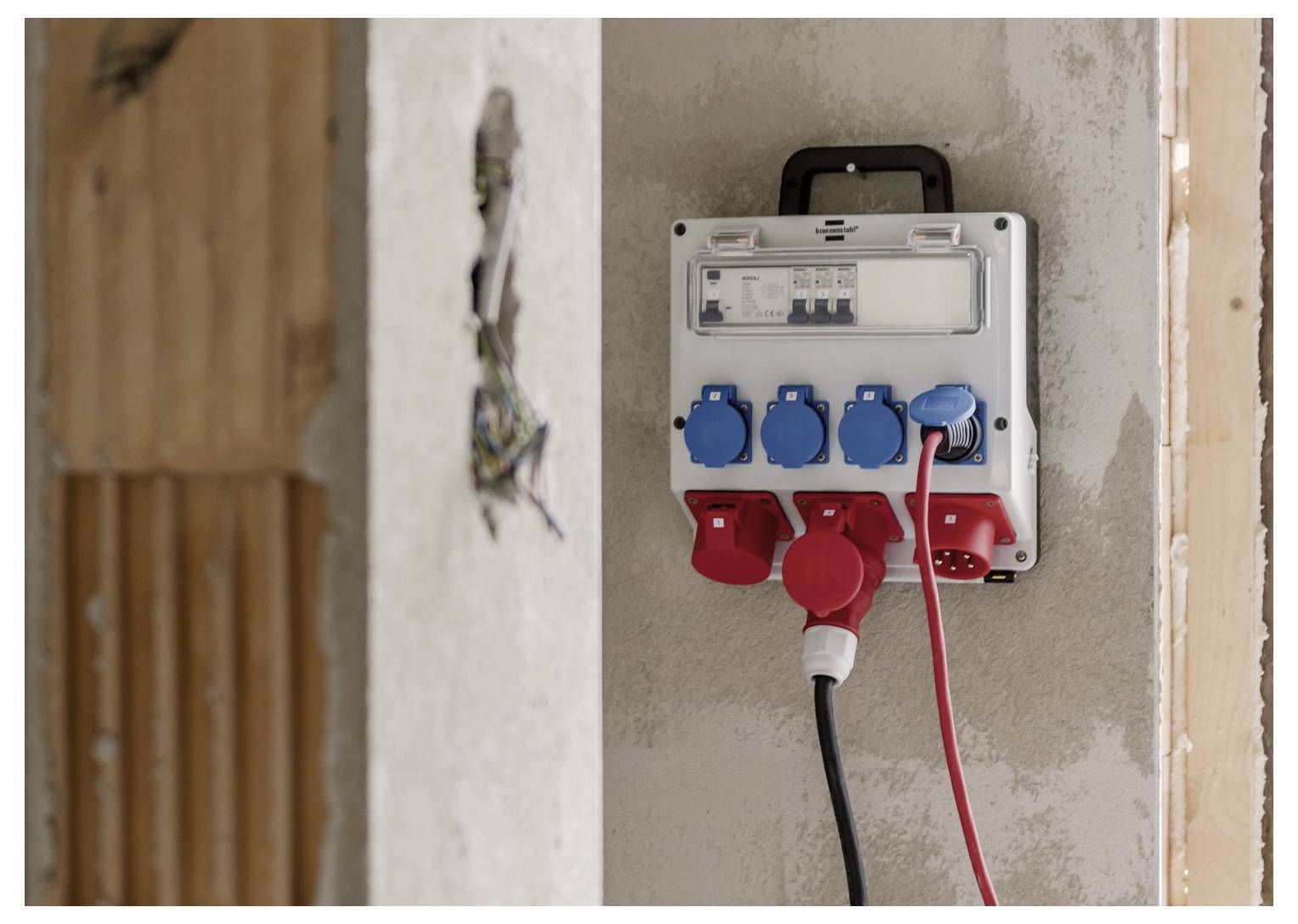

Wall-mounted electrical outlet box with blue and red sockets in a partially finished interior wall, with cords plugged in.

1/7

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

43 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 168.06 / piece)

€ 168.06

plus VAT.

14-day return policy included

Report legal concerns

Wall distributor 4/32 A IP44

Highlights & Details

Bruchund portable power distribution with Robust, impact-resistant plastic housing and ergonomic handle for easy transport
Wall distributor with 2 CEE-sockets, 4 protective contact sockets (protective contact sockets on all 3 phases distributed) and a connection socket
Wall distributor wired for connection, also protective cover for fuses ideal for industry and trade
Power distributor with FI-Safety switch 30 mA for more safety protects against possible electricity accidents

Technical specifications

Product type: CEE power distributor

No. of CEE connectors: 2

Type A: CEE plug (5-pin, 32 A)

Type B: CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector

No. of PG sockets: 4

Inputs: CEE-plug 400V/32A 5-pole

Outputs: 1 x CEE-coupling 400 V/16 A 5-pin · 1 x CEE-coupling 400 V/32 A 5-pin · 4x protective contact coupling 230V/16A

Nominal input voltage: 400 V

Nominal input current: 32 A

: IP44

Cable length: 0 cm

Protection: 1 x FI-circuit breaker 40 A 4-pin, 30 mA · 4 x Line safety switch 230 V/16 A 1-pin · 1 x Line safety switch 400 V/16 A 3-pin

Factory colour: Grey
Black
Red
Blue

Weight: 3.46 kg

Dim: (W x H x D) 290 x 140 x 380 mm

Width: 290 mm

Height: 140 mm

Inputs (CEE power distributor): CEE plug (5-pin, 32 A)

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector

Content: 1 pc(s)

Number of pins: 5

Depth: 380 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1763492 Brennenstuhl CEE power distributor 1154890020 1154890020 400 V 32 A

User & Safety Instructions

User & Safety Instructions 1763492 Brennenstuhl CEE power distributor 1154890020 1154890020 400 V 32 A

Description

The portable wall distributor of brennenstuhl captivates by its quality and safety in all areas. It is extremely robust and is ideal for use on construction sites or generally for industrial and craft area. The power distributor with its break-and impact-resistant plastic housing is ready for connection and can be easily attached to a wall. In addition, the power supply distribution by the following properties:

Rugged, breakage and shock-proof plastic housing
- Ergonomically shaped handle for easy transport
-FI-Safety switch 30 mA
Rating: IP44
Sockets: 1 x CEE 400 V/16 A, 1 x CEE 400 V/32 A, 4 x 230 V outlets
Input Connector: CEE 32 A 400 V
Protective cover for fuses

This text is machine translated.
