Buy AS Schwabe CEE power distributor M6 60561 400 V 63 A

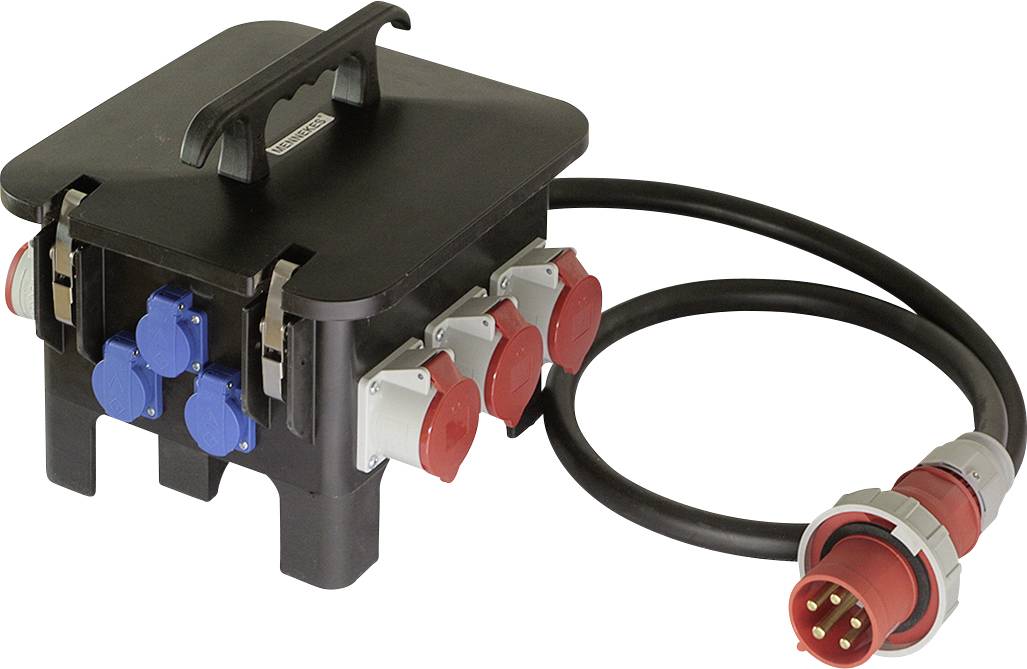

A black electrical distribution box with three blue and three red sockets, connected by a thick, black cable.

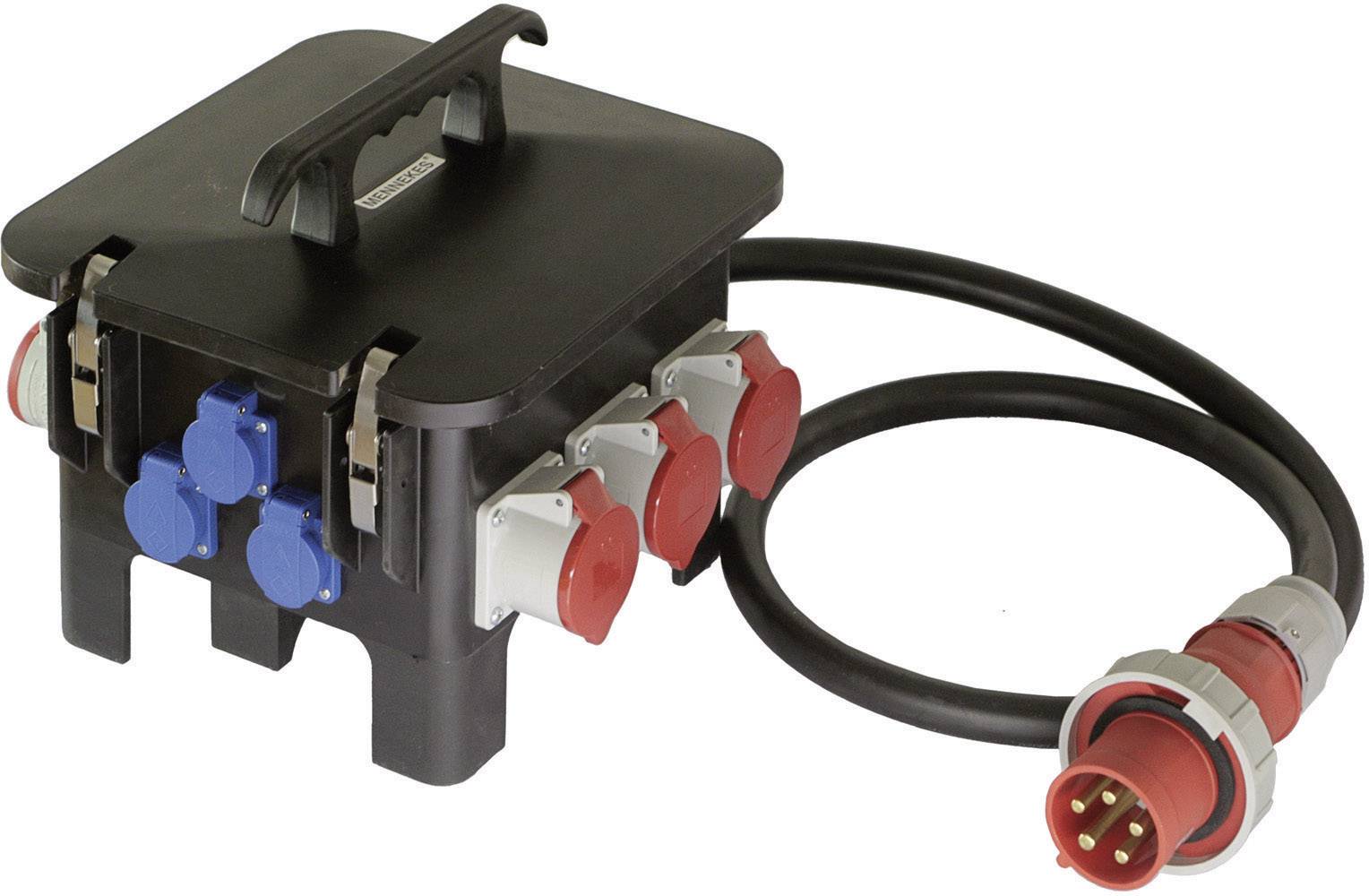

A black distribution box with several red and blue sockets and a thick cable with a red plug lies beside it.

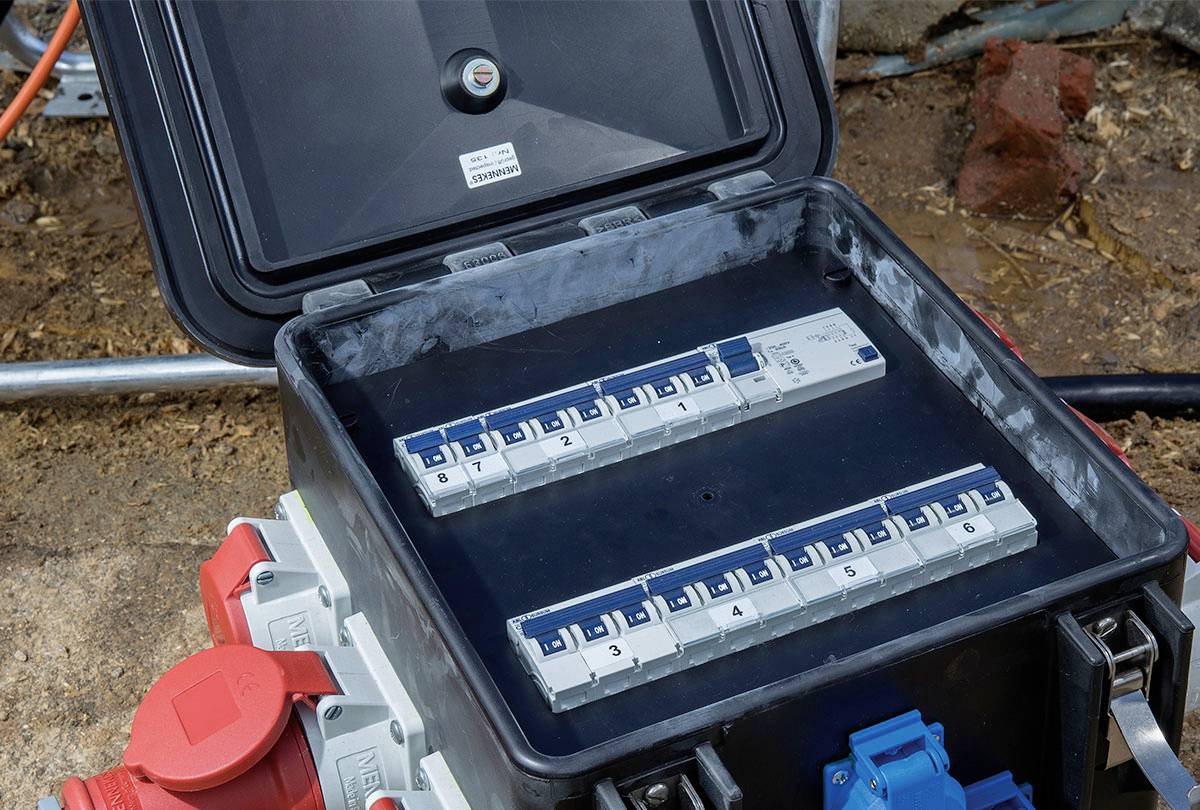

An open electrical consumer unit with several blue circuit breakers that are numbered. Three red and one blue socket positioned to the side.

1/3

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 987.39 / piece)

€ 987.39

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

Technical specifications

Product type: CEE power distributor

No. of CEE connectors: 6

Type A: CEE plug (5-pin, 63 A)

Type B: CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector

No. of PG sockets: 3

Inputs: CEE plug, 63 A, 5-pin

Outputs: 3 CEE-socket 16A, 5-pin, 3 CEE-socket 32A, 5-pin, 3 outlets 16 A (230 V)

Nominal input voltage: 400 V

Nominal output voltage: 400 V

Nominal input current: 63 A

: IP44

Cable length: 2.00 m

Cable standard: H07RN-F 5G 16 mm²

Protection: 1 FI-circuit breaker 63 A (30 mA); 3 LS-SWITCH C 32 A 3-pin, 2 LS-SWITCH C 16 A 1-pole; 3 LS-SWITCH C 16 A 3-pin

Standards: Tested according to DIN VDE 0620-1, IEC 60309, EN 60439-4, DIN VDE 0282-4

Factory colour: Black

Weight: 17.5 kg

Dim: (L x W x H) 47 x 47 x 36 cm

Length: 47 cm

Width: 47 cm

Height: 36 cm

Type: M6 - 400V/63A/5-pin/43 kW - Outputs: 9

Inputs (CEE power distributor): CEE plug (5-pin, 63 A)

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector

Content: 1 pc(s)

Number of pins: 5

: Black

: 400

: 340 mm

: 400 mm

: 2 m

: Plastic

: Nickel-plated

: CuZn

: IP44

: FALSE

Documents & Downloads

Datasheet

Datasheet 551715 AS Schwabe CEE power distributor M6 60561 400 V 63 A

User & Safety Instructions

User & Safety Instructions 551715 AS Schwabe CEE power distributor M6 60561 400 V 63 A

Conformity certificate

Conformity certificate 551715 AS Schwabe CEE power distributor M6 60561 400 V 63 A

Description

The power distributor is stackable and thus save space to store. Closed housing base with 77 mm ground clearance to prevent water from entering. Housing cover with stainless steel quick releases. Contact-safe - even with open lid - in accordance with BGV A2. Additional security thanks to the screw or padlock. Problem-free changing of the mounting sockets.

This text is machine translated.
