Image similar

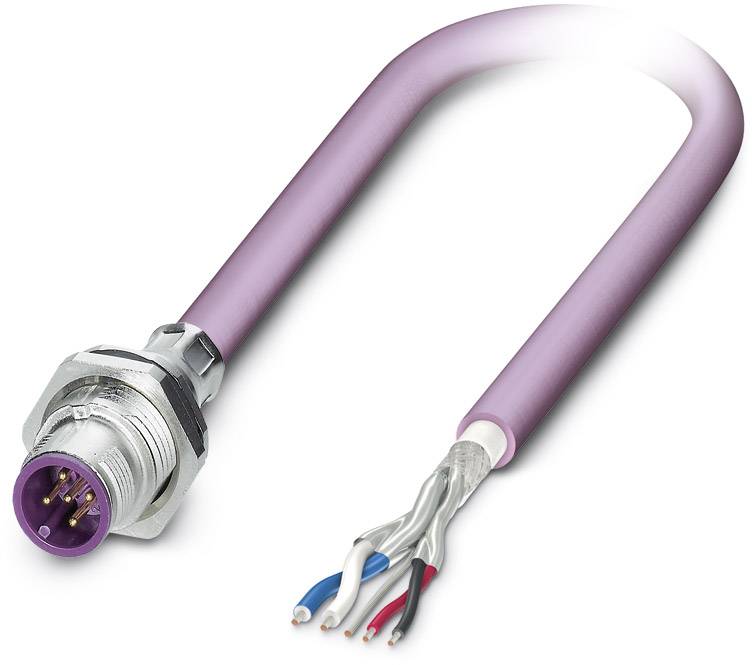

Bus system flush-type plug SACCBP-MS-5CON-PG9/2,0-920SCO 1437588 Phoenix Contact
Product type
Sensor/actuator built-in connector
Connector type
Plug, mount
Connector standard
Bus connector
Connection side A
Cable, open end
Connection side B
M12 plug, built-in
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 57.99 / piece)
€ 57.99
incl. VAT
Only 7 Piece(s) available
Technical specifications
- Type
SACCBP-MS-5CON-PG9/2,0-920SCO
- Product type
Sensor/actuator built-in connector
- Connector type
Plug, mount
- Connector standard
Bus connector
- Connection side A
Cable, open end
- Connection side B
M12 plug, built-in
- No. of pins
5
- Cable length
2.00 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Outside Ø
1.95 mm
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
Open end cable
- Thread type connection side
M12
- Coding
A
IP67
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Manufacturer part #
1437588
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 588937 Bus system flush-type plug SACCBP-MS-5CON-PG9/2,0-920SCO 1437588 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 588937 Bus system flush-type plug SACCBP-MS-5CON-PG9/2,0-920SCO 1437588 Phoenix Contact
Description
Bus system flush-type connector, DeviceNet/CANopen, 5-pos., M12, shielded, A-coded, SPEEDCON, rear/screw mounting with Pg9 thread, with 2.0 m bus cable, 2 x 0.2 mm², 2 x 0.32 mm²
Hints
Special order, no right of withdrawal.
