Name: Busch-Jaeger 2CKA001582A0334 1 pc(s)
Brand: Busch-Jaeger
SKU: 3544925

Highlights & Details

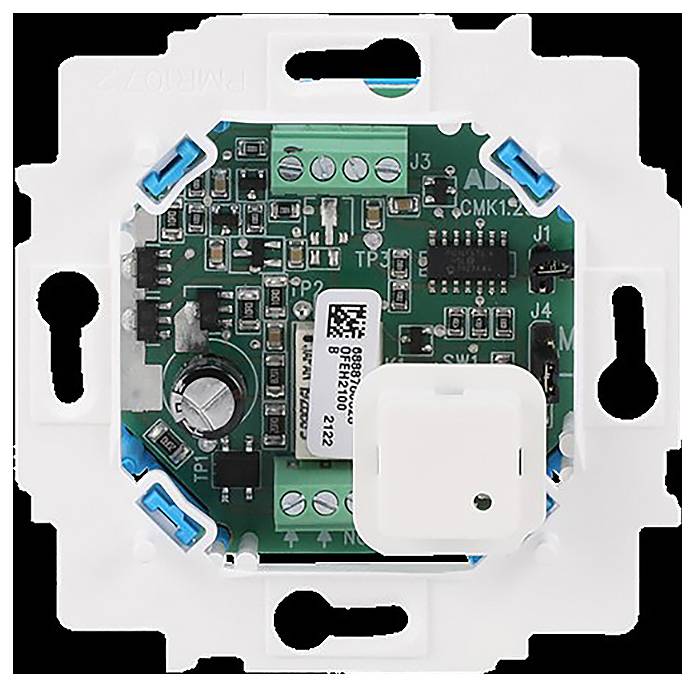

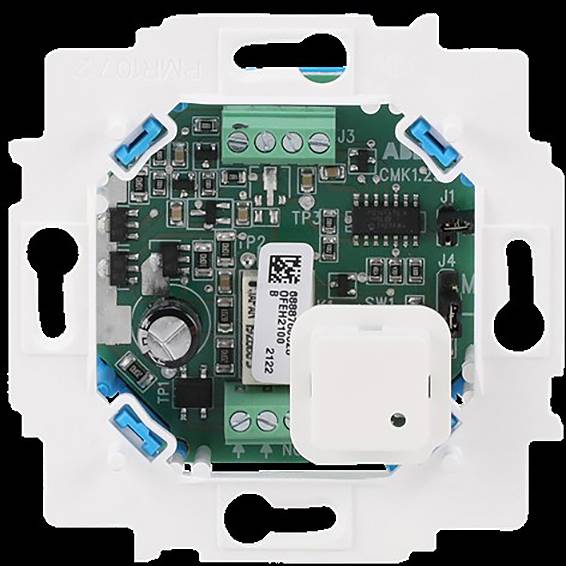

Busch-Jaeger humidity alarm insert with switch-off button 1531 U

Busch & Jaeger Switch Product Range

Technical specifications

Design: Other
Protection class (IP) IP20
Voltage type AC/DC
Nominal voltage AC 15 V
Nominal voltage DC 15 V
Device width 71 mm
Device height 71 mm
Device depth 38 mm

Type: Busch-Jaeger humidity alarm insert with switch-off button 1531 U

Product type: Switch product range

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3544925 Busch-Jaeger 2CKA001582A0334 1 pc(s)

Description

For monitoring kitchen and basement areas for unwanted water dips. For controlling electrical conductive liquids. The sensor is recorded via the separately available sensor band 1538/02. Optical alarm alert by flashing switch-off button. Additional optical or acoustic display possible through Busch warning sensor insert 1563 U-12 or through signal transmitter insert 1561 U. Reset mode (can be selected immediately/only after the moisture has been eliminated) via the internal jumper. No spread. Screw fixing via keyholes.
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, karat®, Busch-dynasty®
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure
Product line: Busch-Infoline®

This text is machine translated.
