Name: Busch-Jaeger 2CKA002011A3819 1 pc(s)
Brand: Busch-Jaeger
SKU: 3544415

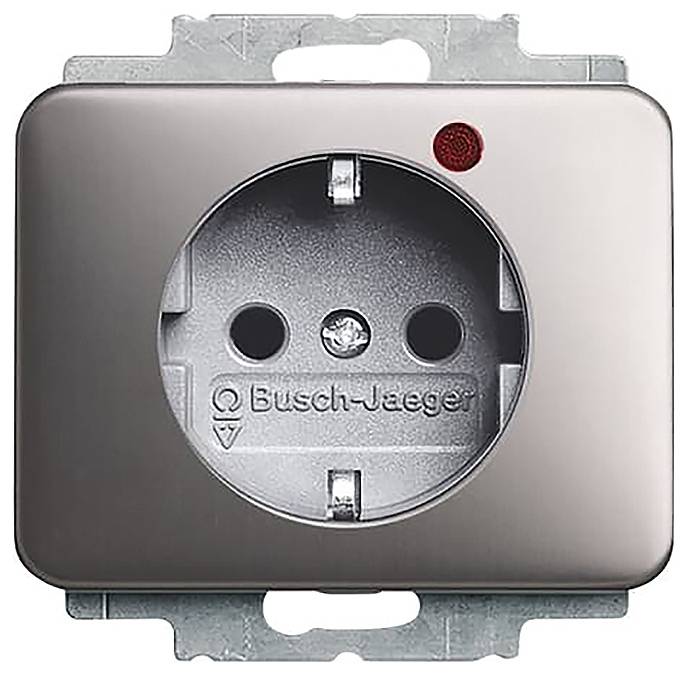

Electrical outlet with two round sockets. A red indicator light is at the top right. Branding reads 'Busch-Jaeger.'

A close-up image of a Busch-Jaeger electrical wall socket with a metallic finish, showcasing a round plug opening and a small red indicator light.

1/2

Image similar

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Busch-Jaeger socket insert pla surge protection 2310 EUGL/VA-20-11

Busch & Jaeger Switch Product Range

Technical specifications

Design: Socket CEE 7/3 (type F)
Mounting type: Flush-mounted
Material: Plastic
Colour: Platinum
Surface protection: Anodised/anodized
Impact strength: IK03
Transparent: No.
Design of surface: Matt
Number of phases: 1
Nominal voltage: 250 V
Nominal current: 16 A
Type of connection: Screw terminal
With hinged cover: No.
Halogen-free: Yes
With signal lamp: Yes
Imprint/marking: Without
Min Depth of the device socket 31 mm
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Material quality: Thermoplastic
Mounting type: Claw / screw attachment
Antibacterial treatment: No.
Suitable for protection class (IP): IP20
Number of units: 1
Text field/label area: No.
With orientation light: No.
Device width 71 mm
Device height 71 mm
Device depth 45 mm
Insulated installation: Yes
Lockable: No.
Earthed: Earth clips
Number of active contacts (round): 2
With increased protection against accidental contact: No.
Metallic color: No.
Ejection mechanism: No.
With function light: No.
Voltage surge protection: Yes
Fault current protection: No.
With micro-fuse: No.
Special power supply: Without special power supply
With loop-through function: Yes
With On / Off switch: No.
Turned central insert: No.
For ""difficult conditions""" (according to VDE): No.

Type: Busch-Jaeger socket insert pla surge protection 2310 EUGL/VA-20-11

Product type: Recessed sockets

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3544415 Busch-Jaeger 2CKA002011A3819 1 pc(s)

Description

2-pin (2 P + E) With integrated and external signal contact. ISN = 5 kA Device protection for technically sensitive devices such as computers, entertainment electronics and building technology. Reduces effective voltage surges between sub-distribution and protective contact® socket inserts. Surge arrester test category: Classification of type 2 terminals according to VDE 0620-1 approved as connection terminals.
Design line: Alpha
Design line variant: Alpha nea®, Alpha exclusive®

This text is machine translated.
