1/2
Image similar
Busch-Jaeger 2CKA006200A0293 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

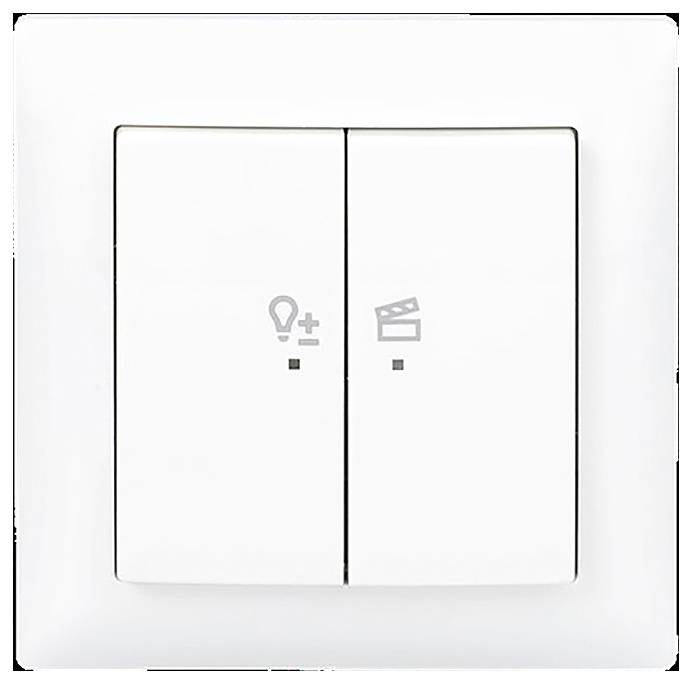

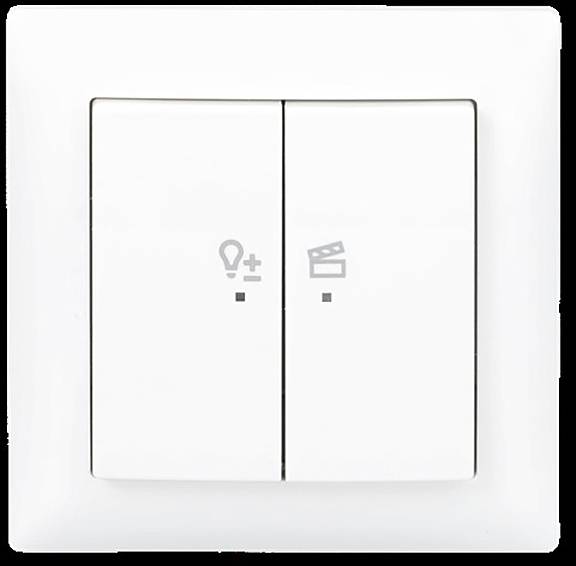

Busch-Jaeger LED dimmer Flex set, WL 62851 UJ-914-WL
- Busch & Jaeger Switch Product Range
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Surface protection: Untreated
- Impact strength: IK00
- Transparent: No.
- Design of surface: Matt
- Nominal voltage: 230 V
- Type of connection: Screw terminal
- Halogen-free: Yes
- Frequency: 50 Hz
- Max. Switching capacity LED 240 W
- Min Depth of the device socket 25 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Dimming of phase section: Yes
- Dimming of leading edge: Yes
- Material quality: Thermoplastic
- Mounting type: Claw / screw attachment
- RAL number (similar): 9010
- Suitable for protection class (IP): IP20
- Extension input: Yes
- Assembly: Base element with complete casing
- Device width 80 mm
- Device height 80 mm
- Device depth 45 mm
- Lastart: Universal and LED retrofit
- Operating mode: Push button
- Wire cross-section: 0.5..2.5 mm²
- Can be used with button: Yes
- Suitable for use with motion detectors: Yes
- Can be used with presence detectors: Yes
- Can be used with timer/timer: Yes
- Can be used with IR key: No.
- Light value storage: Yes
- Can be used with radio button: Yes
- APP control via Bluetooth: Yes
- Series dimmer: No.
- Control voltage 230 V
- Nominal power resistive load 10..240 W
- Nominal power inductive load 20..240 VA
- Nominal power capacity load 10..240 VA
- Type
Busch-Jaeger LED dimmer Flex set, WL 62851 UJ-914-WL
- Product type
Switch product range
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544856 Busch-Jaeger 2CKA006200A0293 1 pc(s)
Description
Busch-balance® SI LED push dimmer insert with touch control, 2-way, wireless.
For manual and automatic switching and dimming of light bulbs.
For saving and calling scenes and groups using the right rocker.
Remote control via Bluetooth via Smartphone/tablet APP.
Optimised for dimming retrofit LED lights (Ledi).
Consisting of Flex-LED button-dimmer-insert, 64851 U.
Consists of control element Flex, 2-way, wireless, 62721-WL.
Consists of rocker, 2-fold left with symbol >dimmer< 6234-21-914.
Consists of rocker, 2-fold right with symbol >Scene< 6233-22-914.
Consists of Busch-balance® SI cover frame, 1-fold 1721-914.
Only mount in conjunction with standard UP equipment boxes to DIN 49073 Part 1.
Design line: Busch-balance® SI
Product line: Busch-Flextronics® Wireless, Busch-free@home® Wireless, Busch-free@home®
This text is machine translated.
For manual and automatic switching and dimming of light bulbs.
For saving and calling scenes and groups using the right rocker.
Remote control via Bluetooth via Smartphone/tablet APP.
Optimised for dimming retrofit LED lights (Ledi).
Consisting of Flex-LED button-dimmer-insert, 64851 U.
Consists of control element Flex, 2-way, wireless, 62721-WL.
Consists of rocker, 2-fold left with symbol >dimmer< 6234-21-914.
Consists of rocker, 2-fold right with symbol >Scene< 6233-22-914.
Consists of Busch-balance® SI cover frame, 1-fold 1721-914.
Only mount in conjunction with standard UP equipment boxes to DIN 49073 Part 1.
Design line: Busch-balance® SI
Product line: Busch-Flextronics® Wireless, Busch-free@home® Wireless, Busch-free@home®
This text is machine translated.
