Busch-Jaeger Black 2CKA001710A2546 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

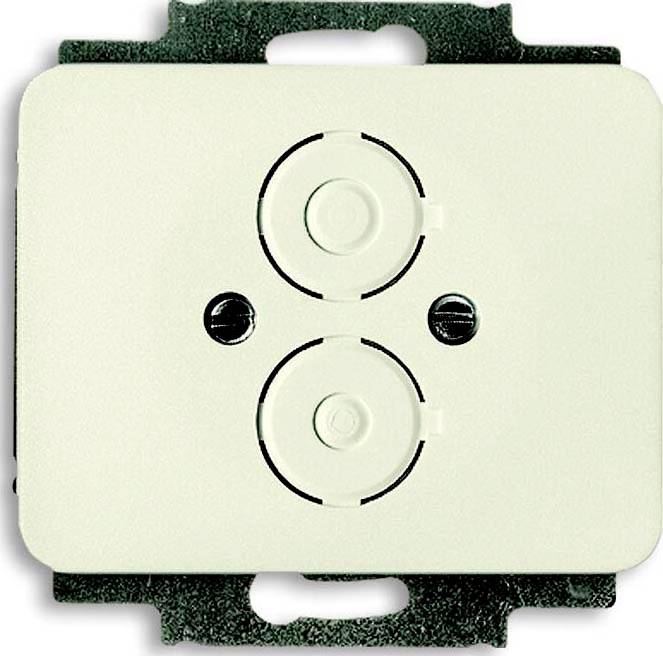

Central panel ELF/W for small sockets 1748-22G
- Busch & Jaeger Switch Product Range
Technical specifications
- Design: Protection contact CEE 7/3 (type F)
- Imprint/marking: Without
- Mounting method: Fixing with screw
- Material quality: Thermoplastic
- Halogen-free: No.
- Surface protection: Painted
- Design of surface: Matt
- Antibacterial treatment: No.
- Mounting type: Flush-mounted
- Min Depth of the device socket 32 mm
- Device width 110 mm
- Device height 85 mm
- Device depth 40.3 mm
- With orientation light: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With hinged cover: No.
- Nominal voltage: 250 V
- Frequency: 50 Hz
- Number of active contacts (round): 2
- With signal lamp: No.
- Number of sockets: 2
- Mains sockets with phase separation: No.
- With increased protection against accidental contact: No.
- Text field/label area: No.
- Metallic color: No.
- Lockable: No.
- Ejection mechanism: No.
- With function light: No.
- With micro-fuse: No.
- With loop-through function: No.
- With On / Off switch: No.
- Turned central insert: No.
- Earthed: Earth clips
- Special power supply: Without
- Type
Central panel ELF/W for small sockets 1748-22G
- Product type
Main panel
- Factory colour
Black
- Nominal voltage
250 V
- Nominal current
16 A
IK03
- Content
1 pc(s)
- Similar RAL
9004
- Material
Plastic
- Mounting type
Flush mount
- Phases
1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3834206 Busch-Jaeger Black 2CKA001710A2546 1 pc(s)
Description

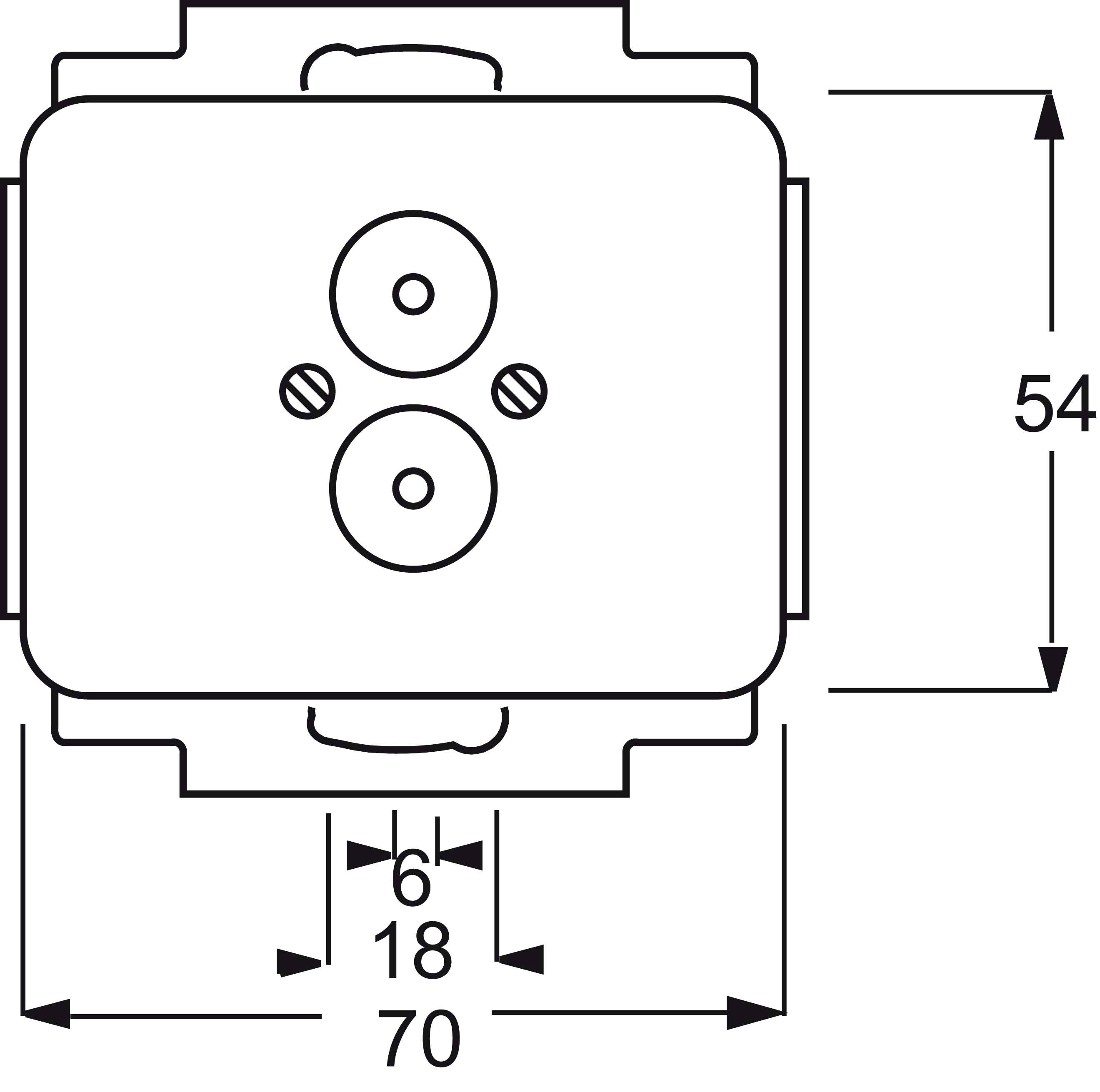

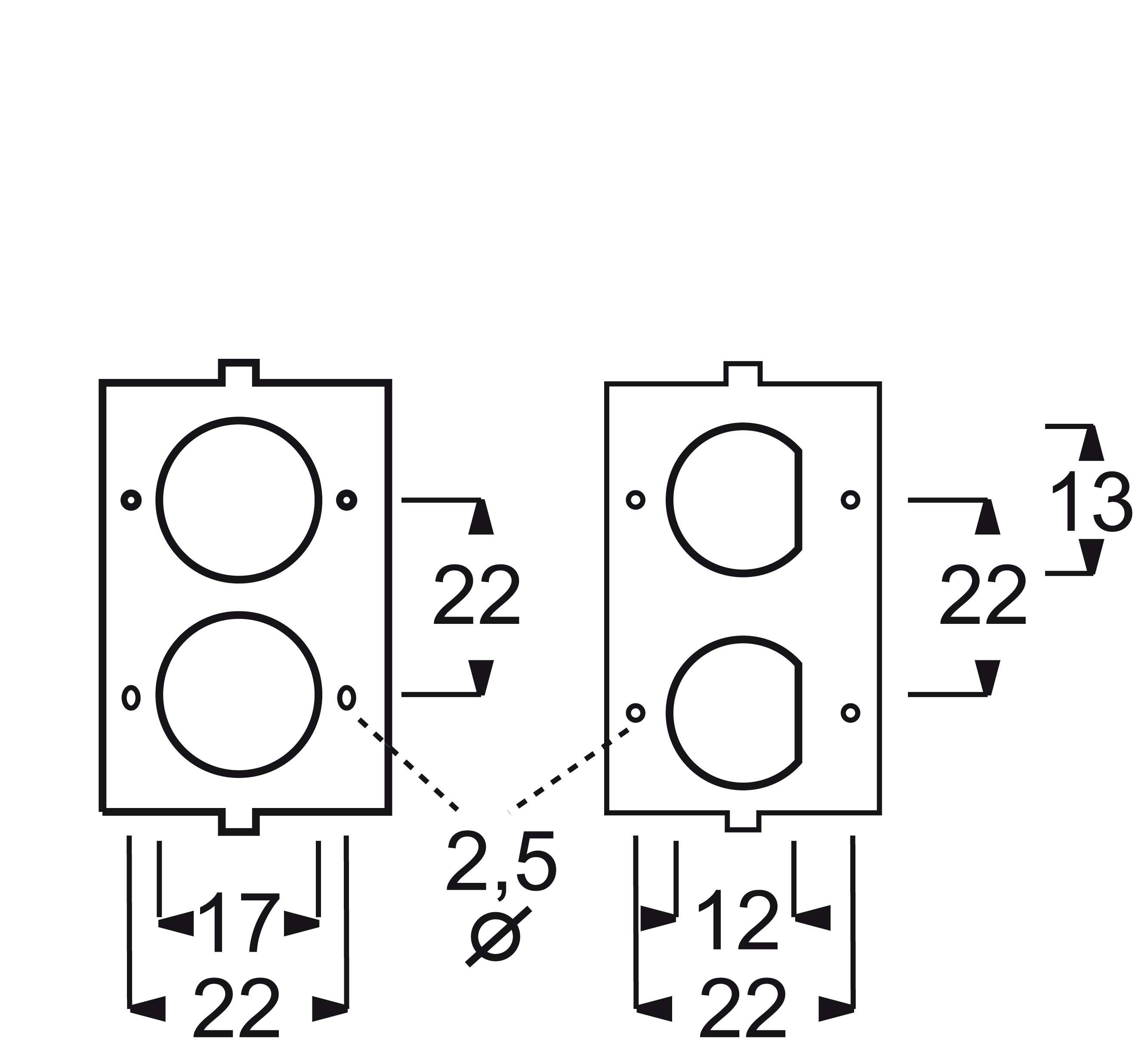

To cover DIN 41524, 41529, 45322, 45327, 45328 and 45329 of small sockets and round connectors with screw cap M 16x0.75 (installable in base insert). Cut-out openings 6, 8, 18 mm.
This text is machine translated.
This text is machine translated.
