Name: Busch-Jaeger Black 2CKA001753A1761 1 pc(s)
Brand: Busch-Jaeger
SKU: 3834203

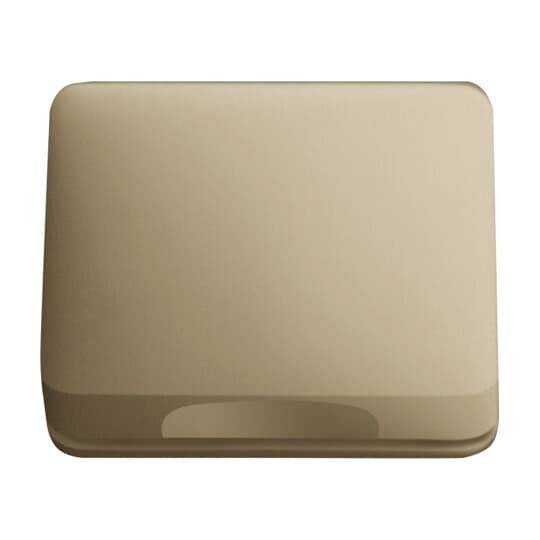

Beige square electronic device or scale with rounded corners on a white background.

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Central panel BRZ TAE/UAE/LS,folding. 1746-21 FN

Busch & Jaeger Switch Product Range

Technical specifications

Design: Protection contact CEE 7/3 (type F)
Imprint/marking: Without
Mounting type: Claw / screw attachment
Material quality: Thermoplastic
Halogen-free: No.
Surface protection: Painted
Design of surface: Matt
Antibacterial treatment: No.
Mounting type: Flush-mounted
Device width 71 mm
Device height 71 mm
Device depth 45 mm
With orientation light: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
With hinged cover: No.
Nominal voltage: 250 V
Frequency: 50 Hz
Number of active contacts (round): 2
With signal lamp: No.
Number of sockets: 1
Mains sockets with phase separation: No.
With increased protection against accidental contact: No.
Text field/label area: No.
Metallic color: No.
Lockable: No.
Ejection mechanism: No.
With function light: No.
With micro-fuse: No.
With loop-through function: No.
With On / Off switch: No.
Turned central insert: No.
Earthed: Earth clips
Special power supply: Without

Type: Central panel BRZ TAE/UAE/LS,folding. 1746-21 FN

Product type: Main panel

Factory colour: Black

Nominal voltage: 250 V

Nominal current: 16 A

: IK03

Content: 1 pc(s)

Similar RAL: 9004

Material: Plastic

Mounting type: Flush mount

Phases: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3834203 Busch-Jaeger Black 2CKA001753A1761 1 pc(s)

Description

For TAE inserts. For UAE / TAE inserts. For loudspeaker connection sockets. Suitable for art. no. 0248/0x-101 For data modules. Suitable for art. no. 0219/12 and 0219/13. For modular junction boxes with 90° RJ45 outlet of the company Telegärtner (MJ und WE series). See inserts TAE. Design line: Alpha design line Variant: Alpha nea®, Alpha exclusive®
