Name: Busch-Jaeger Blue 2CKA006599A2918 1 pc(s)
Brand: Busch-Jaeger
SKU: 3834408

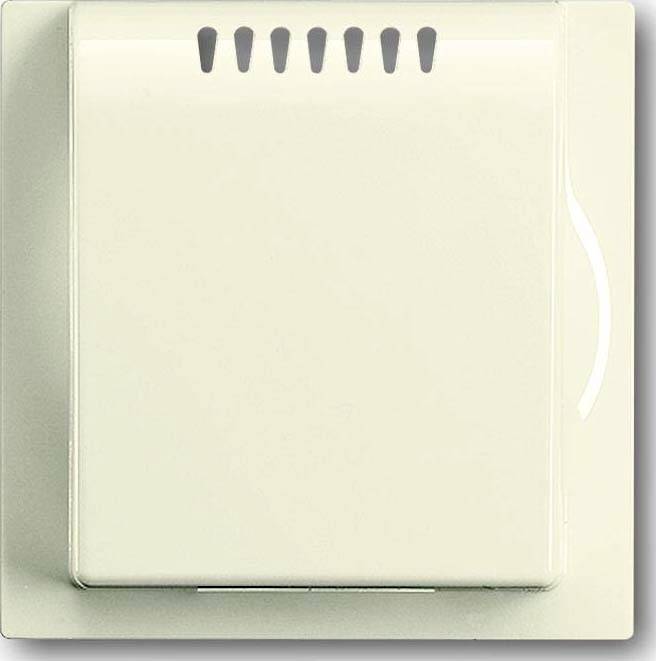

White wall switch cover plate with six small dark indicator slots along the top<br>

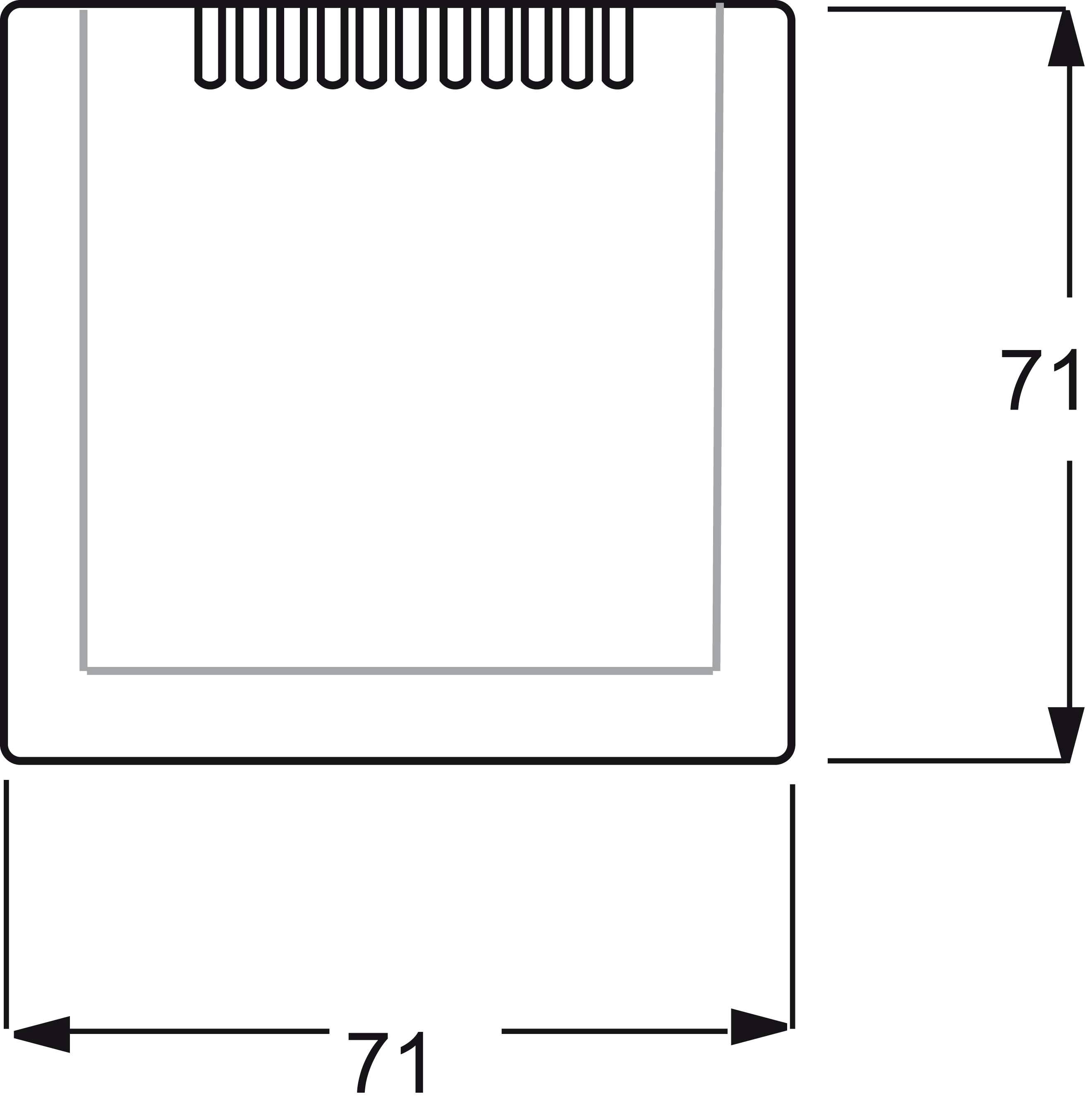

Technical drawing of a square card or device, 71 by 71 units, with a top notch and centered inner outline indicating dimensions.<br>

1/2

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Central disc ELF/Ws cooling part, UP-rotary dimmer. 6541-72

Busch & Jaeger Switch Product Range

Technical specifications

Mounting method: Clamp mounting
Halogen-free: No.
Surface protection: Untreated
Design of surface: Matt
Antibacterial treatment: No.
Transparent: No.
Mounting direction: Horizontal and vertical
With hinged cover: No.
Mounting width 70 mm
Text field/label area: No.
Number of units: 5
Flush mounting: Yes
Mounting height 70 mm
Number of units horizontal: 5
Number of units vertical: 5
Number of modules horizontal (for modular design): 5
Number of vertical modules (for modular design): 5
With mounting frame: No.
Suitable for underground passage box: No.
Suitable for device installation channel: Yes
Suitable for panel mounting: No.
Diameter boring (opening): 71 mm

Type: Central disc ELF/Ws cooling part, UP-rotary dimmer. 6541-72

Product type: Main panel

Factory colour: Blue

: IP20
IK03

Dim: (W x H x D) 85 x 369.4 x 8.6 mm

Content: 1 pc(s)

Similar RAL: 5026

Depth: 8.6 mm

Height: 369.4 mm

Width: 85 mm

Material: Glass

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3834408 Busch-Jaeger Blue 2CKA006599A2918 1 pc(s)

Description

For Busch-Universal-Central dimmer® Power component 6594 U. For room temperature controller Object range 6108/0x and Socket for blind cover 6930/01.

This text is machine translated.

Description

For Busch-Universal-Central dimmer® Power component 6594 U. For room temperature controller Object range 6108/0x and Socket for blind cover 6930/01.
