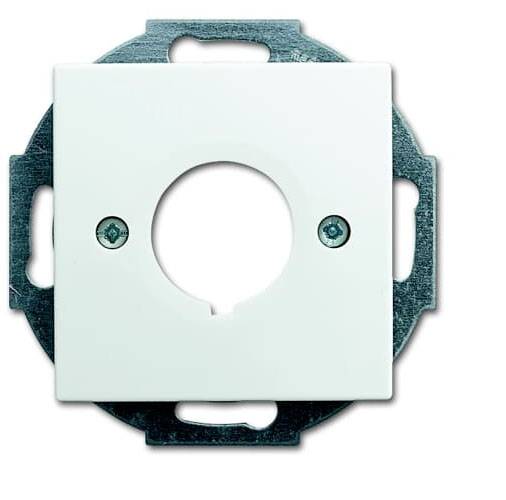

Busch-Jaeger Cover Cover White, Pure white (RAL 9010) 2CKA001724A4344 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Central panel
- Busch & Jaeger Switch Product Range
Technical specifications
- Outlet direction: Straight
- Labeling field: Without labeling field
- Shielded sockets: No.
- Suitable for number of sockets/couplings: 1
- Casing shielded: No.
- Connector strip: No.
- Printed: No.
- With sockets/couplings: No.
- With dust protection: No.
- Bearing ring: Yes
- With strain relief: No.
- Assembly: Basic element with central cover plate
- With hinged lid: No.
- Fastening method: Fixing with screw
- Halogen-free: Yes
- Transparent: No.
- Material quality: Thermoplastic
- RAL number (similar): 9010
- Surface type: Glossy
- Surface: Untreated
- Colour: white
- Material: Plastic
- Min Depth of the appliance socket: 40
- Suitable for protection class (IP): IP20
- Mounting type: Flush-mounted
- Use: Bore
- Number of modules (for modular design): 1
- Device width 71
- Device height: 71
- Device depth: 32
- Type
Central panel
- Switch type function
Cover
- Product type
Switch product range
- Switch type component
Cover
- Factory colour
White
Pure white (RAL 9010)
IP20
- Content
1 pc(s)
- Similar RAL
9010
- Material
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2334497 Busch-Jaeger Cover Cover White, Pure white (RAL 9010) 2CKA001724A4344 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2334497 Busch-Jaeger Cover Cover White, Pure white (RAL 9010) 2CKA001724A4344 1 pc(s)
Description
With screw fixing.Attachment with central locking nut.As cover for control devices with 22.5 mm diameter.without spread.
This text is machine translated.
This text is machine translated.
