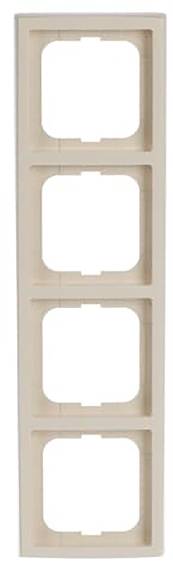

Busch-Jaeger Frame Future Linear 2CKA001754A4171 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Busch-Jaeger frame 4-fold elf/ws, fut.linear 1724-182
- Busch & Jaeger Switch Product Range
Technical specifications
- Height: 293 mm
- Width 80 mm
- Depth: 11 mm
- Material: Plastic
- Colour: Savannah/ivory white
- Protection class (IP) IP20
- Mounting width 63 mm
- Mounting height 63 mm
- Surface protection: Untreated
- Impact strength: IK03
- Transparent: No.
- Surface design: Glossy
- With hinged cover: No.
- Halogen-free: Yes
- Flush mounting: Yes
- Material quality: Thermoplastic
- Mounting method: Clamp mounting
- Antibacterial treatment: No.
- RAL number (similar): 1013
- Number of units: 4
- Mounting direction: Horizontal and vertical
- Number of units horizontal: 4
- Number of units vertical: 4
- With mounting frame: No.
- Suitable for underground passage box: No.
- Suitable for device installation channel: Yes
- Suitable for panel mounting: No.
- Text field/label area: No.
- Diameter boring (opening): 71 mm
- Type
Busch-Jaeger frame 4-fold elf/ws, fut.linear 1724-182
- Product type
Faceplate
- Switch type component
Frame
- Type series
Future Linear
- Content
1 pc(s)
- Similar RAL
1013
- Material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545973 Busch-Jaeger Frame Future Linear 2CKA001754A4171 1 pc(s)
Description
To cover switches, buttons and sockets.
With rounded edges and corners.
Design line: Future® linear, platform 63
Design line variant: Future®
This text is machine translated.
With rounded edges and corners.
Design line: Future® linear, platform 63
Design line variant: Future®
This text is machine translated.
