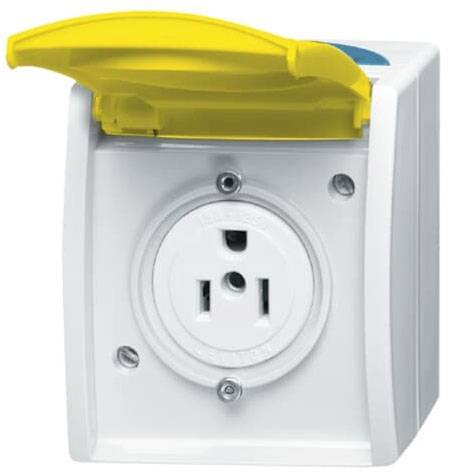

Busch-Jaeger Insert Nema socket Zinc yellow, Yellow 2CKA002124A0023 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Busch-NEMA socket
- Busch & Jaeger Switch Product Range
Technical specifications
- Number of units: 1
- Text field/label area: Yes
- Impact strength: IK04
- With hinged lid: Yes
- Fastening method: Fixing with screw
- Halogen-free: Yes
- Transparent: No.
- Material quality: Thermoplastic
- RAL number (similar): 1018
- Surface type: Matt
- Surface: Untreated
- Color: Yellow
- Material: Plastic
- Min Depth of socket: 0
- Suitable for protection class (IP): IP44
- Mounting type: Surface-mounted
- Design: NEMA
- Nominal voltage 110
- Nominal current 15
- Antibacterial treatment: No.
- Ejection mechanism: No.
- Rated fault current: 0
- Number of sockets switchable: 0
- With function lighting: No.
- With orientation lighting: No.
- With built-in USB power supply: No.
- Protective conductor contact round: No.
- For "difficult conditions" (according to VDE): No.
- Insulated mounting: Yes
- With loop-through function: Yes
- With increased touch protection: No.
- Earthing contact: Yes
- Special power supply: Without special power supply
- Twisted central insert: No.
- With on/off switch: No.
- Number of active contacts (round): 0
- Number of active contacts (flat): 2
- Fault current protection: No.
- With micro fuse: No.
- Surge protection: No.
- Frequency 60;;60
- Connection type: Screw terminal
- With signal lamp: No.
- Number of phases: 1
- Lockable: No.
- Printed/labeled: Without printed text
- Number of modules (for modular design): 1
- Device width 74
- Device height 83
- Device depth: 55
- Type
Busch-NEMA socket
- Switch type function
Nema socket
- Product type
Switch product range
- Switch type component
Insert
- Factory colour
Zinc yellow
Yellow
- Nominal voltage
110 V
IP44
- Content
1 pc(s)
- Motif
without pressing
- Material
Thermoplastic
- Weight
0.15
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2335176 Busch-Jaeger Insert Nema socket Zinc yellow, Yellow 2CKA002124A0023 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2335176 Busch-Jaeger Insert Nema socket Zinc yellow, Yellow 2CKA002124A0023 1 pc(s)
Description
With screw connection.2 P + E, with yellow hinged lid (RAL 1018).with labeling field.Labeling field 57.8 x 9.8 mm
