Name: Busch-Jaeger Metal 2CKA006400A0398 1 pc(s)
Brand: Busch-Jaeger
SKU: 3544356

Highlights & Details

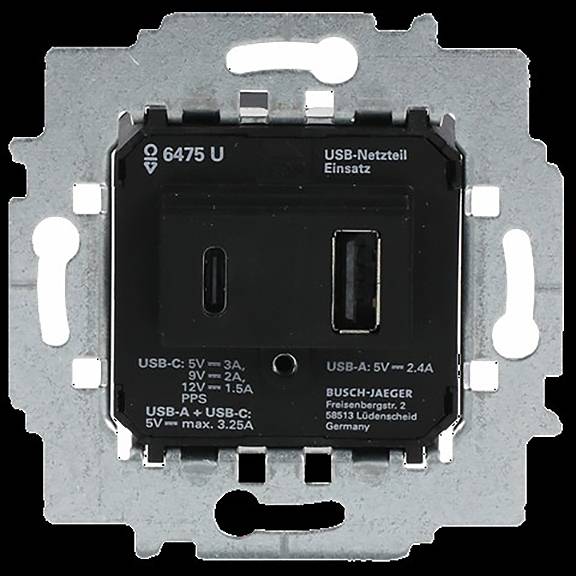

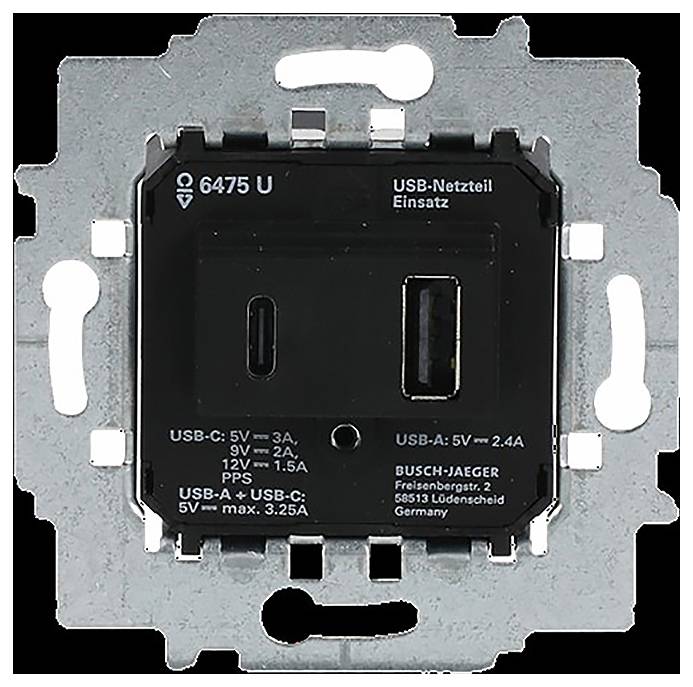

Busch-Jaeger power supply insert USB A+C 6475 U

Busch & Jaeger Switch Product Range

Technical specifications

Mounting type: Other
Colour: Anthracite
Connection type: Other
Mains frequency: 50/60 Hz.
Min Depth of the device socket 32 mm
Antibacterial treatment: No.
Suitable for protection class (IP): IP20
Device width 71 mm
Device height 71 mm
Device depth 42.5 mm
Number of USB A ports: 1
Number of USB-C ports: 1

Type: Busch-Jaeger power supply insert USB A+C 6475 U

Product type: Switch product range

Factory colour: Metal

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3544356 Busch-Jaeger Metal 2CKA006400A0398 1 pc(s)

Description

For charging and supplying mobile devices via USB-cable.
With USB type A and USB type C socket.
Simultaneous charging of 2 devices is possible.
Only USB-A socket occupied: Nominal power: 12 W.
Nominal current: 2400 mA
Only USB-C socket used: Nominal power: 18 W.
Nominal current 3000 mA added.
Supports automatic negotiation of the optimum charging parameters for the shortest charging time.
Support of the charging protocols at the USB-A connection: Apple MFI with 2.4 A and BC 1.2 with 1.5 A.
Support for additional quick charge protocols: USB-PD and Quickcharge 3.0 & 4.0.
With electronic short-circuit protection.
With electronic overload protection
No spread.
Screw fixing via keyholes.
No data transmission possible.
Matching central panel: 1766-xxx and 2539-xxx
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®, Alpha, Impulse
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure, Alpha nea®, Alpha exclusive®
