Name: Busch-Jaeger Metal 2CKA006800A3041 1 pc(s)
Brand: Busch-Jaeger
SKU: 3545900

Highlights & Details

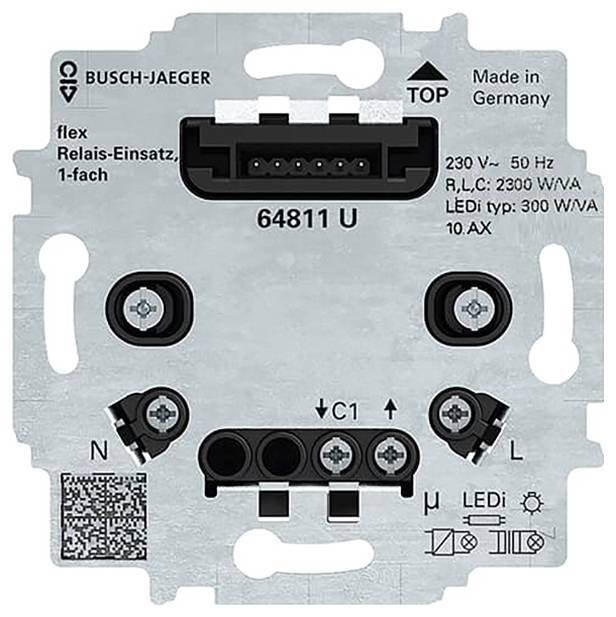

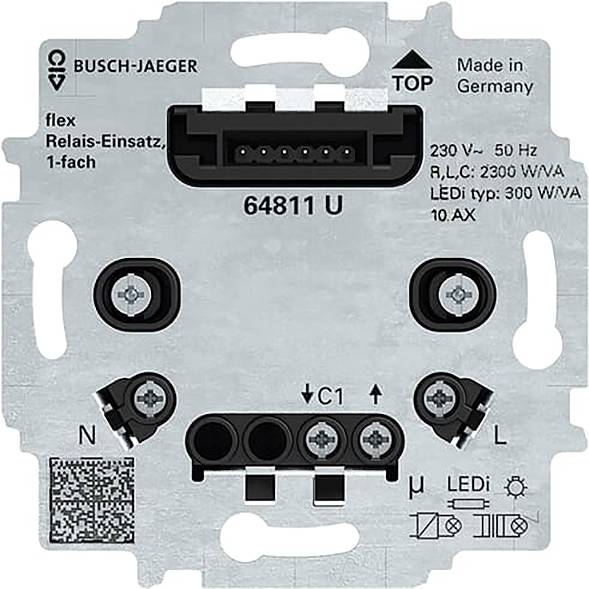

Busch-Jaeger relay insert Flex 64811 U

Busch & Jaeger Switch Product Range

Technical specifications

Rated current 10 A
Type: Relays
Mounting type: Flush-mounted
Material: Plastic
Colour, black
Surface protection: Galvanised
Transparent: Yes
Surface design: Glossy
Nominal voltage: 230 V
Frequency: 50 Hz
Power loss: 0.3 W
Number of channels: 1
Min Depth of the device socket 25 mm
Compatible with Apple home kit: Yes
Compatible with Google Assistant: Yes
Compatible with Amazon Alexa: Yes
IFTTT support available: Yes
Material quality: Other
Mounting type: Claw / screw attachment
RAL number (similar): 9005
Extension input: Yes
Assembly: Base element
Switching power 0..2300 W
Load start: Other
Can be used with button: Yes
Suitable for use with motion detectors: Yes
Can be used with presence detectors: Yes
Can be used with timer/timer: Yes
Can be used with the IR button: Yes
Light value storage: Yes
Can be used with radio button: Yes
Breaking capacity 0..2300 W

Type: Busch-Jaeger relay insert Flex 64811 U

Product type: Switch product range

Factory colour: Metal

Dim: (W x H x D) 50 x 100 x 150 mm

Content: 1 pc(s)

Depth: 150 mm

Height: 100 mm

Width: 50 mm

Mounting type: Flush mount

Weight: 1220 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3545900 Busch-Jaeger Metal 2CKA006800A3041 1 pc(s)

Description

3-conductor connection technology (neutral conductor required).
For switching lighting systems.
Operation in toggle switching via button extension is possible.
Operation also possible via conventional buttons (2020 US, 2021/6 UK).
Without control element.
For control element Flex, 1-way, 64711 and wireless, 62711-WL.
For control element Flex, 2-way, 64721 and wireless, 62721-WL.
For control element Busch-Trevion® keypad KK/U4.xx.11.
For Busch Comfort Switch® Flex control element 64765-... .
For Busch-Wächter® 180 Flex sensors 6476x-... .
For Busch-Wächter® 180 Flex sensors, wireless, 6276x -WL.
For Busch presence detector Flex sensors 6475x-... .
Can be combined with extension insert Flex, 64891 U.
The application can be used via a wireless sensor in Busch-Flextronics® wireless or Busch-free@home® wireless.
Mounting required in UP sockets according to DIN 49073.
Design line: Platform 63, Busch-balance® SI, Reflex SI, Busch-Duro 2000® SI, Busch-art linear®, future® linear, Busch-aXcent®, pure stainless steel, solo®, karat®, Busch-dynasty®, Busch-Trevion®
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure
Product line: Busch-Flextronics®, Busch-Flextronics® Wireless, Busch-free@home® Wireless, Busch-free@home®
