Name: Busch-Jaeger Multicolour 2CKA000230A0471 1 pc(s)
Brand: Busch-Jaeger
SKU: 3544897

Highlights & Details

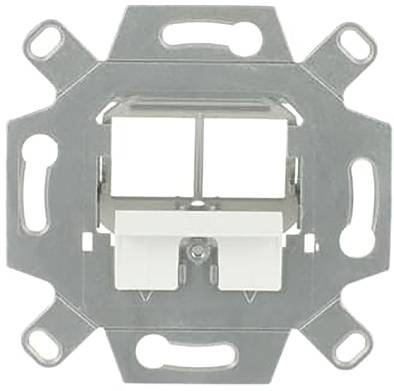

Busch-Jaeger mounting adapter UP for module inserts 0219/14

Busch & Jaeger Switch Product Range

Technical specifications

Mounting type: Flush-mounted
Material: Metal
Colour: Silver.
Surface protection: Sand cast
Design of surface: Matt
With hinged cover: No.
Halogen-free: No.
Min Depth of the device socket 32 mm
Material quality: Other
Mounting method: Fixing with screw
Antibacterial treatment: No.
Usage: Modular jack
Suitable for protection class (IP): IP20
Bearing ring: No.
With dust protection: No.
Outlet direction: Straight
Labelling field: Without labeling field
With imprint: No.
Number of modules (for modular design): 1
With sockets/couplings: No.
Suitable for number of sockets/couplings: 2
With strain relief: No.
Shielded sockets: No.
Shielded housing: No.
Connector strip: No.
With illumination: No.
Device width 70 mm
Device height 70 mm
Device depth 30 mm

Type: Busch-Jaeger mounting adapter UP for module inserts 0219/14

Product type: Switch product range

Factory colour: Multicolour

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3544897 Busch-Jaeger Multicolour 2CKA000230A0471 1 pc(s)

Description

For inclusion of module inserts and breakout cables such as:
- Keystone/Modular Jack: 0229/04, 0229/05, 0229/06
- Whipping: 0229/12, 0229/13, 0229/42, 0229/43
- F-connector: 0229/22, 0229/23
- Jack: 0229/42, 0229/43
- Blind: 0229/02, 0229/03
Matching cover e.g.: 2539-xxx, 1766-xxx.
For recording one or two sockets.
Module recording can be swiveled either to 45° or 90°.
For mounting in cable ducts, flush-mounted device boxes and under floor systems.
Without central panel.
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®, Alpha, Impulse
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure
