Name: Busch-Jaeger Multicolour 2CKA000230A0472 1 pc(s)
Brand: Busch-Jaeger
SKU: 3545411

Highlights & Details

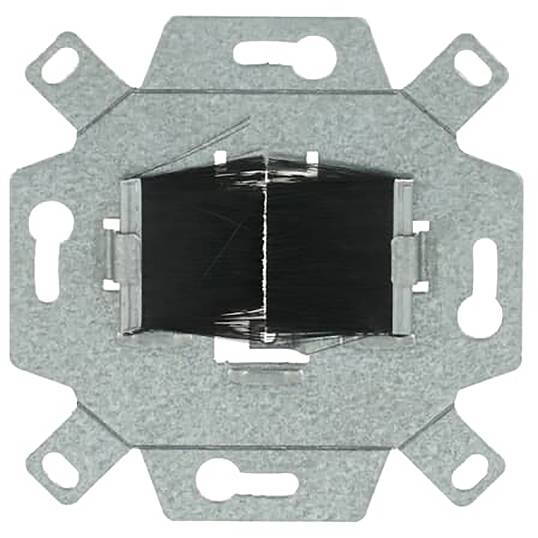

Busch-Jaeger cable bushing UP with brushes 0219/15

Busch & Jaeger Switch Product Range

Technical specifications

Mounting type: Flush-mounted
Material: Metal
Colour: Silver.
With hinged cover: No.
Halogen-free: No.
Min Depth of the device socket 10 mm
Material quality: Other
Mounting method: Fixing with screw
Antibacterial treatment: No.
Usage: Modular jack
Suitable for protection class (IP): IP20
Bearing ring: No.
With dust protection: No.
Outlet direction: Straight
With imprint: No.
Number of modules (for modular design): 1
With sockets/couplings: No.
With strain relief: No.
Shielded sockets: No.
Shielded housing: No.
Connector strip: No.
With illumination: No.
Device width 70 mm
Device height 70 mm
Device depth 17 mm

Type: Busch-Jaeger cable bushing UP with brushes 0219/15

Product type: Switch product range

Factory colour: Multicolour

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3545411 Busch-Jaeger Multicolour 2CKA000230A0472 1 pc(s)

Description

Cable bushing UP with brushes.
For pre-assembled cables out of the wall area and direct insertion into the device.
Matching cover e.g.: 2539-xxx, 1766-xxx.
For mounting in cable ducts, flush-mounted device boxes and under floor systems.
Cut size of cable bushing 32.5 mm x 17.5 mm
Without central panel.
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®, Alpha, Impulse
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure

This text is machine translated.
