Name: Busch-Jaeger Multicolour 2CKA001032A0524 1 pc(s)
Brand: Busch-Jaeger
SKU: 3543275

Highlights & Details

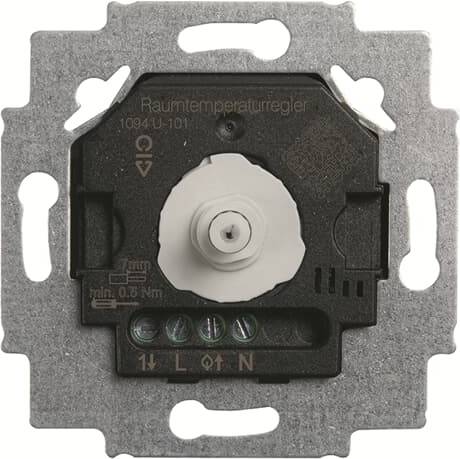

Busch-Jaeger room temperature controller insert 1094 U-101

Busch & Jaeger Switch Product Range

Technical specifications

Height: 71 mm
Width 71 mm
Depth: 46 mm
Version: On/off
Mounting type: Flush-mounted
Protection class (IP) IP20
Explosion-proof: No.
Contact type: Closer (NO)
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
With display: Yes
External sensor: No.
Type of power supply: Other
Connection: Three-/four-wire
With receiver: No.
Measuring range 5 - .30 ° C
Control characteristics: P
Suitable for heating: Yes
Number of Heating Outputs: 1
Suitable for cooling: No.
Difference value:0 K
Adjustable difference: No.
Sensor/sensor type: Resistance sensor
Temperature reading: Yes
With drinking water circuit: No.
Operation: Rotation
Thermal feedback: Series
With noise level indicator: No.

Type: Busch-Jaeger room temperature controller insert 1094 U-101

Product type: Switch product range

Factory colour: Multicolour

Dim: (W x H x D) 150 x 100 x 150 mm

Content: 1 pc(s)

Depth: 150 mm

Height: 100 mm

Width: 150 mm

Mounting type: Flush mount

Weight: 1000 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3543275 Busch-Jaeger Multicolour 2CKA001032A0524 1 pc(s)

Description

With potential-bound normally open contact.
Switch contact opens when the set temperature is reached.
Without snap fastener
With separate connection for time-controlled changeover to ECO mode (3K).
Class 1
For the connection with hot-water heating the regulator valves are needed without current being disconnected.
Mounting required in UP sockets according to DIN 49073.
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®, Alpha, Impulse
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure

This text is machine translated.
