Name: Busch-Jaeger Multicolour 2CKA001032A0530 1 pc(s)
Brand: Busch-Jaeger
SKU: 3544352

Highlights & Details

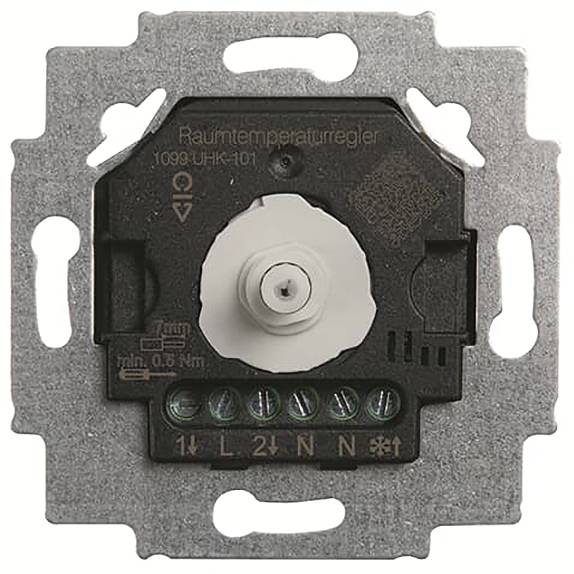

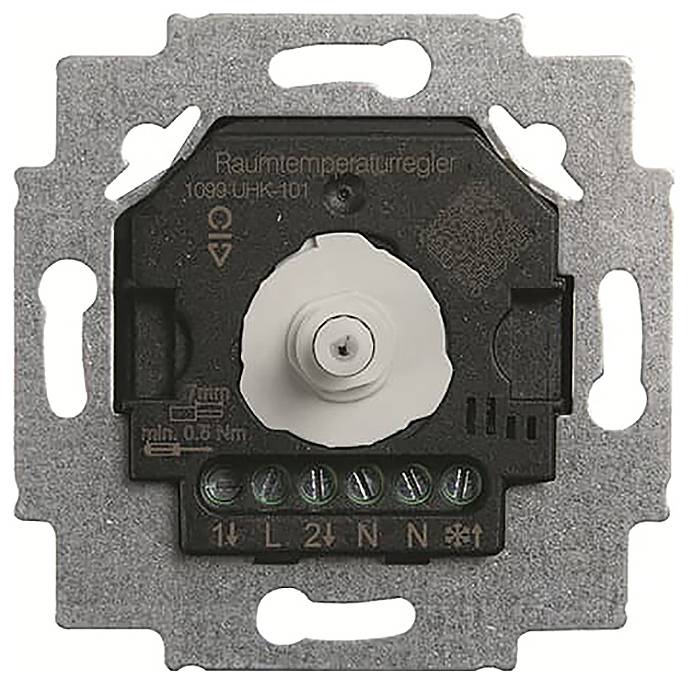

Busch-Jaeger room temperature controller insert 1099 UHK-101

Busch & Jaeger Switch Product Range

Technical specifications

Height: 71 mm
Width 71 mm
Depth: 46 mm
Version: On/off
Mounting type: Flush-mounted
Protection class (IP) IP20
Explosion-proof: No.
Contact type: Closer (NO)
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
With display: Yes
External sensor: No.
Type of power supply: Other
Connection: Three-/four-wire
With receiver: No.
Measuring range 5 - .30 ° C
Control characteristics: P
Suitable for heating: Yes
Number of Heating Outputs: 1
Suitable for cooling: Yes
Difference value:0 K
Adjustable difference: No.
Sensor/sensor type: Resistance sensor
Temperature reading: Yes
With drinking water circuit: No.
Operation: Rotation
Thermal feedback: Series
With noise level indicator: No.
Number of outputs cooling: 1

Type: Busch-Jaeger room temperature controller insert 1099 UHK-101

Product type: Switch product range

Factory colour: Multicolour

Dim: (W x H x D) 150 x 100 x 150 mm

Content: 1 pc(s)

Depth: 150 mm

Height: 100 mm

Width: 150 mm

Mounting type: Flush mount

Weight: 1000 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3544352 Busch-Jaeger Multicolour 2CKA001032A0530 1 pc(s)

Description

With two potential-bound NO contacts.
Switch contact opens when the set temperature is reached.
With external input for switching between heating and cooling (230 V).
Without snap fastener
During cooling operation, pay attention to condensation on the cooled surface at high air humidity (thunderstorm inclination).
The cooling system should be switched back or, if necessary, completely off in time to prevent damage to the cooled surface by moisture.
After commissioning, the switching point accuracy is achieved after approx. 1-2 h operating duration.
To shorten the initial adjustment, it is recommended that the setting temperature be higher (heating) or lower
(Cooling mode) as desired.
For the connection with hot-water heating the regulator valves are needed without current being disconnected.
Mounting required in UP sockets according to DIN 49073.
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®, Alpha
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure

This text is machine translated.

Description

With two potential-bound NO contacts.
Switch contact opens when the set temperature is reached.
With external input for switching between heating and cooling (230 V).
Without snap fastener
During cooling operation, pay attention to condensation on the cooled surface at high air humidity (thunderstorm inclination).
The cooling system should be switched back or, if necessary, completely off in time to prevent damage to the cooled surface by moisture.
After commissioning, the switching point accuracy is achieved after approx. 1-2 h operating duration.
To shorten the initial adjustment, it is recommended that the setting temperature be higher (heating) or lower
(Cooling mode) as desired.
For the connection with hot-water heating the regulator valves are needed without current being disconnected.
Mounting required in UP sockets according to DIN 49073.
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®, Alpha
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure

This text is machine translated.
