Name: Busch-Jaeger Multicolour 2CKA002011A6310 1 pc(s)
Brand: Busch-Jaeger
SKU: 3544353

Highlights & Details

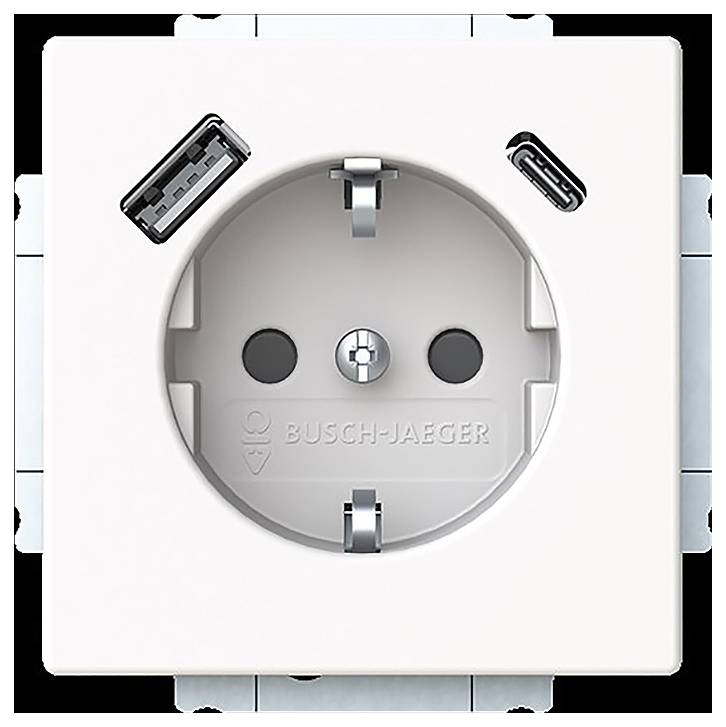

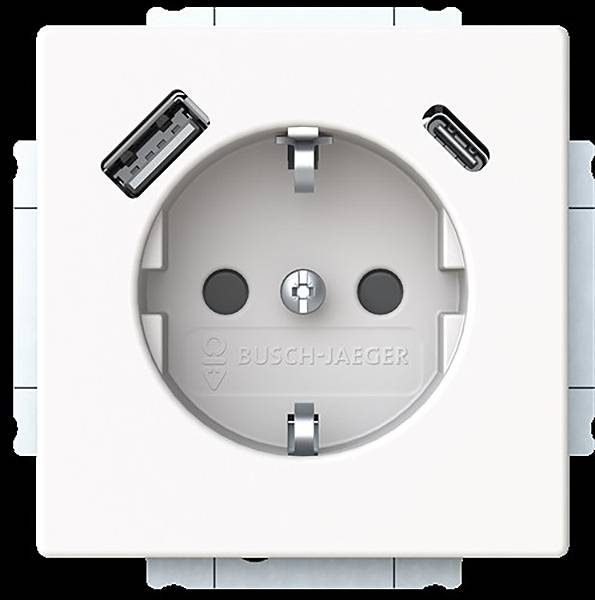

Busch-Jaeger earthing contact socket USB-A+C 20 EUCB2USBAC-884

Busch & Jaeger Switch Product Range

Technical specifications

Design: Socket CEE 7/3 (type F)
Mounting type: Flush-mounted
Material: Plastic
Colour: white
Surface protection: Painted
Impact strength: IK03
Design of surface: Matt
Number of phases: 1
Nominal voltage: 230 V
Nominal current: 16 A
Connection type: Other
With hinged cover: No.
Halogen-free: No.
Rated fault power: 0 mA
With signal lamp: No.
Imprint/marking: Without
Min Depth of the device socket 39.5 mm
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Material quality: Thermoplastic
Mounting type: Claw / screw attachment
Antibacterial treatment: No.
RAL number (similar): 9016
Suitable for protection class (IP): IP20
Number of units: 1
Text field/label area: No.
With orientation light: No.
Device width 71 mm
Device height 71 mm
Device depth 57.8 mm
Lockable: No.
Earthed: Earth clips
Number of active contacts (round): 2
With increased protection against accidental contact: No.
Metallic color: No.
Ejection mechanism: No.
With function light: No.
With micro-fuse: No.
Special power supply: Other
With loop-through function: No.
With On / Off switch: No.
Turned central insert: No.
Number of USB A ports: 1
Number of USB-C ports: 1

Type: Busch-Jaeger earthing contact socket USB-A+C 20 EUCB2USBAC-884

Product type: Switch product range

Factory colour: Multicolour

Dim: (W x H x D) 100 x 100 x 150 mm

Content: 1 pc(s)

Depth: 150 mm

Height: 100 mm

Width: 100 mm

Weight: 190 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3544353 Busch-Jaeger Multicolour 2CKA002011A6310 1 pc(s)

Description

For connecting electrical consumers.
Features: 1x USB-A and 1x USB-C.
The USB connection is used to charge and supply mobile devices via USB cable.
With increased contact protection to VDE 0620 standard.
With electronic short-circuit/overload protection.
No data transmission possible.
Mounting in deep UP sockets required according to DIN 49073.

USB-A output - Support of the charging protocols:
Apple MFI with 2.4 A, BC 1.2 DCP with 1.5 A.

USB-C output - supports the charging protocols:
USB PD (Power delivery) with 5 V / 3 A, Apple MFI with 2.4 A, BC 1.2
DCP with 1.5 A.

Rated current: 2.4 A if a type A jack is used.
Rated current: 1.5 A if both bushings are occupied.

Connection terminals according to VDE 0620-1 approved as connection terminals.
When cleaning the device, use dust protection cap 2098 for the USB-A connection.
Design line: Platform 63, future® linear, Busch-aXcent®, karat®
Design line variant: Future® linear - matt, Busch-aXcent®, Busch-aXcent® pure

This text is machine translated.
