Name: Busch-Jaeger Multicolour 2CKA006710A0032 1 pc(s)
Brand: Busch-Jaeger
SKU: 3546237

Highlights & Details

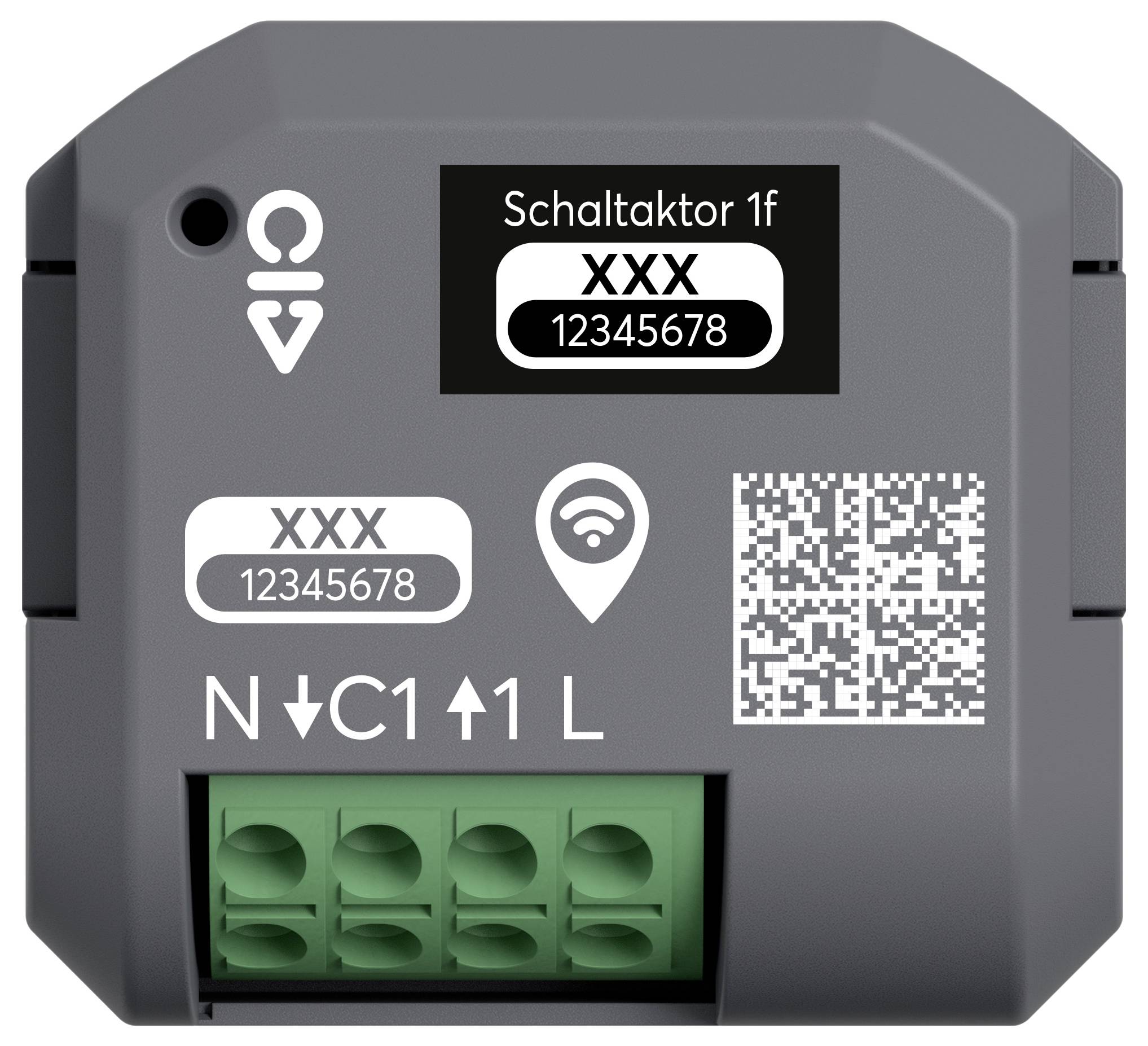

Busch-Jaeger Switch actuator 1-fold UP Wireless 62811 U-WL

Busch & Jaeger Switch Product Range

Technical specifications

Rated current 13 A
Mounting type: Flush-mounted
Protection class (IP) IP20
KNX bus system: No.
Bus system LON: No.
Bus system Powernet: No.
Other bus systems: Other
Rated operating voltage: 230 V
Bus system KNX radio: No.
Bus system wireless bus: No.
With LED display: Yes
Maximum breaking capacity 3000 W
Suitable for C-Load: Yes
Max. Number of switching outputs: 1
Max. switching current 13 A
Different phases can be connected: No.
With bus connection: No.
Bus module removable: No.
Modular expansion option: No.
Min Depth of the device socket 23 mm

Type: Busch-Jaeger Switch actuator 1-fold UP Wireless 62811 U-WL

Product type: Switch product range

Factory colour: Multicolour

Dim: (L x W x H) 400 cm x 300 mm x 200 mm

Content: 1 pc(s)

Height: 200 mm

Length: 400 cm

Width: 300 mm

Weight: 520 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3546237 Busch-Jaeger Multicolour 2CKA006710A0032 1 pc(s)

Description

Wireless flush-mounted actuators for switching lighting systems.
Can be used in Busch-Flextronics® wireless single control as an independent renovation solution or wireless networked room control with up to 32 devices.
Can be integrated into Busch-free@home® wireless via System Access Point with up to 150 devices.
3-conductor connection technology (neutral conductor required).
With push-in spring terminals.
With extension input.
Operation possible via conventional keys (e.g. 2020 US).
Can be combined with extension insert Flex, 64891 U.
Can be combined with Smart switch wireless 62721 U-WL and 62721/01 U-WL.
Remote control via Bluetooth via Smartphone/tablet APP.
Programming via Bluetooth with the Busch-free@home® Next APP or via the web interface of the system access point.
Only mount in conjunction with standard UP equipment boxes to DIN 49073 Part 1.
Product line: Busch-Flextronics® Wireless, Busch-free@home® Wireless, Busch-free@home®

This text is machine translated.
