Name: Busch-Jaeger Red 2CKA001710A4230 1 pc(s)
Brand: Busch-Jaeger
SKU: 3834627

Eco

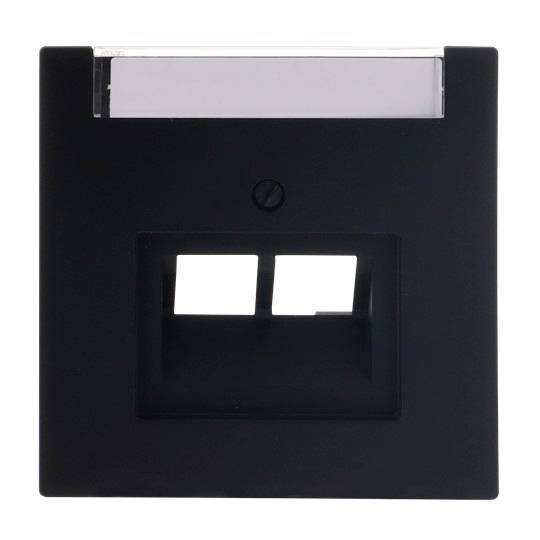

Black wall plate with a top label window and two rectangular data jack openings in the center.

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

2-way central panel, UAE with labeling field 1803-02-45M

Busch & Jaeger Switch Product Range

Technical specifications

Design: Protection contact CEE 7/3 (type F)
Imprint/marking: Without
Mounting type: Claw / screw attachment
Material quality: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface design: Glossy
Antibacterial treatment: No.
Mounting type: Flush-mounted
Transparent: No.
Min Depth of the device socket 31 mm
Device width 71 mm
Device height 71 mm
Device depth 45 mm
With orientation light: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
With hinged cover: No.
Nominal voltage: 250 V
Frequency: 50 Hz
Connection type: Plug-in terminal
Number of active contacts (round): 2
With signal lamp: No.
Number of sockets: 1
Mains sockets with phase separation: No.
With increased protection against accidental contact: No.
Text field/label area: No.
Metallic color: No.
Lockable: No.
Ejection mechanism: No.
Insulated mounting: No.
With function light: No.
Surge protection: No.
Fault current protection: No.
With micro-fuse: No.
With loop-through function: Yes
With On / Off switch: No.
Turned central insert: No.
With Wi-Fi signal repeater: No.
With built-in Bluetooth speaker: No.
For "difficult conditions" according to VDE: No.
Earthed: Earth clips
Special power supply: Without

Type: 2-way central panel, UAE with labeling field 1803-02-45M

Product type: Main panel

Factory colour: Red

Nominal voltage: 250 V

Nominal current: 16 A

: IK03

Content: 1 pc(s)

Similar RAL: 3020

Material: Plastic

Mounting type: Flush mount

Phases: 1

UKCA: yes

Eco badge reference: Cradle to Cradle certified

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3834627 Busch-Jaeger Red 2CKA001710A4230 1 pc(s)

Description

As cover for 2-way UAE inserts. Label area dimensions 50 x 9 mm. Design line: Busch-art linear® design line Variant: Busch-art linear®, Busch-art linear® - with decorative ring, bush-art linear® - real material Dimensions Label field: 50 x 9 mm
