Eco
Busch-Jaeger Red 2CKA001724A4440 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

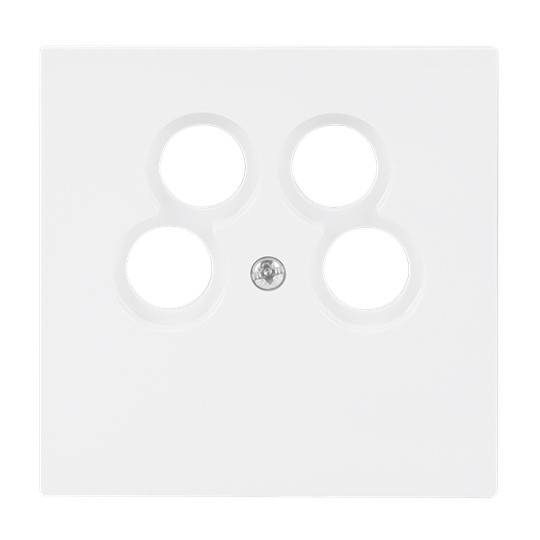

Central disc antenna sockets 4-way 1743/10-04-44G
- Busch & Jaeger Switch Product Range
Technical specifications
- Mounting method: Clamp mounting
- Material quality: Thermoplastic
- Halogen-free: Yes
- Surface protection: Untreated
- Surface design: Glossy
- Antibacterial treatment: No.
- Transparent: No.
- Mounting direction: Horizontal and vertical
- With hinged cover: No.
- Mounting width 54 mm
- Text field/label area: No.
- Number of units: 1
- Flush mounting: Yes
- Mounting height 54 mm
- Number of units horizontal: 1
- Number of units vertical: 1
- Number of modules horizontal (for modular design): 1
- Number of vertical modules (for modular design): 1
- With mounting frame: No.
- Suitable for underground passage box: No.
- Suitable for device installation channel: Yes
- Suitable for panel mounting: No.
- Diameter boring (opening): 71 mm
- Type
Central disc antenna sockets 4-way 1743/10-04-44G
- Product type
Main panel
- Factory colour
Red
IP20
IK03
- Dim
(W x H x D) 81 x 81 x 11 mm
- Content
1 pc(s)
- Similar RAL
3020
- Depth
11 mm
- Height
81 mm
- Width
81 mm
- Material
Plastic
- Eco badge reference
Cradle to Cradle certified
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3834420 Busch-Jaeger Red 2CKA001724A4440 1 pc(s)
Description
As a cover for 4-way antenna socket: -SAT400/EAS/DC, -EAS 405, 413 DAS, -Fa Ancaro. Design line: Busch-art linear® design line Variant: Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material
