Busch-Jaeger Studio white (similar to RAL 9016) 2CKA001753A0400 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Central disc anthracite cover 2561-81
- Busch & Jaeger Switch Product Range
Technical specifications
- Usage: Other
- Mounting method: Fixing with screw
- Material quality: Thermoplastic
- Halogen-free: Yes
- Surface protection: Painted
- Design of surface: Matt
- Antibacterial treatment: No.
- Mounting type: Flush-mounted
- Transparent: No.
- Min Depth of the device socket 32 mm
- Assembly: Central plate
- Device width 63 mm
- Device height 63 mm
- Device depth 18.5 mm
- Bearing ring: No.
- With dust protection: No.
- With hinged cover: No.
- Outlet direction: Straight
- Labelling field: Without labeling field
- With imprint: No.
- With sockets/couplings: No.
- With strain relief: No.
- Shielded sockets: No.
- Shielded housing: No.
- Connector strip: No.
- With illumination: No.
- Type
Central disc anthracite cover 2561-81
- Product type
Main panel
- Factory colour
Studio white (similar to RAL 9016)
- Content
1 pc(s)
- Similar RAL
9016
- Material
Plastic
- Mounting type
Flush mount
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3834333 Busch-Jaeger Studio white (similar to RAL 9016) 2CKA001753A0400 1 pc(s)
Description

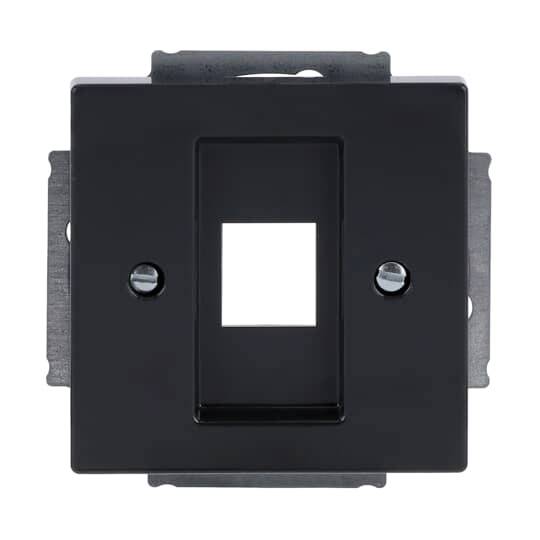

As cover for 1 modular jack insert. Suitable for art. no. 0210, 0211. Design line: Platform 63, future® linear, Busch-aXcent®, karat®, Busch-dynasty® design line Variant: Busch-aXcent®, Busch-aXcent® pure
